It’s the only true motion simulator in its price and size class, the only one capable of moving displays with the platform, the only one providing true g-force loads, and the only two-actuator system with effective surge and sway axes that outperform pro-level 6DOF systems.
The 202 is in a class of its own – at any price.
The 202 is a two-actuator, hybrid multi-axis system that provides 5-axis performance in a compact form factor.
Roll range of +/- 30 degrees achieves detailed, fine control over lateral load cues, and massively fast accelerations and a head-centered roll point deliver those load cues on time and with unprecedented quality, not just for a system in the 202’s price and size category, but relative to the best motion simulators available. And induced surge and sway axes of +/- 4″ and +/- 12″ outperform most 6DOF platforms.

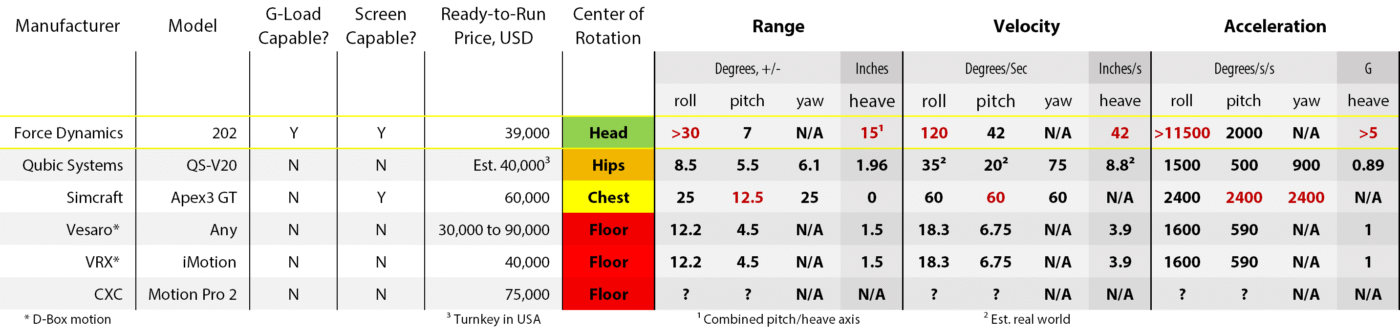

Here’s how the 202 stacks up against its competition:
Conventional platforms stack the motion system on top of the actuators, swinging your head around like a bucket on the end of a rope. The conventional wisdom says that too much motion is bad, but that’s because conventional platforms do motion badly. The 202’s roll center is at near-head-level, yielding clean, precise lateral g force cues with no unintended forces.

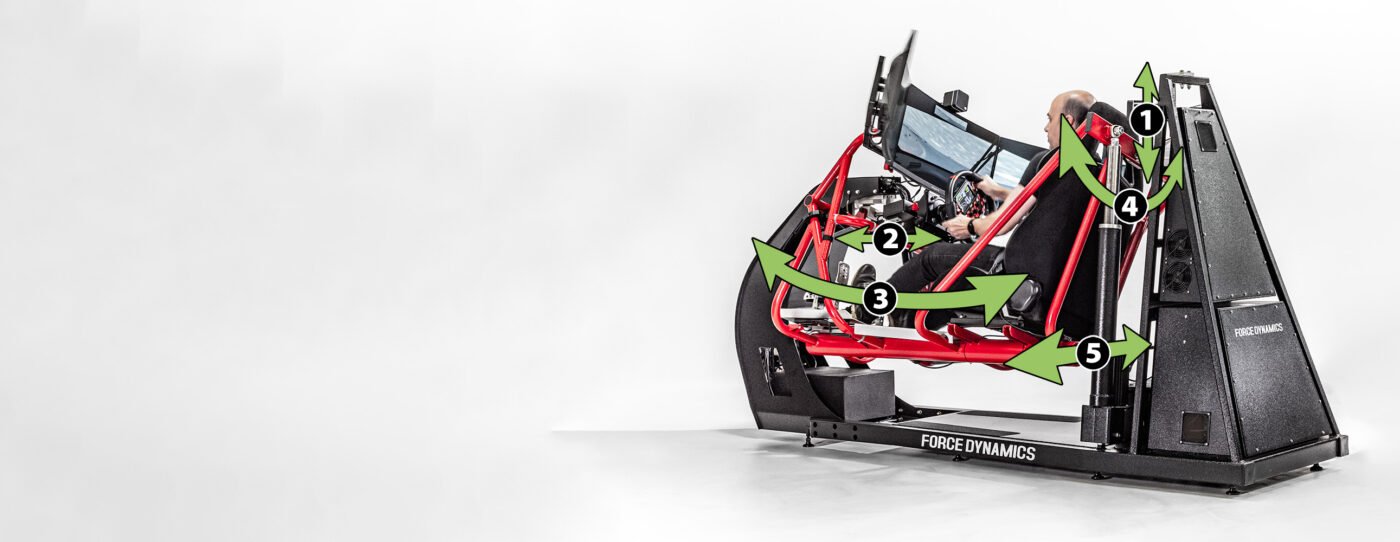

What’s more, the 202’s layout means it drives like a multi-axis platform. The ultra-high roll center means you actually move left and right – an induced sway axis – when cornering left and right, and the strut geometry also drives an induced surge axis. You get more side-to-side and fore-aft motion in the “2DOF” 202 than in six-axis systems costing five times as much.
202 Motion Platform Only
202 RTR Platform
900w 5.1 audio
