CSL Cockpit P1 V2 Bundle (5 Nm)
$1,569.00
3-Year WarrantyBUNDLE CONTENTS:
-
1x CSL Cockpit SeatExpected availability: 16 Mar ’26 -
1x CSL DD QR2 (5 Nm) -
1x CSL Pedals -
1x CSL Steering Wheel P1 V2 (QR2 Lite) -
1x CSL Cockpit V1.5Expected availability: 01 Apr ’26
CSL Cockpit P1 V2 Bundle (5 Nm)
Unbelievably strong
GT driving position
Consistency is everything
Step into a rig that feels the same every time you drive, so you can focus on your lap times.
Easy to assemble, built to last
The frame is made of aluminium tubing and steel brackets, with easy-to-follow instructions to assemble with the included tools.
Accessories
Choose your optional accessories : CSL Cockpit Seat, CSL Cockpit Shifter Holder, and CSL Cockpit Monitor Holder are all specially designed to fit the CSL Cockpit (all sold separately, more accessories coming soon).
MULTI-PURPOSE DESIGN.
TACTILE, DURABLE.
CSL DD. Now with QR2.
Bring the race track to your home with exceptional Direct Drive performance in a compact design. Now including QR2, you’ll experience even more precision and detail in the force feedback.
FANATEC® Direct-Drive technology.
When the steering wheel is directly mounted to the motor shaft, there’s no belt or gear drive to dilute the force feedback effects. Choose Direct Drive by Fanatec and experience your favourite racing simulations as the developers intended.
Plug and Play.
Our strong relationship with game developers means the CSL DD has broad compatibility and consistent behaviour across many popular titles. The Standard Tuning Menu has been simplified, allowing beginners to start quickly without having to worry about settings. The Advanced Tuning Menu remains for enthusiasts.
Pedal to the metal.
The CSL Pedals are solidly built from steel. Precise and durable sensors allow you to stay in control with smooth throttle and brake inputs.
Heavy steel construction.
The stability of the all-metal design means it is built to last. The stiffer spring on the brake pedal combined with the PU foam damper provides a realistic, progressive feeling.
Magnetic sensors.
Both the throttle and brake axes use precision Hall-effect sensors. By measuring pedal position with magnets, the system is contactless, meaning no wear on the sensor and consistent performance.
Features
CSL Cockpit
- Super strong and lightweight trapeze chassis
- Aluminum tubing
- Steel brackets
- Black and yellow powder coating
- Designed specifically for Fanatec Direct Drive Wheel Bases with optimal side mounting
- Strong pedal plate for consistent control on load cell brakes
- CSL Cockpit Seat designed to match the style of the CSL Cockpit
- Supports most standard racing seats (including the SPARCO Pro 2000 QRT)
- Pedals angle and distance adjustment
- Innovative Wheel Base mounting bracket design
- Three height options
- Stepless adjustable angle (0 to 30°)
- Stepless adjustable distance to seat (80 mm range)
- Can be inverted to achieve an ideal karting position
- Optional monitor holder (sold separately)
- Optional shifter holder (sold separately)
- Hollow tubing allows for tidy cable management
- Included tube caps with cable holes.
- Two types of protective foot pads (felt and rubber) to suit carpet or hard flooring
- Compact packaging for ease of shipping.

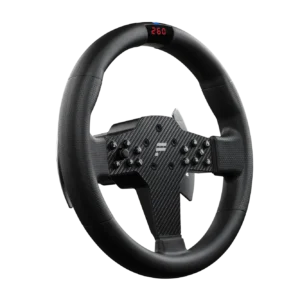

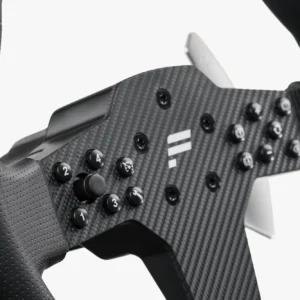

CSL Steering Wheel P1 V2:
- Realistic size, suitable for many driving styles (300 mm)
- Rubberised wheel rim with improved ergonomics
- Integrated RevStripe™, which is a combined centre stripe and an engine RPM indicator, using a multi-colour LED
- Three-digit LED display smoothly integrated into the wheel rim below the RevStripe™ allows telemetry data such as speed or gears to be displayed in compatible games or third-party software
- Metal shifter paddles, snap-dome-activated “click” feeling
- 4-way direction pad with push button
- Tuning functions with LED display to adjust settings independent from the game and during gameplay (see description of compatible wheel base/racing wheel for details)
- QR2 Lite Wheel-Side preinstalled

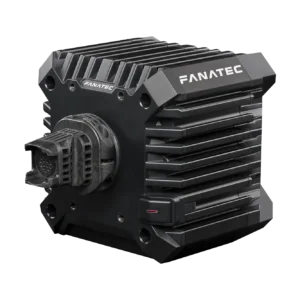

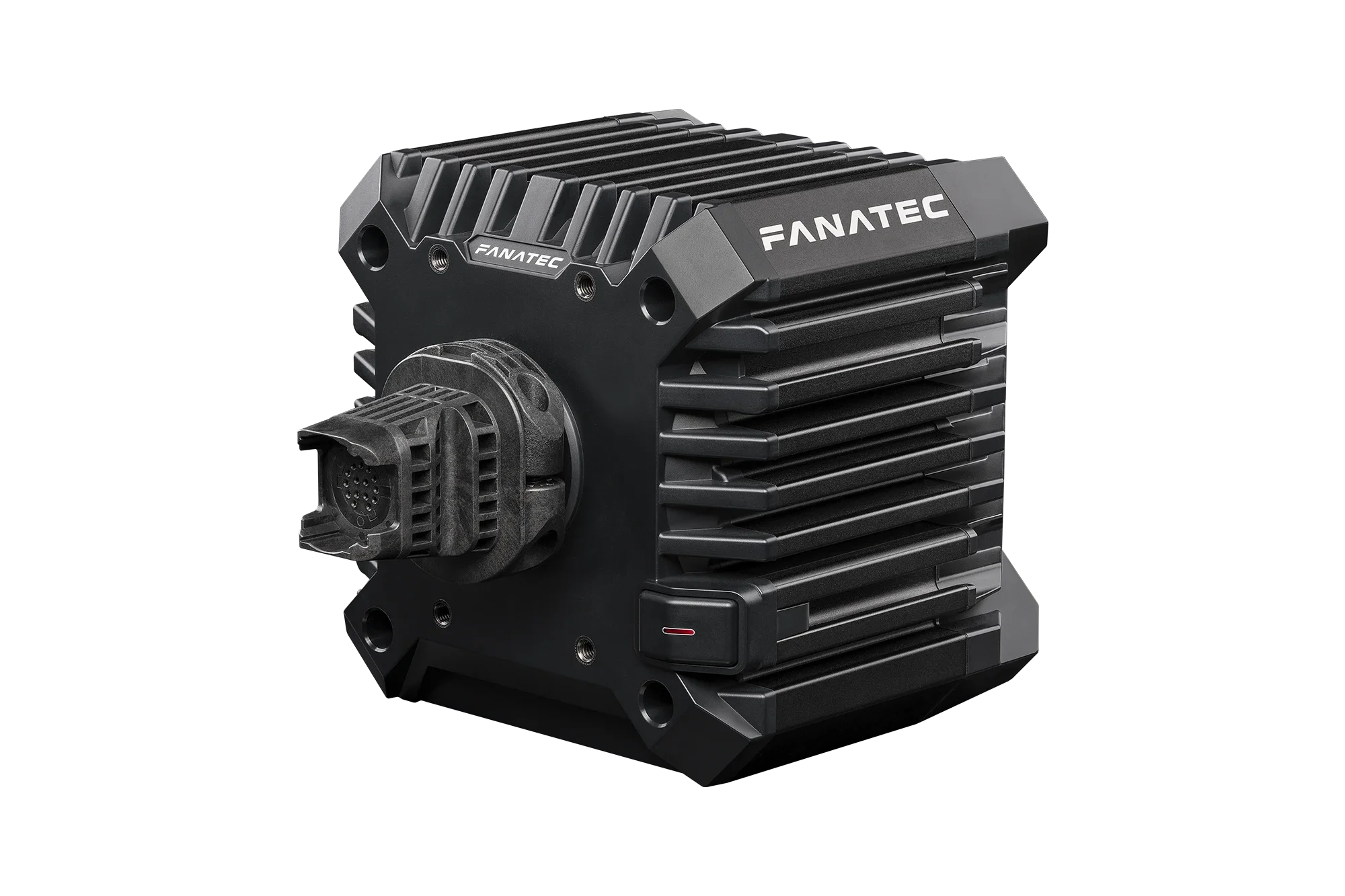

CSL DD QR2:
- Direct-Drive system delivers instant, detailed force feedback
- Linear, consistent performance (5 Nm peak torque)
- Optional Boost Kit 180 (sold separately) unlocks maximum strength (8 Nm peak torque)
- Patented, exclusive FluxBarrier technology optimises motor efficiency and smoothness
- Full Fanatec SDK support ensures game compatibility out of the box for all major racing games
- Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
- Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
- High-resolution (contactless) Hall-position-sensor, same as Podium Series
- Steering axis made from carbon fibre-enhanced composite
- Fanless: wheel base housing is made from aluminium (passive heat sink, core structural component) with composite end caps
- Rotation: 2520 degrees (electronically limited, adjustable)
- Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data to steering wheels
- QR2 quick release system
- Motorsport-derived quick release
- Tapered shape naturally ensures a tight fit
- Carbon fibre-reinforced polyamide construction
- Exchangeable
- T-nut rail system on sides and bottom for easily adjustable hard-mounting
- Optional table clamp (sold separately), supports 5 to 60 mm table thickness

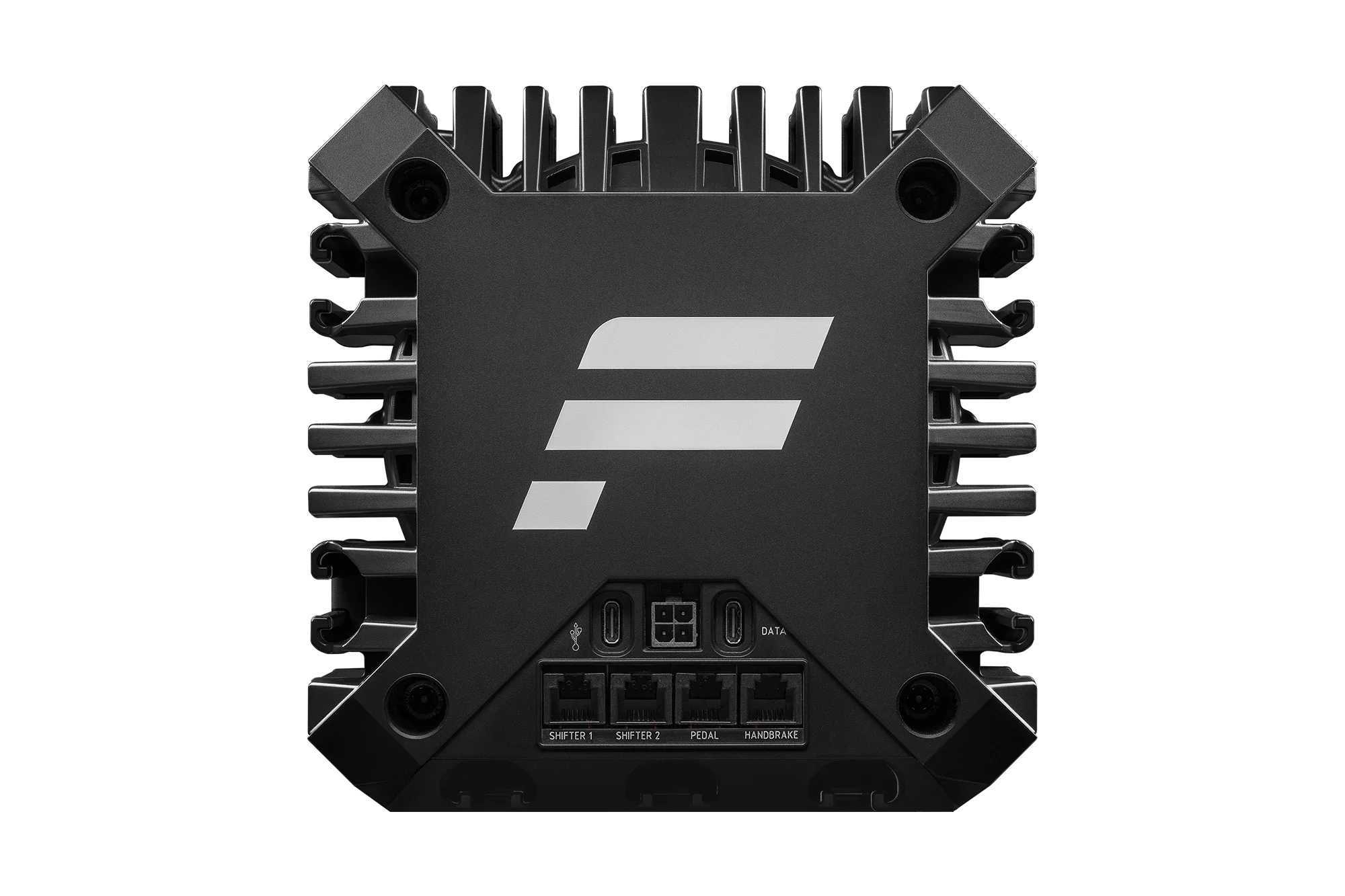

- Ports:
- Power supply
- USB-C to PC / console
- Fanatec DataPort-C
- Shifter 1
- Shifter 2 (Sequential only)
- Pedal
- Handbrake
- Front-mounted threaded inserts for Fanatec accessories (e.g. ClubSport Static Shifter Paddles, available separately). Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.

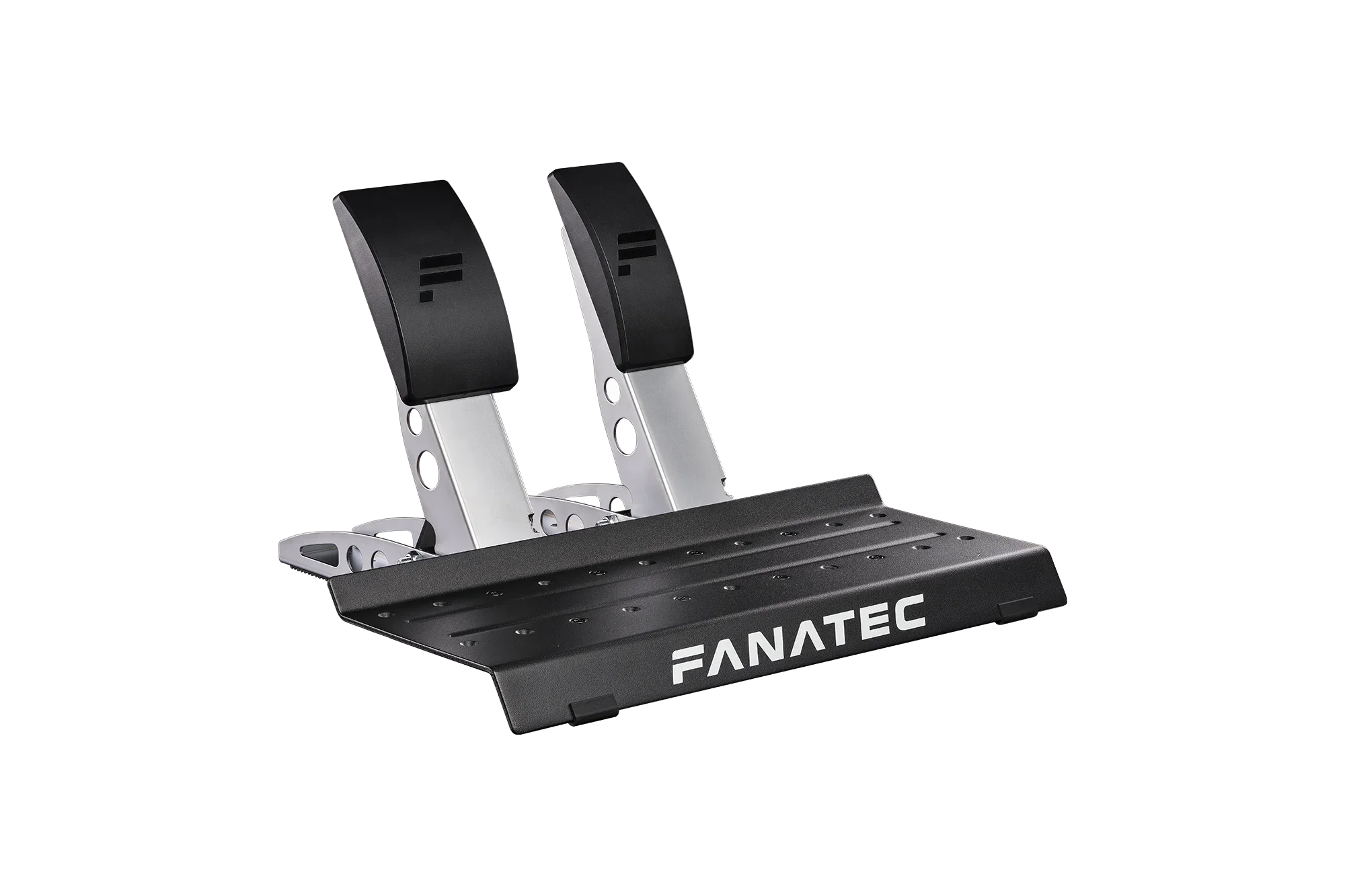

CSL Pedals:
- Two-pedal set (throttle and brake), upgradeable to three pedals (upgrade kits sold separately)
- All-metal construction (excluding pedal faces). Pedals are made from heavy steel, which helps to prevent the set from sliding on the floor (if not hard-mounted to a rig)
- Optional anodised aluminium pedal plates (CSL Pedals Tuning Kit, sold separately)
- Contactless Hall sensors (12-bit) on both brake and throttle for high precision and durability
- Brake pedal spring is stiffer than throttle pedal spring, PU foam damper adds additional resistance for progressive braking feel
- Upgrade to a three-pedal configuration with Clutch Kit or Load Cell Kit (sold separately)
- CSL Pedals Clutch Kit provides a third pedal for the lowest price
- CSL Pedals Load Cell Kit also provides a third pedal, and upgrades the brake and electronics
- Pedal position can be adjusted sideways along heel rest
- Height-adjustable pedal faces
- Modular design means inverted mounting to a rig is possible
- Vertical rear plates allow pedals to be easily braced against a wall or other vertical surface
- Pearl chrome plating on pedal bases and arms
- Black powder coating on heel rest
What’s Included
- CSL Cockpit
- CSL Cockpit Seat
- CSL Steering Wheel P1 V2
- QR2 Lite Wheel-Side (preinstalled)
- CSL DD Wheel Base
- QR2 Lite Base-Side (preinstalled)
- CSL Pedals
