CSL DD Ready2Race GT3 Bundle (5 Nm)
$758.00
3-Year WarrantyBUNDLE CONTENTS:
-
1x CSL DD QR2 (5 Nm) -
1x CSL Pedals -
1x CSL Steering Wheel GT3
CSL DD Ready2Race GT3 Bundle (5 Nm)
Built for GT3.
Refined design.
Realistic magnetic shifters, multi-purpose paddle system.
Use the dual-clutch paddle system as the ultimate weapon to nail every race start. The advanced bite-point mode allows you to determine the optimal bite-point before the start of the race and initiate the perfect launch every time.
Never miss a shift.
The magnetic shifter mechanism is custom designed for superior tactile response. Its rocker-style paddle, precision-cut from a single block of anodized aluminum, allows intuitive one-handed up and down-shifting.
Multi-functional analog paddles.
Clutch bite-point mode, handbrake mode, brake/throttle mode, and mappable axis mode – all instantly available with a flick of the center switch. Brake/throttle mode allows driving without pedals.
FANATEC® DIRECT-DRIVE TECHNOLOGY.
PLUG AND PLAY.
TORQUE TO THE HANDS.
The 100% custom motor was developed in Germany specifically for sim racing. It delivers sensational performance thanks to patented FluxBarrier technology, communicating the nuances of force feedback detail to your hands with remarkable clarity.
EFFICIENT AND RESPONSIVE.
The efficiency of the CSL DD motor technology means dynamic force-feedback performance is contained in a small footprint. This is also the first industrial motor to feature a carbon fibre composite motor shaft, which increases responsiveness and acceleration significantly due to low rotational masses.
UP TO 8 NM OF TORQUE.
Standard peak torque is 5 Nm, with the Boost Kit 180 (sold separately) unlocking the full 8 Nm. This high level of torque can be sustained without the need for active cooling, with the extruded and CNC-machined aluminium casing acting as the structural chassis as well as the heatsink.
Heavy steel construction.
Magnetic sensors.
Three ways to upgrade.
Upgrade your CSL Pedals with metal pedal faces (optional), the Clutch Kit (optional), or the Load Cell Kit (all kits sold separately). The Clutch Kit provides a third pedal at the lowest possible price. The Load Cell Kit is an alternative to the Clutch Kit, also providing a third pedal, while upgrading the brake and main electronics.
Clutch Kit or Load Cell Kit.
The CSL Pedals Clutch Kit (sold separately) adds a dedicated clutch pedal, with a stiffer spring than the throttle and the same wider pedal face as the brake. The CSL Pedals Load Cell Kit (sold separately) is the ultimate upgrade for realistic braking feel. When upgrading to the Load Cell Kit, the standard brake pedal can be used as the clutch.
Metal pedal faces.
Transform the appearance of the CSL Pedals with durable, anodised aluminium pedal faces (sold separately). The throttle pedal face is extended, allowing for a comfortable heel-and-toe technique.
Features

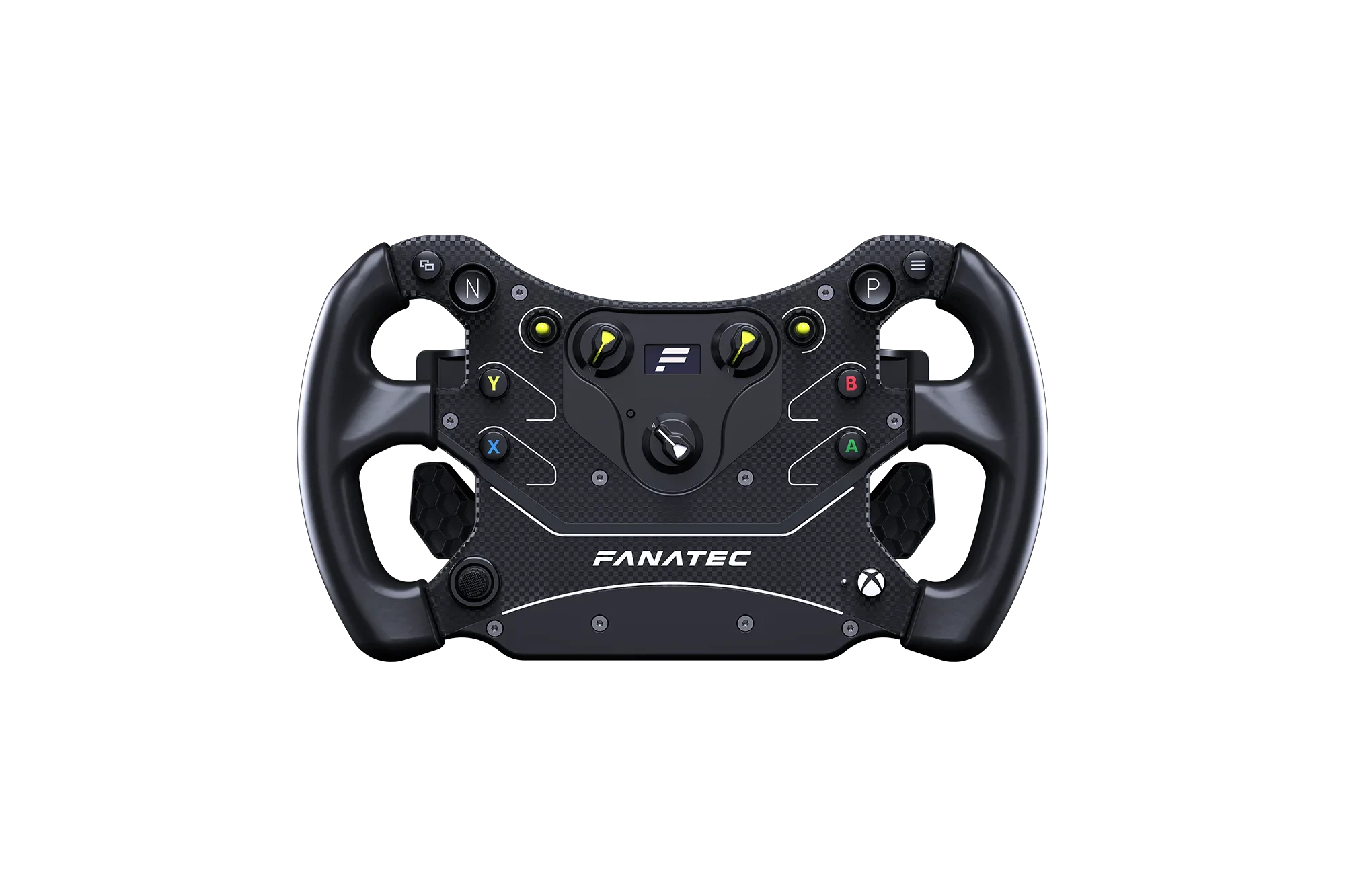

CSL Steering Wheel GT3
- Full-size GT3-style wheel (300 mm diameter)
- Designed for the Xbox Series X|S and Xbox One® consoles
- Custom designed magnetic shifters for superior tactile response
- Rocker-type paddle allows up and down-shifts with one hand (possible on both sides)
- Made from anodized aluminum, precision cut with diamond texture grips
- Two analog paddles reinforced with honeycomb structure, supporting four switchable modes:
- Clutch bite-point mode (standard/advanced)
- Clutch/handbrake mode
- Brake/throttle mode (allows driving without pedals connected)
- Mappable axis mode
- Clutch bite-point system can be used in any game with analog clutch input
- 1”, 128 x 64 resolution OLED display (white)
- Two 2-way toggle switches
- Multi-Position Switches: two 12-position switches, rotary encoder mode
- 7-way FunkySwitch: left, right, up, and down directional inputs, push button, and rotary encoder
- Two high-bezel snap-dome buttons with laser-engraved P and N lettering. Realistic actuation force of ~2500 gf.
- Seven standard buttons with removable button caps
- Xbox and racing-style button caps included
- Six face buttons compatible with Button Caps and Sticker Set (sold separately)
- Tuning Menu button for instant access to force feedback and other Fanatec hardware adjustments
- Overmolded rubber grips with 50 Shore A hardness
- Xbox® mode LED indicator
- Weight: 1290 g (including quick release)
- QR2 Lite Wheel-Side (preinstalled)
- Carbon fiber-reinforced composite
- Spring-loaded locking pin mechanism and tapered shape naturally ensures a tight fit
- Can be attached to Base without touching the sleeve mechanism
- Allows maximum torque on ClubSport DD and Podium DD bases

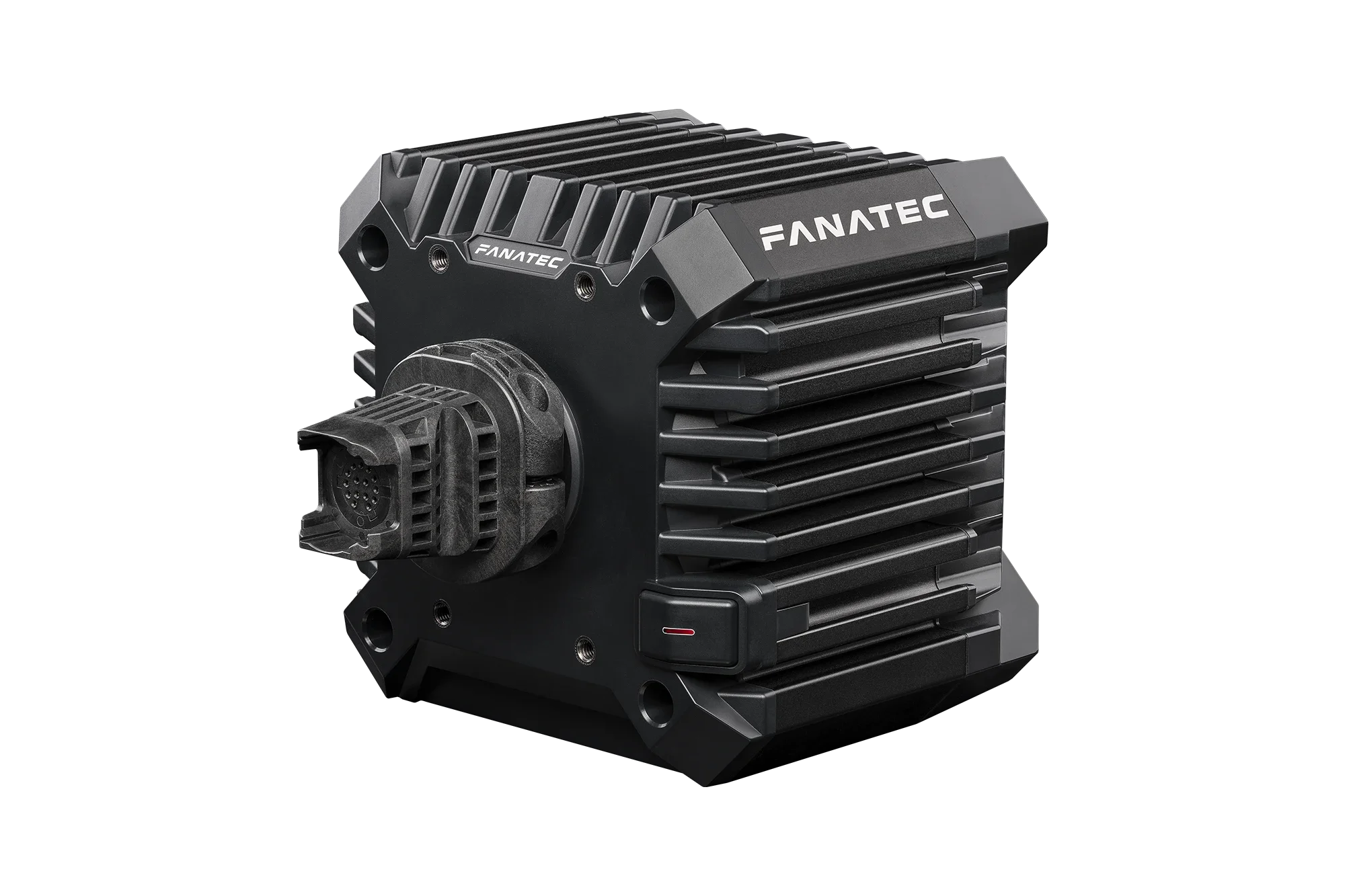

CSL DD QR2
- Direct-Drive system delivers instant, detailed force feedback
- Linear, consistent performance (5 Nm peak torque)
- Optional Boost Kit 180 (sold separately) unlocks maximum strength (8 Nm peak torque)
- Patented, exclusive FluxBarrier technology optimises motor efficiency and smoothness
- Full Fanatec SDK support ensures game compatibility out of the box for all major racing games
- Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
- Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
- High-resolution (contactless) Hall-position-sensor, same as Podium Series
- Steering axis made from carbon fibre-enhanced composite
- Fanless: wheel base housing is made from aluminium (passive heat sink, core structural component) with composite end caps
- Rotation: 2520 degrees (electronically limited, adjustable)
- Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data to steering wheels
- QR2 quick release system
- Motorsport-derived quick release
- Tapered shape naturally ensures a tight fit
- Carbon fibre-reinforced polyamide construction
- Exchangeable
- T-nut rail system on sides and bottom for easily adjustable hard-mounting
- Optional table clamp (sold separately), supports 5 to 60 mm table thickness
- Ports:
- Power supply
- USB-C to PC / console
- Fanatec DataPort-C
- Shifter 1
- Shifter 2 (Sequential only)
- Pedal
- Handbrake
- Front-mounted threaded inserts for Fanatec accessories (e.g. ClubSport Static Shifter Paddles, available separately). Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.

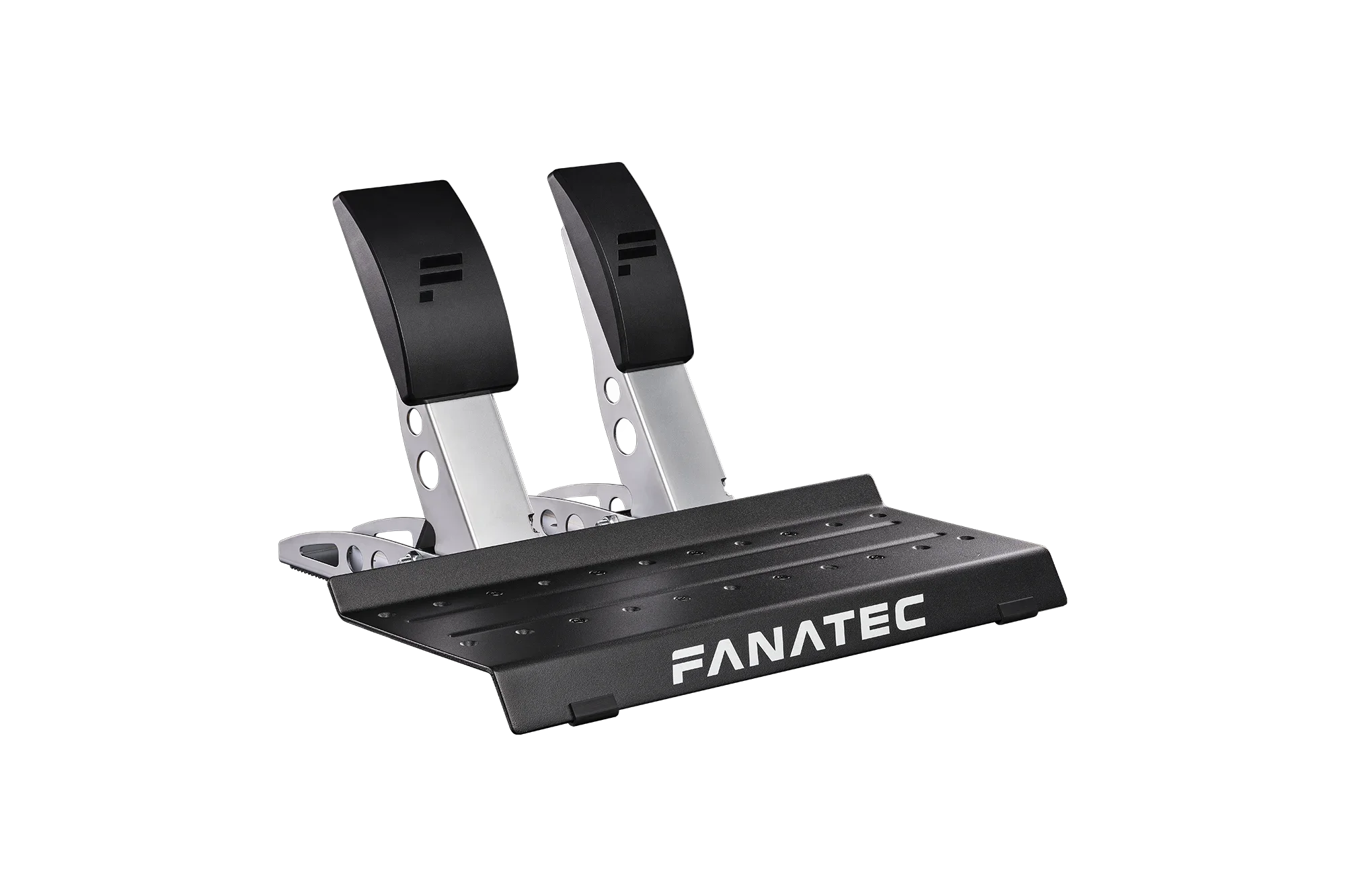

CSL Pedals
- Two-pedal set (throttle and brake), upgradeable to three pedals
- All-metal construction (excluding pedal faces). Pedals are made from heavy steel, which helps to prevent the set from sliding on the floor (if not hard-mounted to a rig)
- Optional anodised aluminium pedal plates
- Contactless Hall sensors (12-bit) on both brake and throttle for high precision and durability
- Brake pedal spring is stiffer than throttle pedal spring, PU foam damper adds additional resistance for progressive braking feel
- Upgrade to a three-pedal configuration with Clutch Kit or Load Cell Kit
- CSL Pedals Clutch Kit provides a third pedal for the lowest price
- CSL Pedals Load Cell Kit also provides a third pedal, and upgrades the brake and electronics
- Pedal position can be adjusted sideways along heel rest
- Height-adjustable pedal faces
- Modular design means inverted mounting to a rig is possible
- Vertical rear plates allow pedals to be easily braced against a wall or other vertical surface
- Pearl chrome plating on pedal bases and arms
- Black powder coating on heel rest
- Pedals connect directly to all compatible Fanatec Wheel Bases
Compatibility
Peripherals
The CSL DD QR2 Wheel Base is compatible with:
- All Fanatec Steering Wheels (with QR2 Lite Wheel-Side, QR2 Wheel-Side, or QR2 Pro Wheel-Side)
- All Fanatec Pedals (adapter cables might be required on pedals without RJ12 connection)
- ClubSport Shifter (including ClubSport Static Shifter Paddles)
- ClubSport Handbrake (all versions)
- All Fanatec Cockpits
- CSL DD Table Clamp
- ClubSport DD Table Clamp
- ClubSport Table Clamp V2
- Boost Kit 180
- Podium Mounting Brackets (the CSL DD includes M6 T-nuts for side-mounting; the Podium Mounting Brackets require the use of M6 bolts and washers)
Platforms
- PC: The CSL DD QR2 Wheel Base is compatible with PC when combined with a Fanatec Steering Wheel. Check the individual Steering Wheel product pages for Wheel Base compatibility.
- Xbox®: The CSL DD QR2 Wheel Base becomes compatible with Xbox One® and Xbox Series X|S when used with any Fanatec Xbox-licensed Steering Wheel.
- PlayStation®: The CSL DD QR2 Wheel Base is not compatible with any PlayStation® console and cannot be upgraded to achieve compatibility.
What’s Included
CSL Steering Wheel GT3
- CSL Steering Wheel GT3
- QR2 Lite Wheel-Side preinstalled
CSL DD QR2
- CSL DD Wheel Base
- QR2 Lite Base-Side (Type-C) preinstalled
- 90W power supply (regional)*
- 4x T-nuts for rail mount system
- USB cable (Type-C to Type-A)
- Quick Guide
CSL Pedals
- Throttle pedal unit
- Brake pedal unit with PU foam damper
- Heel rest
- 1x Wheel Base connection cable RJ12/RJ12 (~2m)
- 1x Torx key
- M4x12 mounting bolts (only to mount pedals to heel rest)
- Hard-mounting spacers
- Replacement rubber feet (floor protection)
- 1x Quick Guide
Special Notes
- Not suitable for children. The fast movements of the steering wheel and strong torque can be dangerous. Please read the safety instructions.
- The QR2 Lite Base-Side (Type-C) included with the CSL DD QR2 is compatible with all versions of the QR2 Wheel-Side (Lite, Regular, Pro) and does not cause any torque restriction, even with the Boost Kit 180. Click here for all the details about QR2.
- To enable features such as Steering Wheel LEDs in some titles, it may be necessary to switch the CSL DD to Compatibility Mode. This can also help with titles not working in standard PC mode. Check the Quick Guide for details.
- Only the standard 90W power supply or the Boost Kit 180 can be used with this Wheel Base. The use of any other power supply will void the Wheel Base warranty, is potentially dangerous and can lead to serious injury or death.
