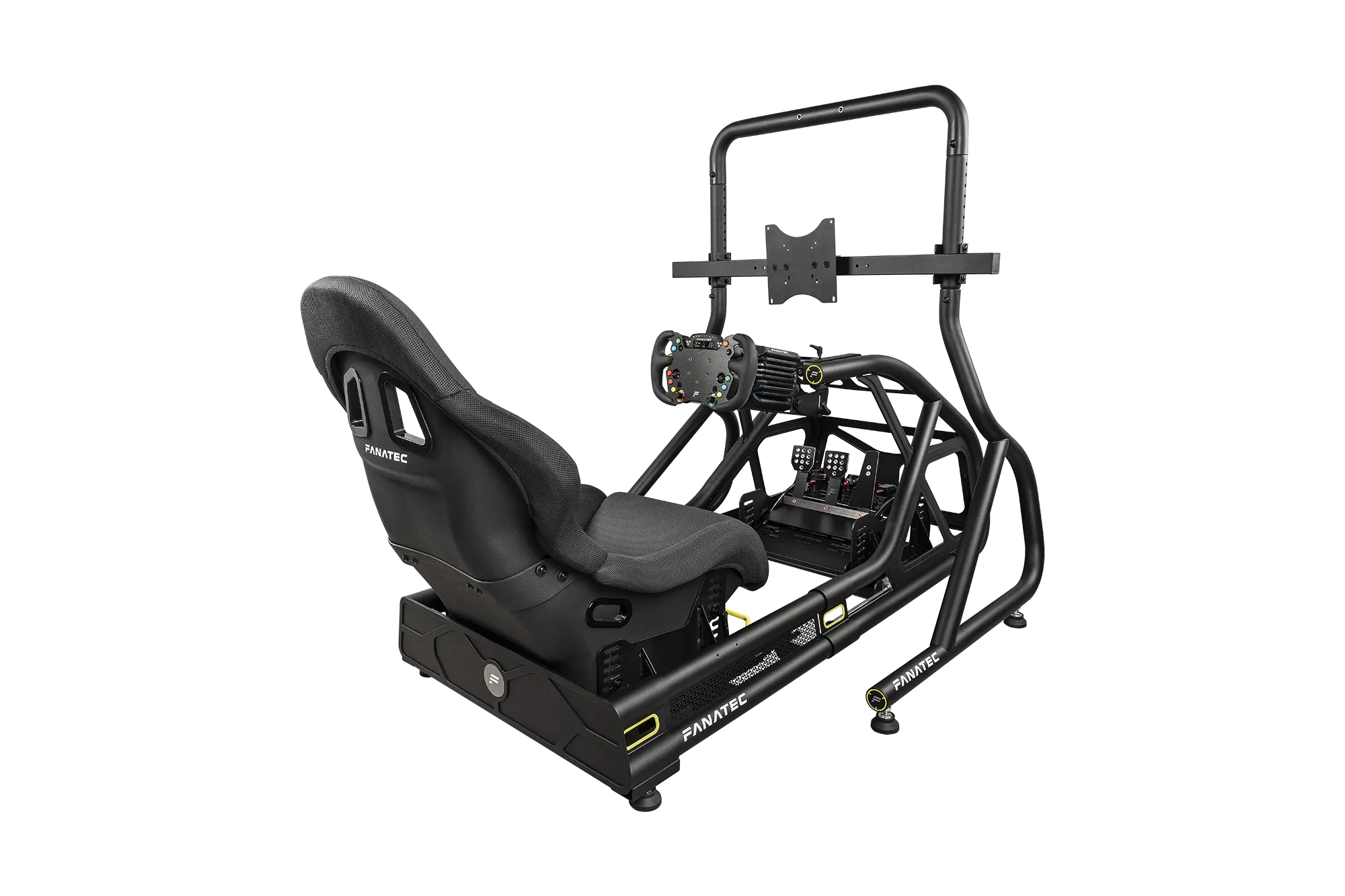

ClubSport GT Cockpit GT3 Endurance Bundle – Black (15 Nm)

ClubSport GT Cockpit GT3 Endurance Bundle – Black (15 Nm)

Name: ClubSport GT Cockpit GT3 Endurance Bundle – Black (15 Nm) - Nextlevel Sims
Price: 4904.00 AUD
Availability: InStock

$4,904.00

The ClubSport GT Cockpit GT3 Endurance Bundle uses the 15 Nm ClubSport DD+, the ClubSport Steering Wheel GT3 Endurance for Xbox, and ClubSport Pedals V3 – ideal for installation on the ClubSport GT Cockpit. This combination of hardware is compatible with Windows PC, PS5 and PS4, and Xbox Series X|S and Xbox One. Add optional accessories to enhance your rig and take the experience to the next level.

3-Year Warranty

BUNDLE CONTENTS:

1x GT Cockpit Seat (Black)
1x GT Cockpit Monitor Stand (Black)
1x ClubSport Universal Hub V2 for XBOX
1x ClubSport Wheel Rim GT3 Endurance
1x ClubSport Pedals V3
1x Podium Button Module Endurance

Expected availability: 26 Mar ’26
1x QR2 Wheel-side
1x ClubSport GT Cockpit Box 1 (Black)

Categories: BUNDLE, Fanatec

Description
Reviews (0)

ClubSport GT Cockpit GT3 Endurance Bundle – Black (15 Nm)

mmerse yourself in GT3 racing.

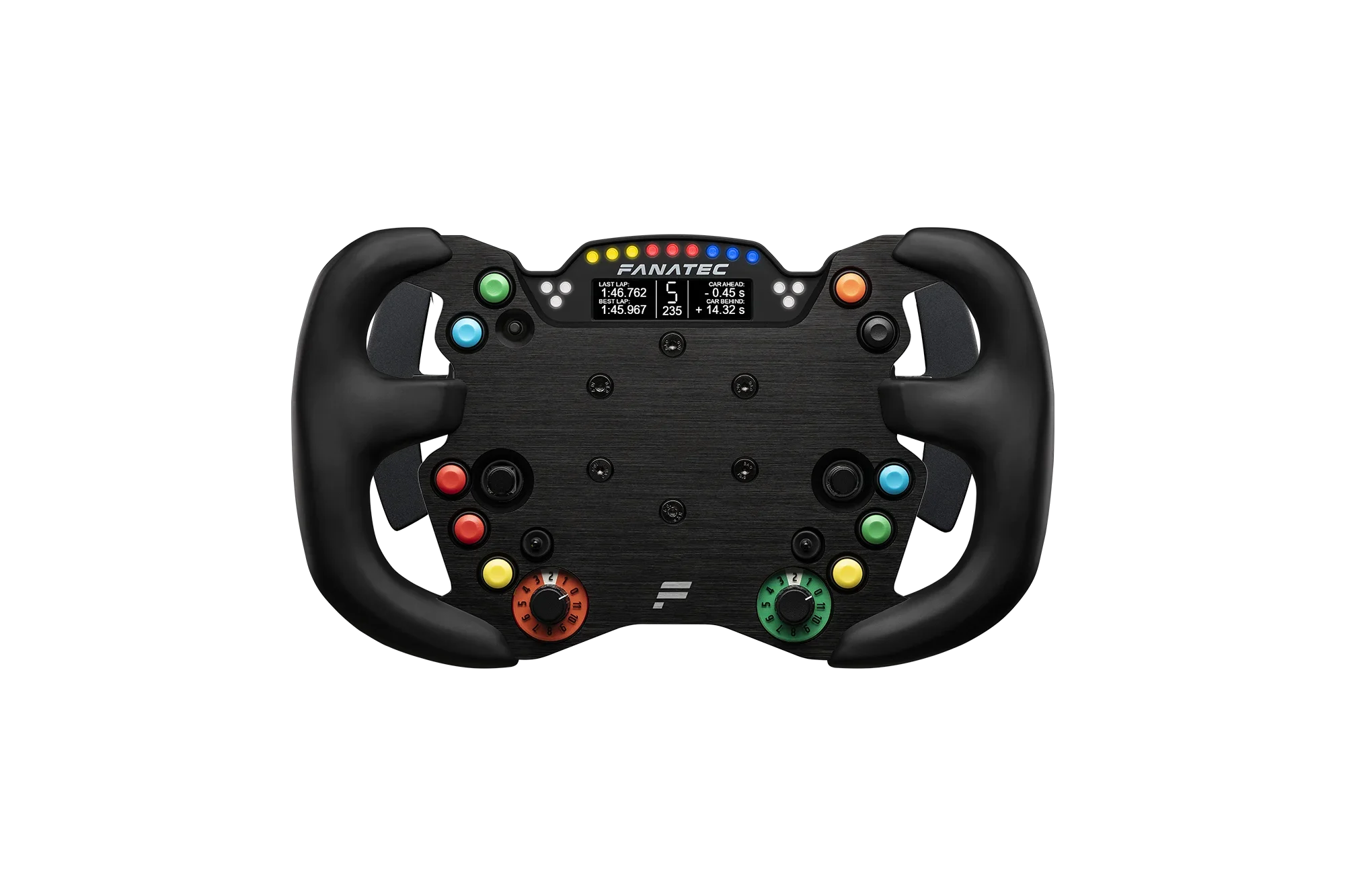

The ClubSport Steering Wheel GT3 Endurance for Xbox delivers realistic performance and features in a stylish, customisable design.

PREMIUM COMPONENTS.

This product combines the ClubSport Wheel Rim GT3 Endurance, Podium Button Module Endurance, and ClubSport Universal Hub V2 for Xbox.

Designed for GT3.

Designed to fit the Podium Button Module Endurance with precision CNC-machined holes to align perfectly with the buttons, toggle switches, and rotaries.

DIRECT DRIVE THE RIGHT WAY.

Not all Direct Drive systems are created equally. Decades of experience with force feedback technology have contributed to the many structural and electronic control optimisations in the ClubSport DD+ to deliver industry-leading performance in its class.

AN EXCEPTIONAL PLAYSTATION DRIVING EXPERIENCE.

Combining PlayStation®5 console performance with FANATEC® Direct Drive technology for the smoothest and most dynamic force feedback sensations. Of course, the ClubSport DD+ Wheel Base works on PC too.

Sturdy Flex-Resistant Steel Frame.

Engineered using 50mm diameter round steel tubes to minimize flex whilst withstanding the forces of high-torque wheelbases and heavy-duty pedal sets for a stable experience that won’t flinch.

Fast Self-Assembly.

Don’t spend hours putting your setup together when you could spend them racing around the track instead. Fanatec ClubSport GT Cockpit assembly is quick, clear, and straightforward.

Stay Cool Under Pressure.

Experience ultimate comfort with the Fanatec ClubSport Seat. Expertly sculpted to offer support over those long endurance races, the seat’s ultra-breathable fabric is four times more ventilated than the competition.

Quick, Tool-free Adjustable Seating.

Find your perfect seating position with ease, making effortless adjustments to the seat, wheelbase, and pedals. Transition smoothly from an upright road-car to a semi-reclined Formula-style seating position (or anywhere in between) to tackle any racing challenge.

90 kg adjustable load cell.

The custom made load cell is extremely durable and much more precise than the previous generation. You can apply a realistic and strong pressure, and precisely control the brake with muscle tension, just like in a real car.

New pedal plates.

The new D-shape pedal plates and the new pedal extensions allow pedal plate angle adjustment and the angle of the whole pedal arm.

Proven design.

The third generation of the ClubSport pedals is still using the simple but proven design of its legendary predecessors

Features

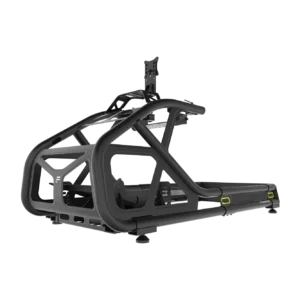

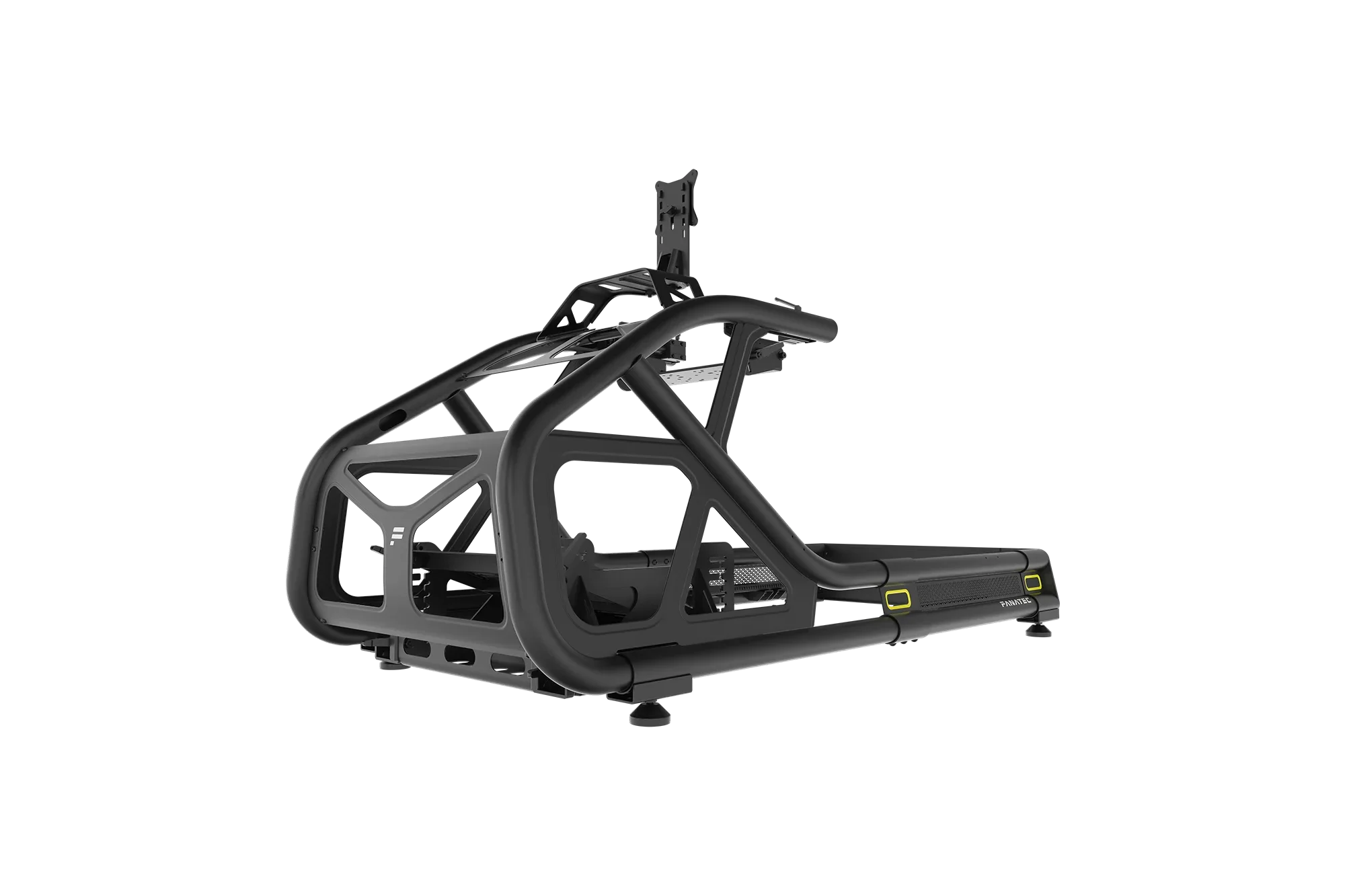

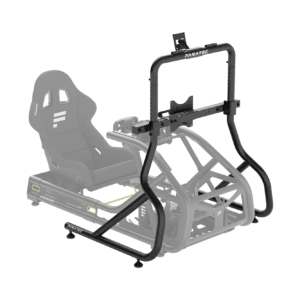

ClubSport GT Cockpit

Highly adjustable and immersive sim racing cockpit
Quick, tool-free seating, wheelbase, and pedal adjustment
Suited to newcomers and experienced sim racers alike
Sturdy steel frame for a stable sim racing experience
Easily transitions between multiple seating positions
Compatible with most third-party racing seats
Fast, straightforward self-assembly
Onboard VESA-compatible monitor mount supports ultra-wide screens
Integrated cable management for a clean look
Compatible with Fanatec and most third-party sim racing peripherals
Customize with a wide range of optional ClubSport GT Cockpit accessories
Available in white or matte black finish

GT Cockpit Monitor Stand

Upgrade to Big-Screen Racing
T-Channel rails support a range of streaming equipment
Stable, free-standing monitor mount
Optional overhead monitor mount for telemetry data, circuit maps, etc.
Complements Fanatec ClubSport GT Cockpit
Cable management materials and power brick holders
Supports monitors and screens from 32″ to 65″
Vertical height adjustment for the perfect field of view
VESA mounts from 100x100mm to 400x400mm
Height-adjustable feet
Engineered with 50mm steel tubing
Available in white or matte black finish

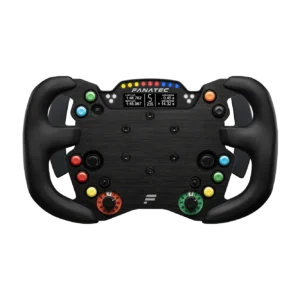

ClubSport Wheel Rim GT3 Endurance:

CNC-machined, black anodised aluminium
Overmolded rubber grips with 50 Shore A hardness
Includes 10 blank sticker sheets to print custom graphics
Diameter: 318 mm

Podium Button Module Endurance:

Real carbon fibre front plate and internal metal reinforcements for maximum stability
Rubber-coated glass fibre reinforced backplate
Full-scale replica to class-leading endurance GT3 racing car
10 buttons
Two 2-way toggle switches
Two 12-way Multi-Position Switches with Encoder Mode (endless rotation)
One FunkySwitch (7-way joystick/encoder)
One analogue joystick (2-axis)
Nine RGB high-intensity RevLEDs
Two FlagLED groups with three RGB high-intensity LEDs each
User-defined LED behavior via FanaLab
Integrated 2.7” 256×64 resolution OLED display
Tuning functions in the OLED display
Support for Intelligent Telemetry Mode (ITM)
Clutch bite point indication on the OLED display (when used in combination with the Podium Advanced Paddle Module)
Detachable button caps, compatible with other Fanatec button caps (e.g. Racing Style)
Reversible DataPort-C connector
Customisable button labels (sticker set included)

ClubSport Universal Hub V2 for Xbox:

A connected wheel base will become Xbox One and Xbox Series X|S compatible
Detachable button caps with Xbox One symbols
16 integrated buttons on top of the hub*
Four button boxes with three buttons each*
FunkySwitch™ with four-way directional pad, rotary encoder function, and push button. Comes with a metal knob*
ClubSport Magnetic Paddle Module preinstalled
- 3 mm-thick, black anodised aluminium paddle plates
- Paddle module cage made of CNC machined aluminium
- Neodymium magnets
- Two sets of paddle plates for small and large steering wheels
- Paddle Plate Spacers to adjust to different steering wheel diameters
- Additional spacers to adjust distance of shifter paddles to wheel rim
- Paddle module easily upgradable to Podium Advanced Paddle Module (optional)
LED display for Tuning or telemetry functions. It can be installed in two positions: Standing or flat.
An additional fifth button box unit can be attached (not included)

*These included Universal Hub components are not suitable for use with Podium Button Module Endurance

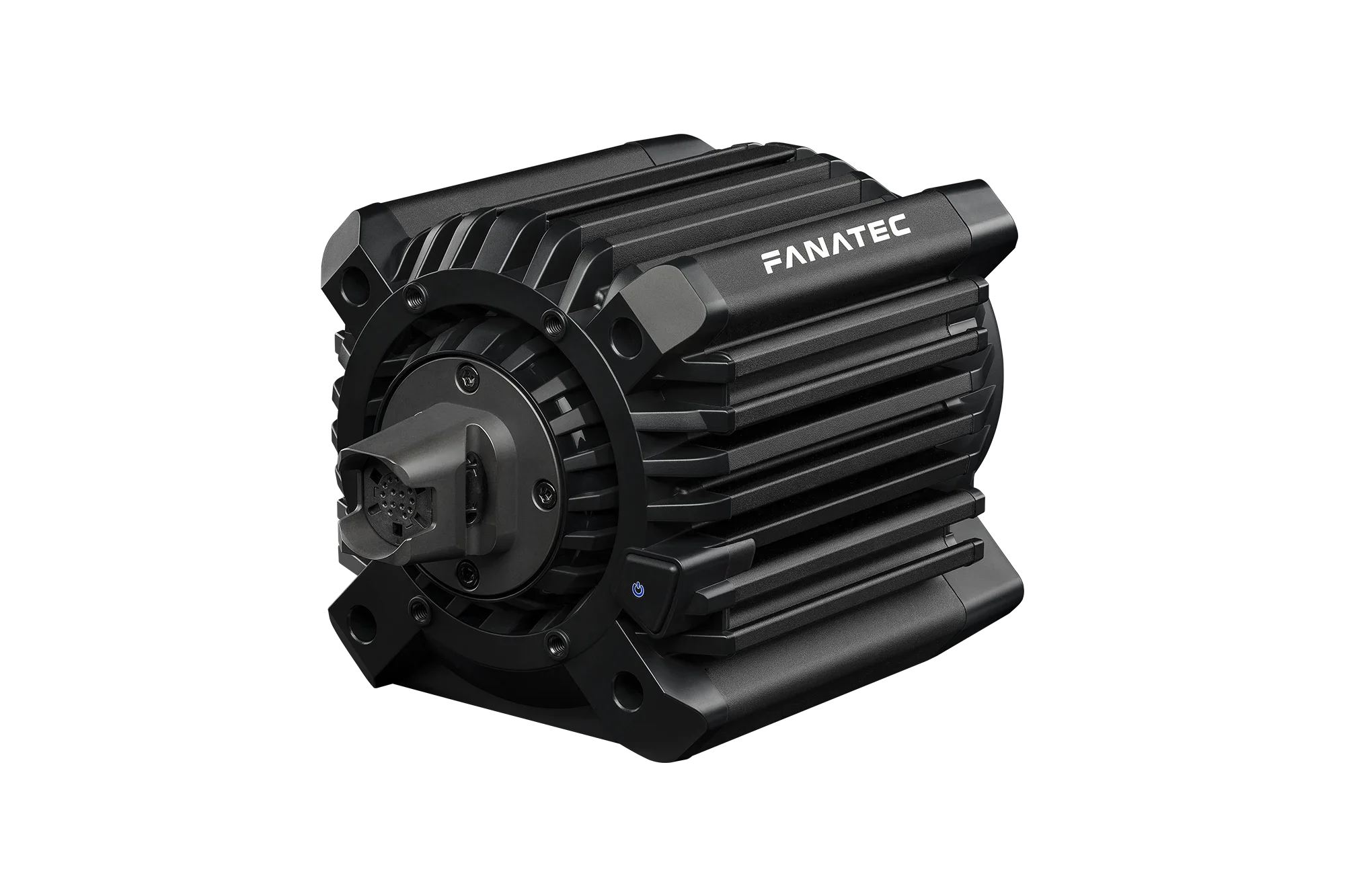

ClubSport DD+ Wheel Base:

Officially licensed for PlayStation®5 consoles and PlayStation®4 consoles
Direct Drive servo motor
- Custom-designed in Germany for the ClubSport DD+ specifically for sim racing
- 15 Nm consistent torque
- Optimised skew angle on rotor magnets reduces cogging torque
- Patented, exclusive FluxBarrier technology improves motor efficiency and smoothness
FullForce technology
- New force feedback protocol developed for Fanatec Direct Drive
- Super low-latency detail effects through fine motor frequency control
Passively cooled Wheel Base
- Most thermally stable Wheel Base in its class
- Consistent performance under the most extreme conditions
QR2
- Wheel Base optimised for QR2 from the ground-up
- Electronics module integrated with shaft
- Diecast aluminium with CNC-machined finish
- Motorsport-derived quick release system
- QR1 downgrade possible (sold separately, coming soon)
Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
High-resolution (contactless) Hall-position-sensor
Rotation: 2520 degrees (electronically limited, adjustable)
Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data between Steering Wheel and Wheel Base without the need for a mechanical limiter (allows for high steering angle settings)
Compatible with entire Fanatec ecosystem (see Compatibility section for details)
T-nut rail system on sides and bottom for easily adjustable hard-mounting
Ports:
- Power supply
- USB-C to PC / console
- Shifter 1
- Shifter 2 (Sequential only)
- Pedals
- Handbrake
- CAN (for future Fanatec peripherals)
Front-mounted threaded inserts for future Fanatec accessories. Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.

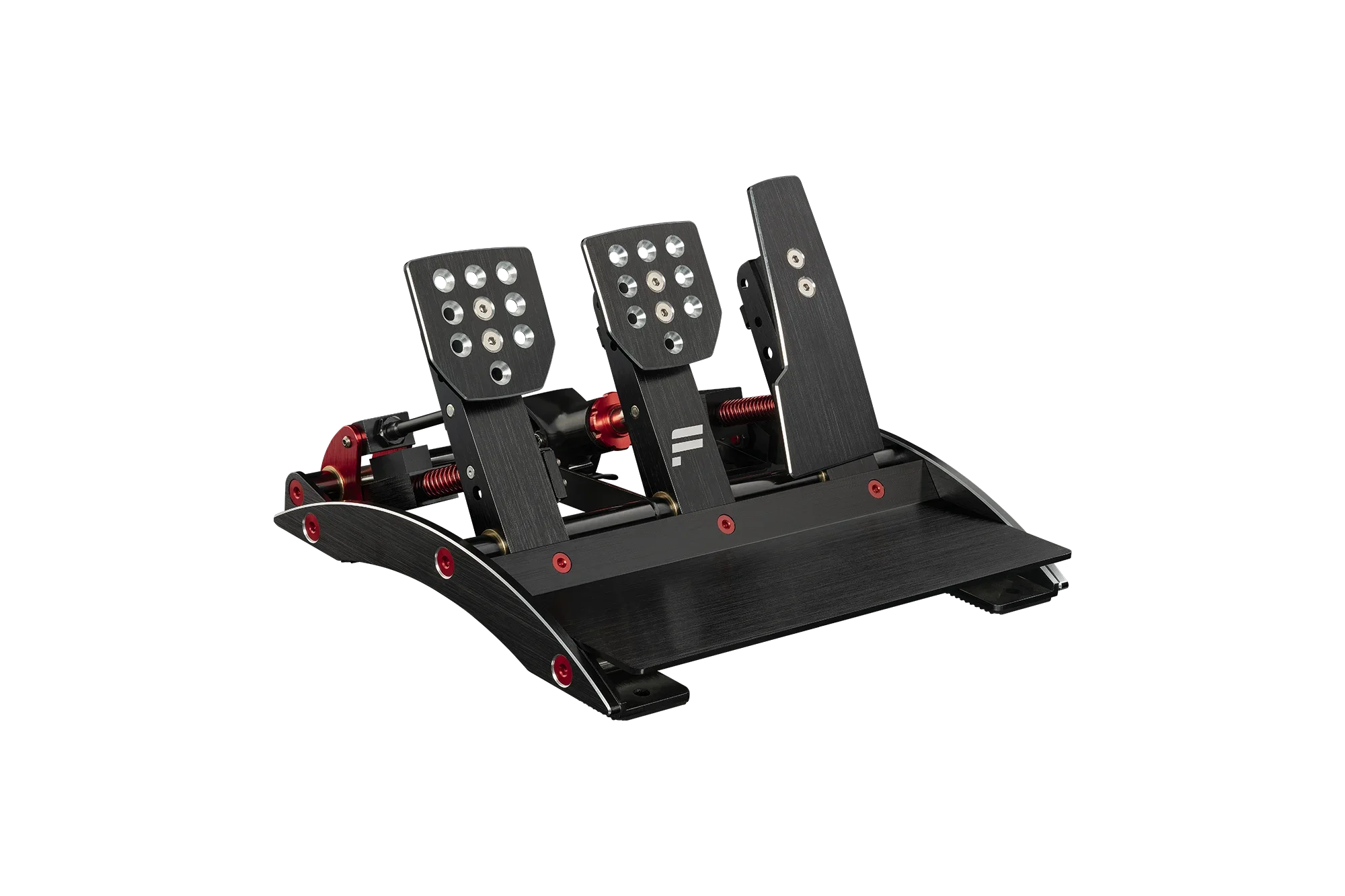

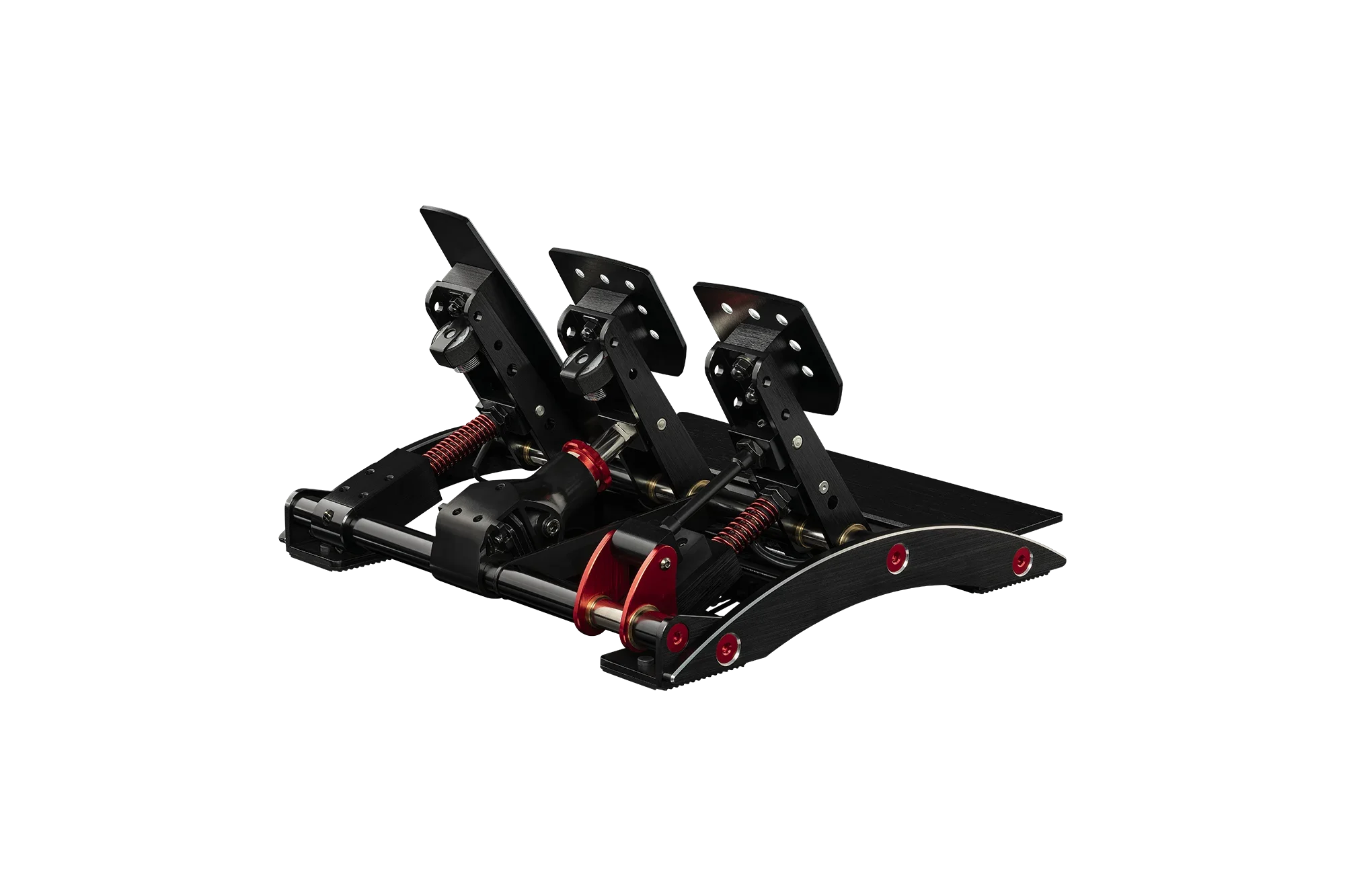

ClubSport Pedals V3

High resolution pedals with magnetic and contactless sensors on gas and clutch for a long life and maximum performance
Pressure sensitive brake with custom made 90 kg load cell sensor
Adjustable brake stiffness and travel without tools
12bit resolution (4096 values) on all axis
Alternative D-shape race plates in curved design. Ideal for standing pedals
Pedal extension to adjust the angle of the pedal plate and to change the angle of the whole pedal arm
Brake sensitivity can be adjusted through the tuning menu of the wheel and during the race
Vibration motor on throttle pedal indicates rear wheel spin and oversteer (control by games is possible via Fanatec Wheel SDK)
Vibration motor on brake pedal to simulate ABS and indicate locking tires (controlled by Fanatec wheels: Compatible to all games. Dynamic control by games is possible via Fanatec Wheel SDK)
Design of the gas pedal allows quick exchange of the springs. Two springs with different strength are included
Optional damper kit for gas and brake.The hyraulic dampening resistance can easily be adjusted with a knob
Full multi platform compatibility, depending solely on the platform compatibilities of the connected Wheel Base/Racing Wheel
Full metal construction of CNC-machined aluminum
Ultimate adjustability: Position of pedal plates in all directions, angle, spring strength at throttle, brake sensitivity, brake travel
Compatible to the colour kits to allow perfect visual customisation

Compatibility

Peripherals

The ClubSport DD+ Wheel Base is compatible with:

All Fanatec Steering Wheels (with QR2)
All Fanatec Pedals (adapter cables might be required on pedals without RJ12 connection)
ClubSport Shifter (all versions)
ClubSport Handbrake
All Fanatec Cockpits
ClubSport DD Table Clamp
ClubSport Table Clamp V2
Podium Mounting Brackets (the ClubSport DD+ Wheel Base includes M6 T-nuts for side-mounting; the Podium Mounting Brackets require the use of M6 bolts and washers)

Note: ClubSport Static Shifter Paddles are not supported.

Platforms

This product is compatible with all PlayStation®4 consoles and PlayStation®5 consoles.
This product is compatible with PC on all major racing games.
Other platforms: Compatibility with other platforms depends on the used steering wheel. For more information, please check the product page of the steering wheel you plan to use.

Please note: PC and other platform compatibility is tested by Fanatec, but not tested nor endorsed by Sony Interactive Entertainment Inc.
