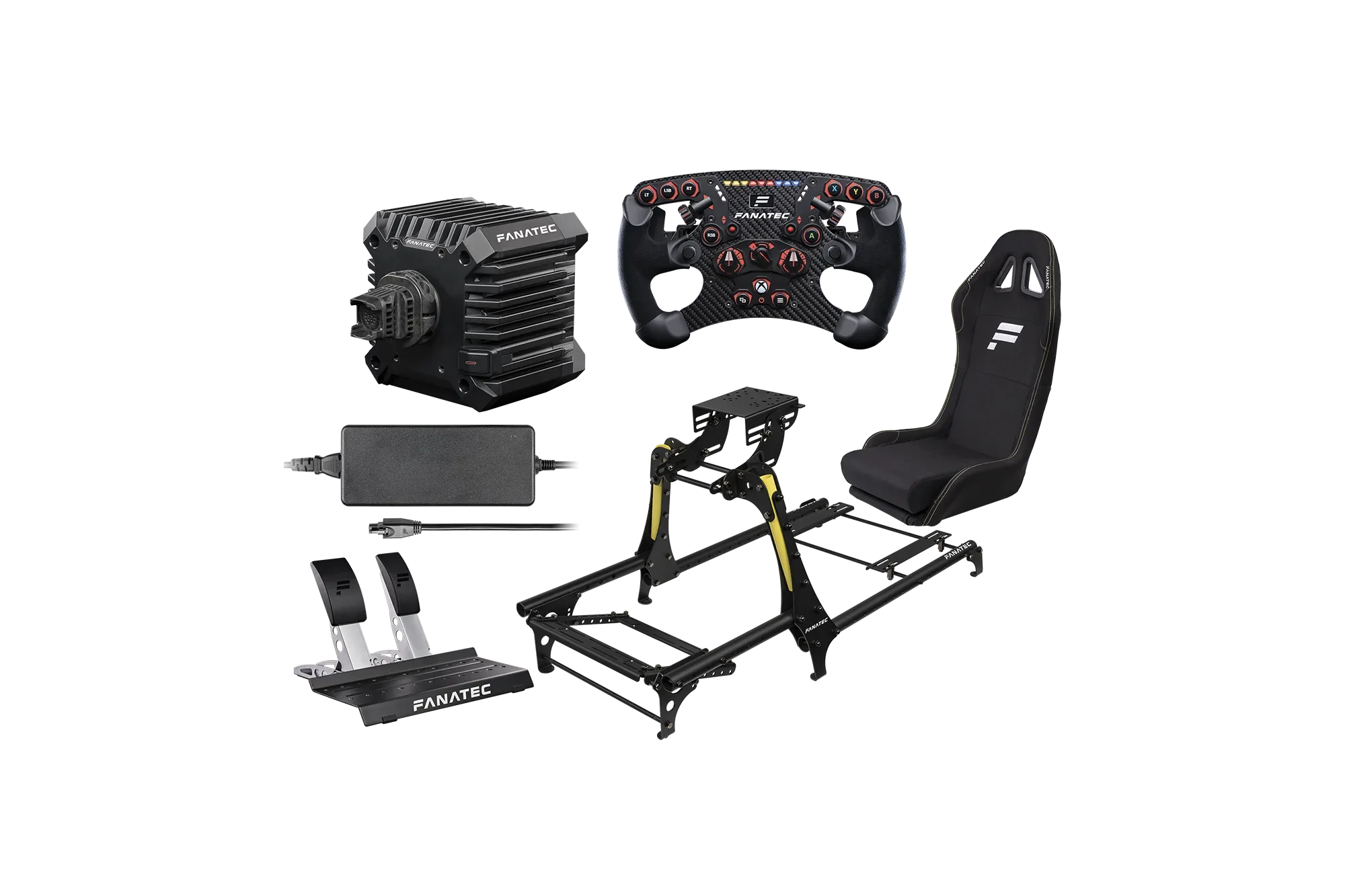

CSL Cockpit Formula V2.5 X Bundle (8 Nm)

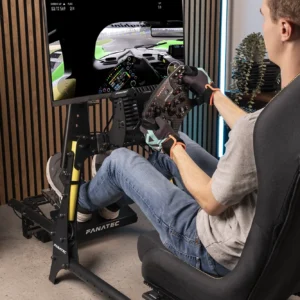

CSL Cockpit

• Super strong and lightweight trapeze chassis
  • Aluminum tubing
  • Steel brackets
  • Black and yellow powder coating
• Designed specifically for Fanatec Direct Drive Wheel Bases with optimal side mounting
• Strong pedal plate for consistent control on load cell brakes
• CSL Cockpit Seat (sold separately) designed to match the style of the CSL Cockpit
• Supports most standard racing seats (including the SPARCO Pro 2000 QRT)
• Pedals angle and distance adjustment
• Innovative Wheel Base mounting bracket design
  • Three height options
  • Stepless adjustable angle (0 to 30°)
  • Stepless adjustable distance to seat (80 mm range)
  • Can be inverted to achieve an ideal karting position
• Optional monitor holder (sold separately)
• Optional shifter holder (sold separately)
• Hollow tubing allows for tidy cable management
  • Included tube caps with cable holes.
• Two types of protective foot pads (felt and rubber) to suit carpet or hard flooring
• Compact packaging for ease of shipping.

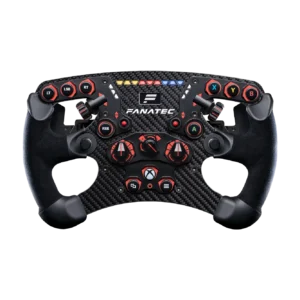

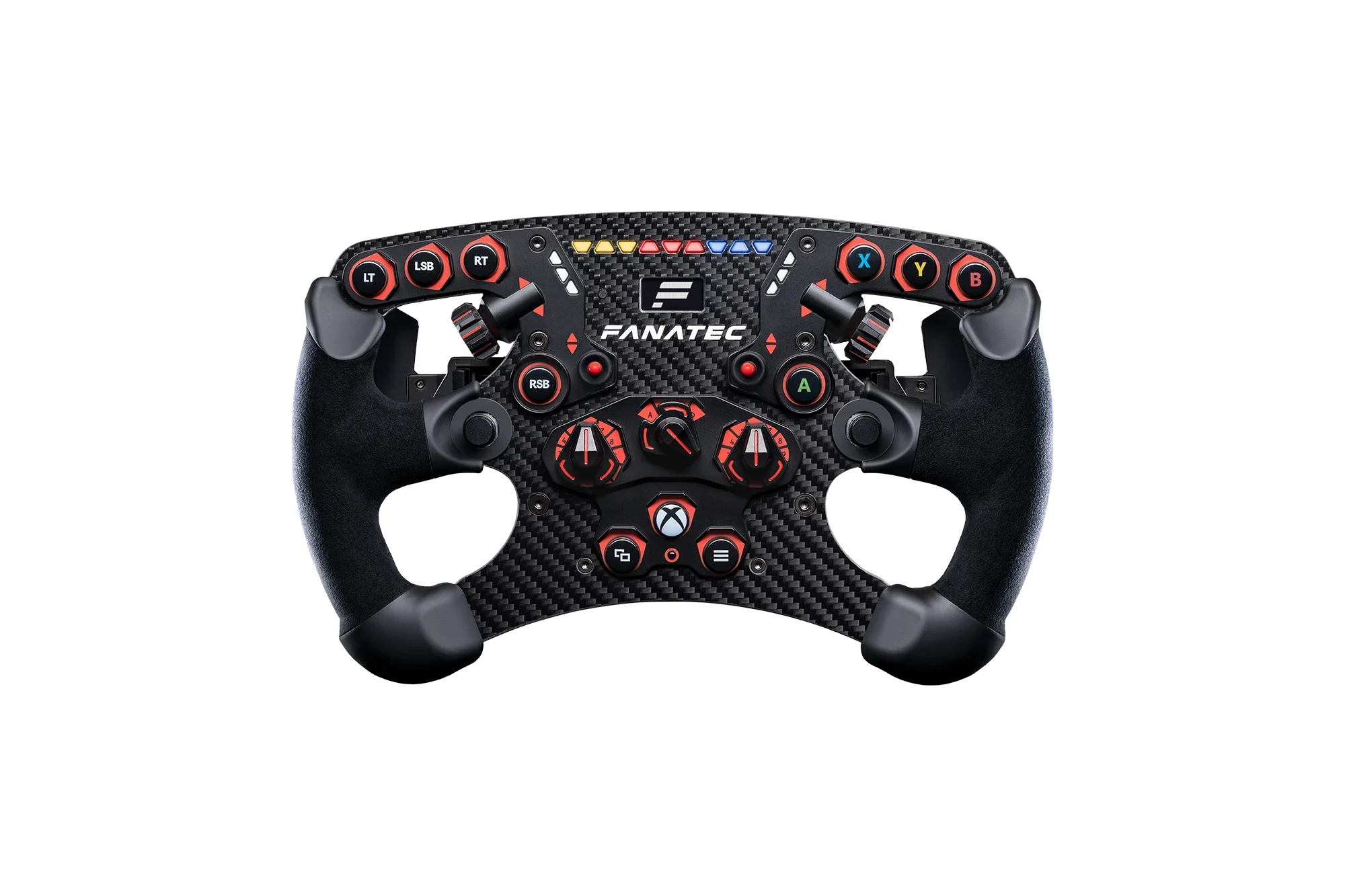

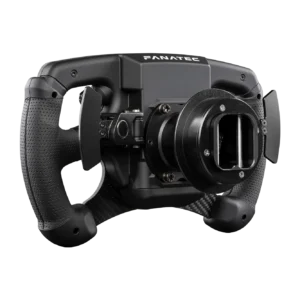

ClubSport Steering Wheel Formula V2.5

• Officially licensed for Xbox One® and Xbox Series X|S (learn more)
• Formula-style steering wheel with a compact diameter of 270 mm for fast movements and reactions
• Durable construction made of metal and carbon fibre
• 5 mm solid carbon fibre front plate. Carbon fibre plate is constructed of approx. 30 layers of unidirectional carbon cloth
• Genuine Alcantara® grips
• Rubber-coated surfaces including button framing and thumb encoders

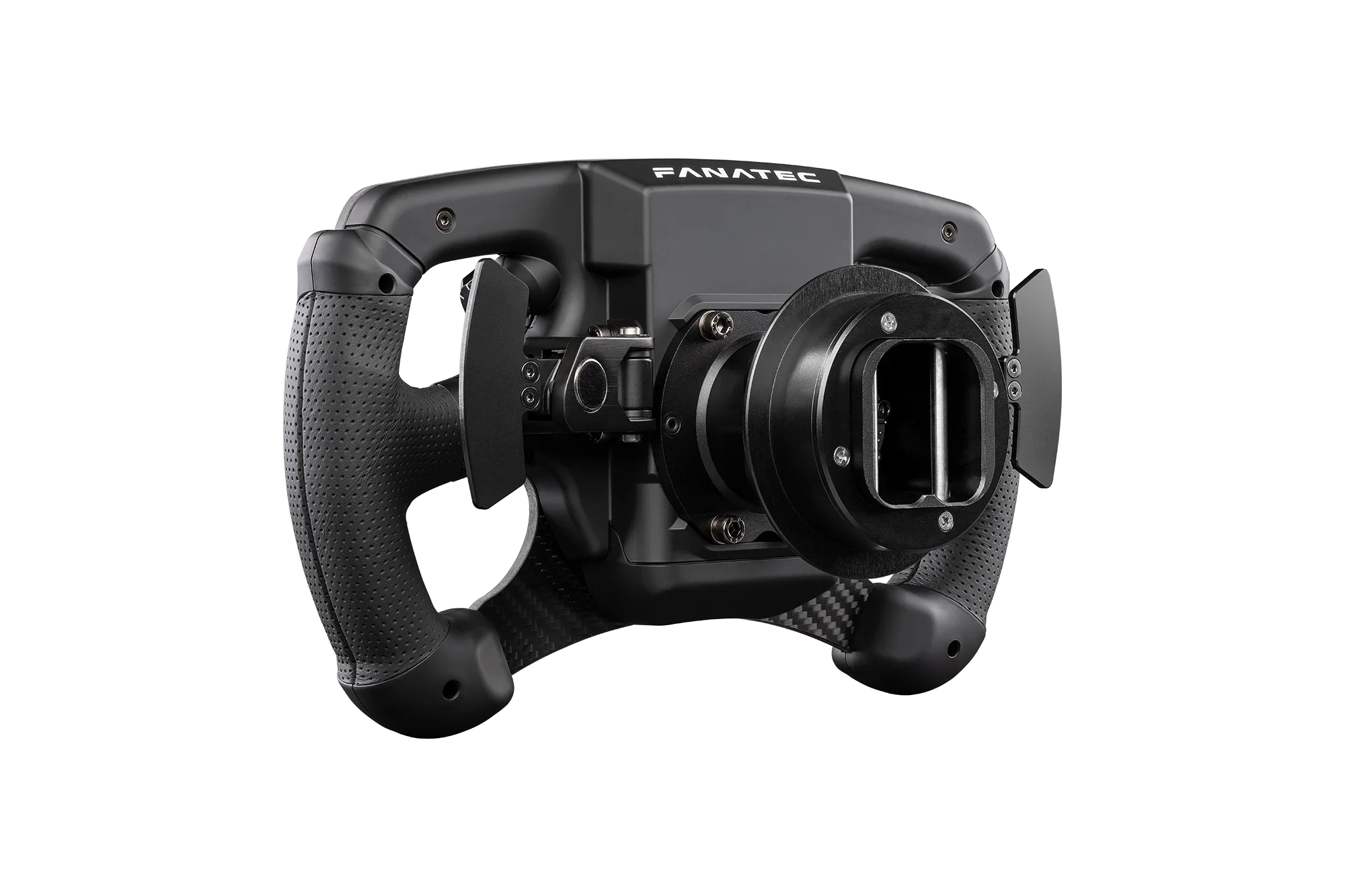

• ClubSport Magnetic Paddle Module pre-installed
  • 3 mm-thick, black anodised aluminium paddle plates
  • Paddle module cage made of CNC machined aluminium
  • Neodymium magnets
  • Paddle module easily upgradable to Podium Advanced Paddle Module (optional)
• Steering wheel weight: approx. 1250 g
• 11 buttons plus four paddles with ultra-reliable switches
• Two 2-way toggle switches
• Two 12-way multi-position switches with encoder functionality
• 7-way FunkySwitch™: left, right, up, and down directional inputs, push button, and rotary encoder functionality
• Analogue joystick
• Two thumb encoders easily reachable while driving without releasing the grips
• Two vibration motors integrated with the grips, controllable through wheel Tuning Menu (SHO) or by game through Fanatec SDK
• RevLEDs with nine multi-colour LEDs to show motor RPM and optimal shifting point as games program through the Fanatec SDK
• Two FlagLEDs with three multi-colour LEDs each to indicate tyre slip, flag warnings, pit limiter, and more, as games program through the Fanatec SDK
• User-defined LED and display behavior via FanaLab
• 1″ 128×64 white OLED display to show telemetry data like speed or gear as games program through the Fanatec SDK
• White Xbox One connection status LED
• Tuning functions with OLED display to adjust settings independent from the game and during gameplay (see description of compatible wheel base/racing wheel for details)
• Detachable Xbox button caps
• Racing-style button caps included
• QR2 Wheel-Side (packaged separately)

CSL DD QR2 (8 Nm)

• Direct-Drive system delivers instant, detailed force feedback
• Boost Kit 180 included
• Linear, consistent performance (8 Nm peak torque)
• Patented, exclusive FluxBarrier technology optimises motor efficiency and smoothness
• Full Fanatec SDK support ensures game compatibility out of the box for all major racing games
• Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
• Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
• High-resolution (contactless) Hall-position-sensor, same as Podium Series
• Steering axis made from carbon fibre-enhanced composite
• Fanless: wheel base housing is made from aluminium (passive heat sink, core structural component) with composite end caps
• Rotation: 2520 degrees (electronically limited, adjustable)
• Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data to steering wheels
• QR2 quick release system
  • Motorsport-derived quick release
  • Tapered shape naturally ensures a tight fit
  • Carbon fibre-reinforced polyamide construction
  • Exchangeable
• T-nut rail system on sides and bottom for easily adjustable hard-mounting

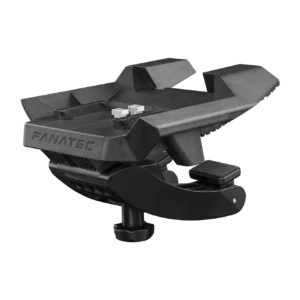

• Optional table clamp (sold separately), supports 5 to 60 mm table thickness

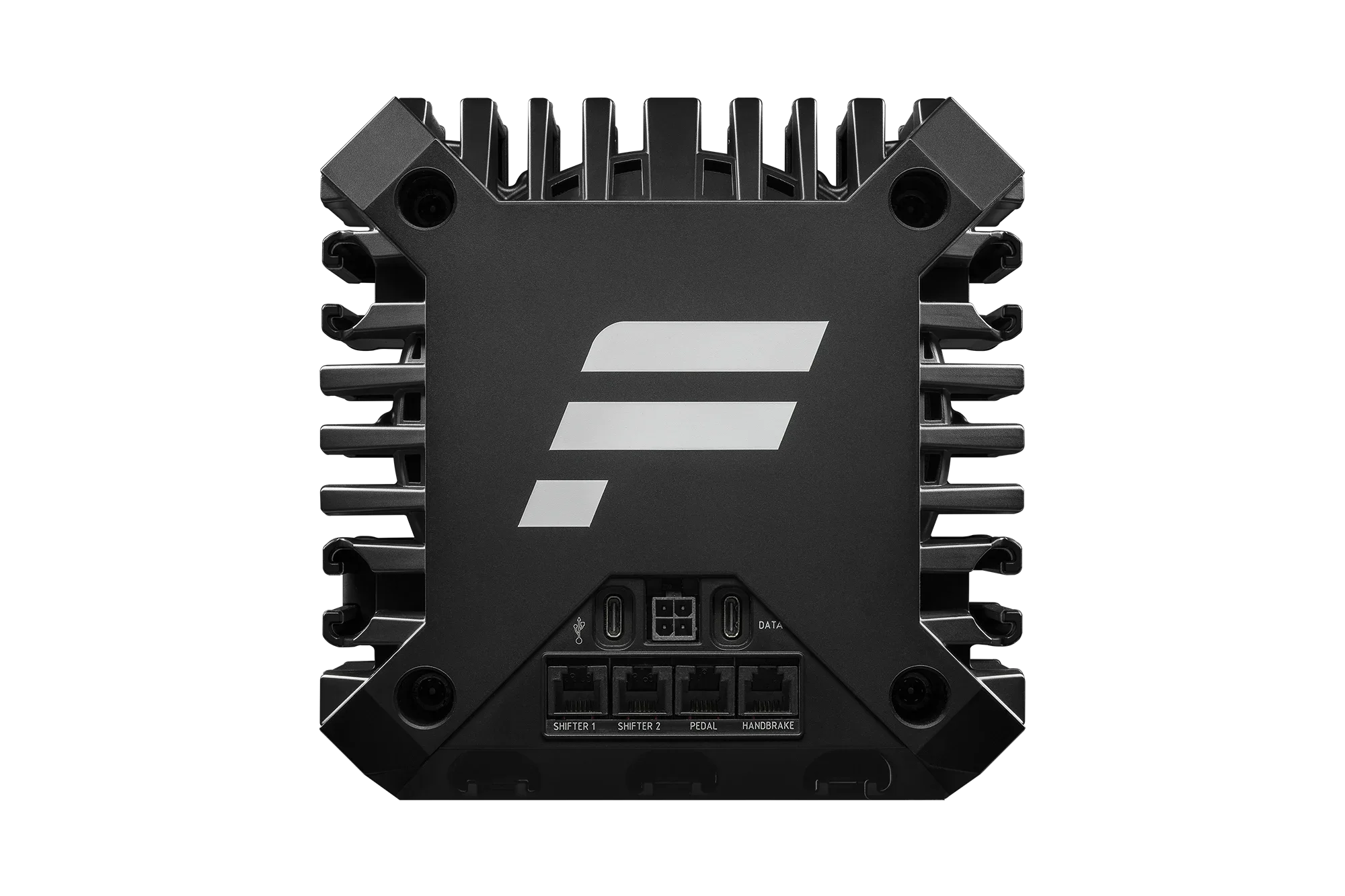

• Ports:
  • Power supply
  • USB-C to PC / console
  • Fanatec DataPort-C
  • Shifter 1
  • Shifter 2 (Sequential only)
  • Pedal
  • Handbrake
• Front-mounted threaded inserts for Fanatec accessories (e.g. ClubSport Static Shifter Paddles, available separately). Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.

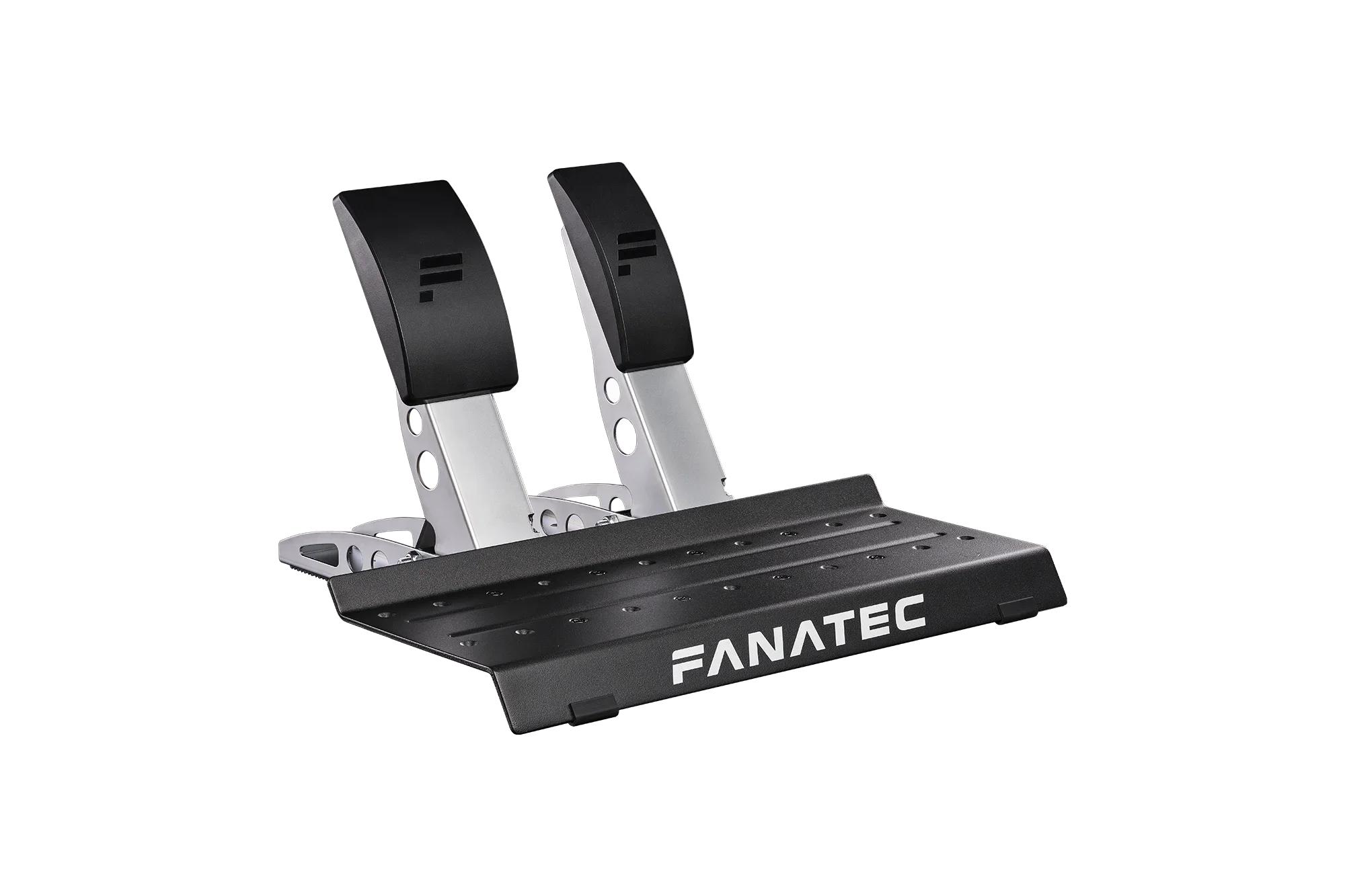

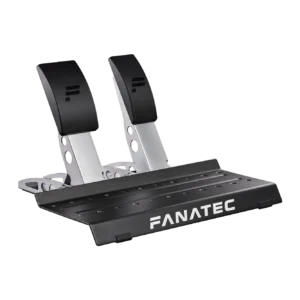

CSL Pedals

• Two-pedal set (throttle and brake), upgradeable to three pedals
• All-metal construction (excluding pedal faces). Pedals are made from heavy steel, which helps to prevent the set from sliding on the floor (if not hard-mounted to a rig)
• Optional anodised aluminium pedal plates
• Contactless Hall sensors (12-bit) on both brake and throttle for high precision and durability
• Brake pedal spring is stiffer than throttle pedal spring, PU foam damper adds additional resistance for progressive braking feel
• Upgrade to a three-pedal configuration with Clutch Kit or Load Cell Kit
  • CSL Pedals Clutch Kit provides a third pedal for the lowest price
  • CSL Pedals Load Cell Kit also provides a third pedal, and upgrades the brake and electronics
• Pedal position can be adjusted sideways along heel rest
• Height-adjustable pedal faces
• Modular design means inverted mounting to a rig is possible
• Vertical rear plates allow pedals to be easily braced against a wall or other vertical surface
• Pearl chrome plating on pedal bases and arms
• Black powder coating on heel rest
• Pedals connect directly to all compatible Fanatec Wheel Bases
