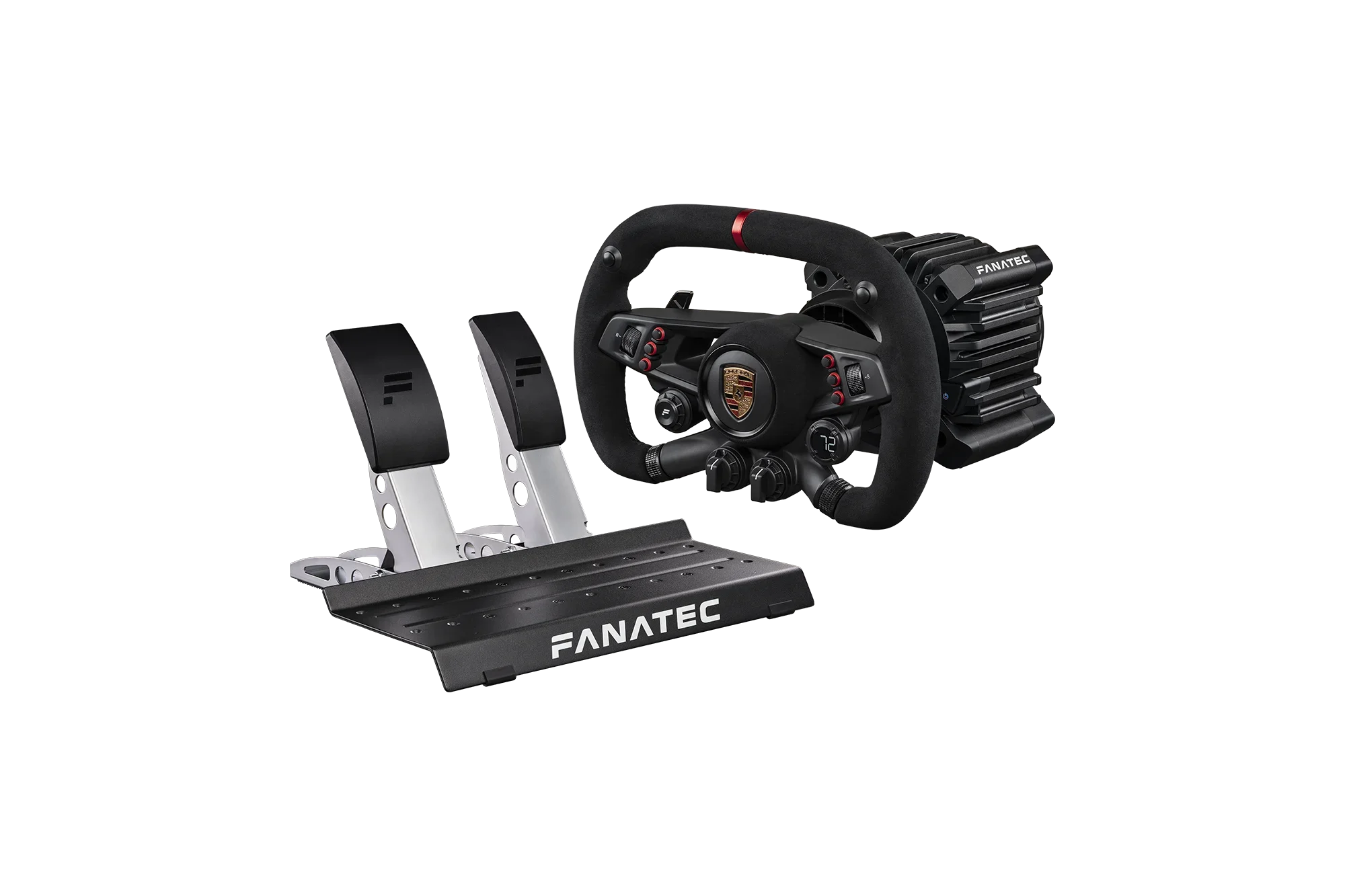

GT DD PRO Ready2Race Vision GT Bundle (8 Nm)
$1,400.00
3-Year WarrantyBUNDLE CONTENTS:
-
1x CSL Elite Steering Wheel Porsche Vision GT -
1x CSL Pedals -
1x Gran Turismo® DD PRO Wheel Base (8 Nm)
GT DD PRO Ready2Race Vision GT Bundle (8 Nm)
You dream it. You drive it.
Designed for virtual worlds.
Ideal for Gran Turismo® 7.
A unique combination of form and function.
The wheel has been carefully optimized for sim racing, with its comfortable 310 mm diameter, practical button layout, and tactile paddles and rotaries.
Cast aluminum frame.
The structure of the wheel is diecast aluminum, ensuring lightness and strength, retaining the stunning spoke cutouts of the original concept design. Our new Tactaris synthetic suede material is durable, comfortable, and easy to clean.

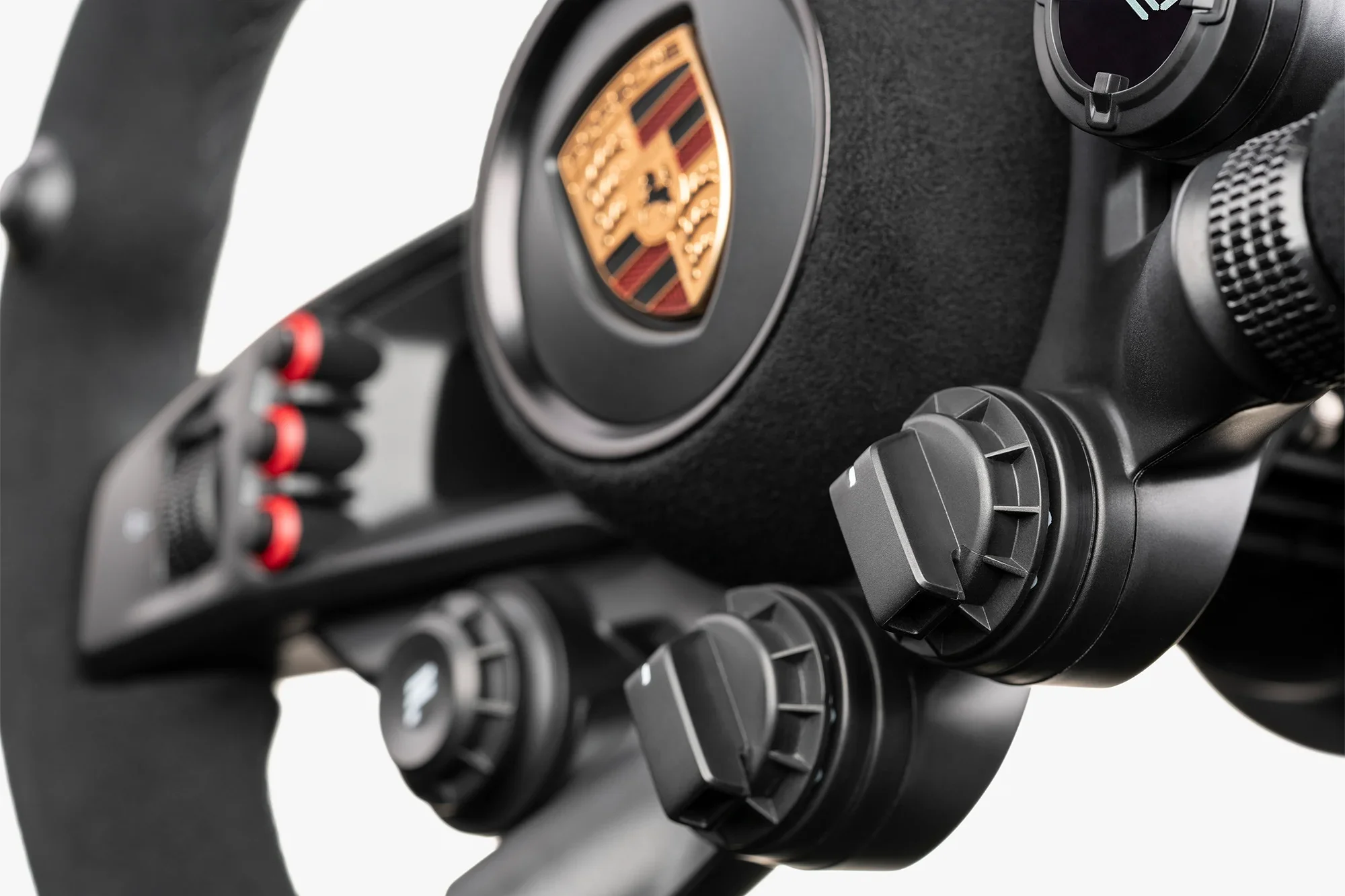

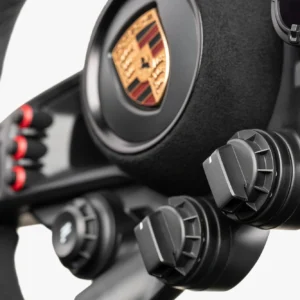

Intuitive ergonomic layout.
Eight buttons and two encoders are within easy reach of your thumbs without having to take a hand off the wheel. In total there are seven rotary encoders, including two Multi-Position Switches and the 7-way FunkySwitch.
Precision force feedback. Now with QR2.
ONCE YOU FEEL IT, THERE’S NO GOING BACK.
MAXIMUM STRENGTH.
The Gran Turismo DD Pro Wheel Base package includes the Boost Kit 180, a powerful 180W power supply that unlocks the full performance of the direct drive motor.
8 NM PEAK TORQUE.
Using the included Boost Kit 180, the Gran Turismo DD Pro Wheel Base operates in its 8 Nm mode. This provides much stronger feedback, and as a result, you’ll feel the subtle cues more clearly too.
SMALL SIZE. HUGE PERFORMANCE.
This high level of torque can be sustained without the need for active cooling, with the extruded and CNC-machined aluminium casing acting as the structural chassis as well as the heatsink.
Heavy steel construction.
Magnetic sensors.
Three ways to upgrade.
Upgrade your CSL Pedals with metal pedal faces (optional), the Clutch Kit (optional), or the Load Cell Kit (all kits sold separately). The Clutch Kit provides a third pedal at the lowest possible price. The Load Cell Kit is an alternative to the Clutch Kit, also providing a third pedal, while upgrading the brake and main electronics.
Clutch Kit or Load Cell Kit.
The CSL Pedals Clutch Kit (sold separately) adds a dedicated clutch pedal, with a stiffer spring than the throttle and the same wider pedal face as the brake. The CSL Pedals Load Cell Kit (sold separately) is the ultimate upgrade for realistic braking feel. When upgrading to the Load Cell Kit, the standard brake pedal can be used as the clutch.
Metal pedal faces.
Transform the appearance of the CSL Pedals with durable, anodised aluminium pedal faces (sold separately). The throttle pedal face is extended, allowing for a comfortable heel-and-toe technique.
Features
CSL Elite Steering Wheel Porsche Vision GT
- Officially licensed Porsche Vision Gran Turismo concept car steering wheel
- Futuristic design with unique spoke cutouts
- Optimized for sim racing
- 310 mm diameter suits many driving styles
- Cast aluminum structure delivers exceptional strength for direct feedback
- Durable Tactaris material provides comfort and grip
- Eight push buttons including two integrated with rim
- Tuning Menu button integrated with Porsche crest
- OLED display for Tuning Menu settings and game telemetry (e.g. gear indicator, speed)
- Magnetic shifters with unique design and feel
- Seven rotary encoders
- Four specially designed encoders integrated with spokes and rim
- Two Multi-Position Switches (12 positional inputs or rotary encoder mode)
- 7-way FunkySwitch (directional buttons, push button, rotary encoder)
- QR2 Lite Wheel-Side preinstalled

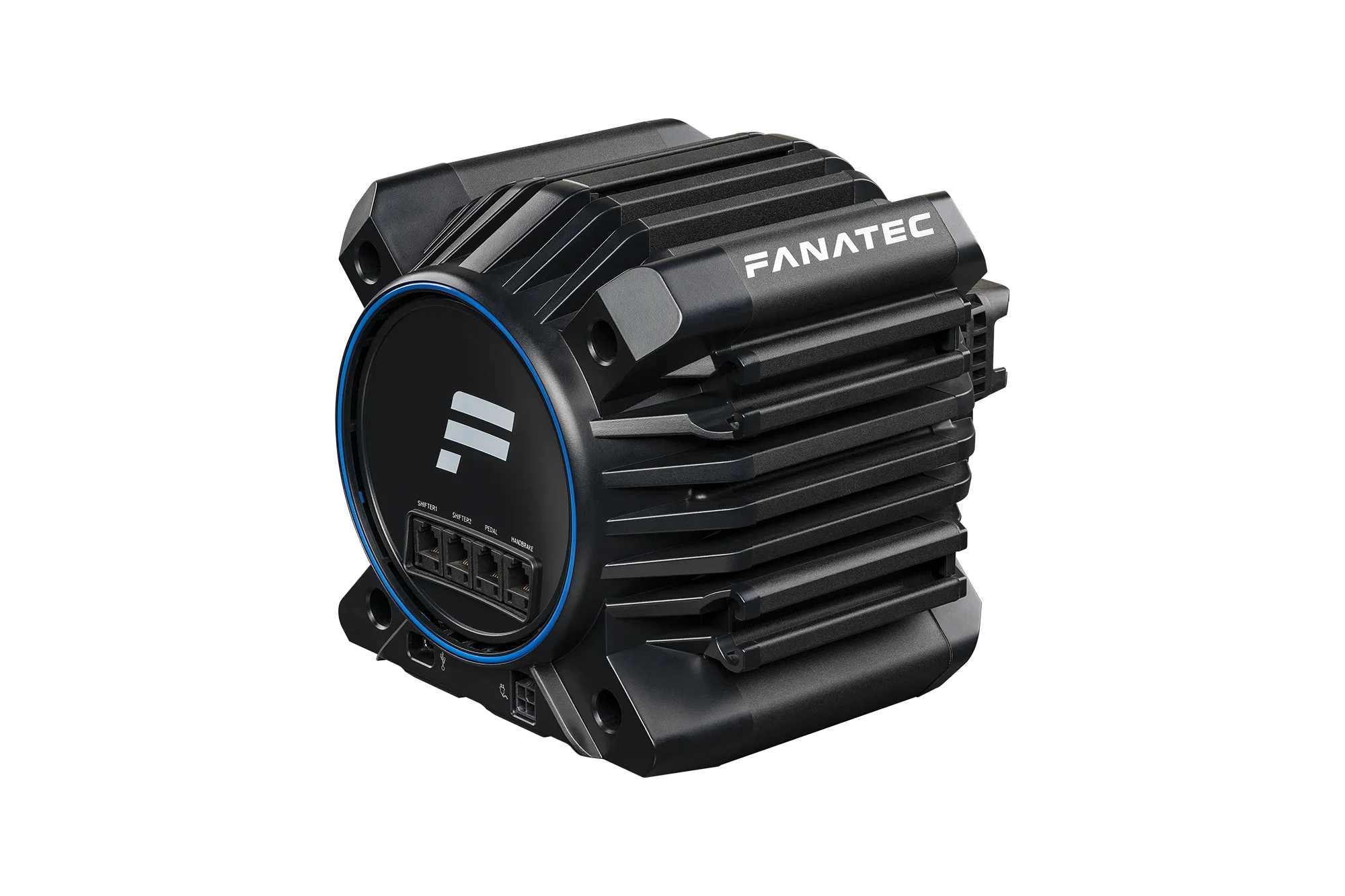

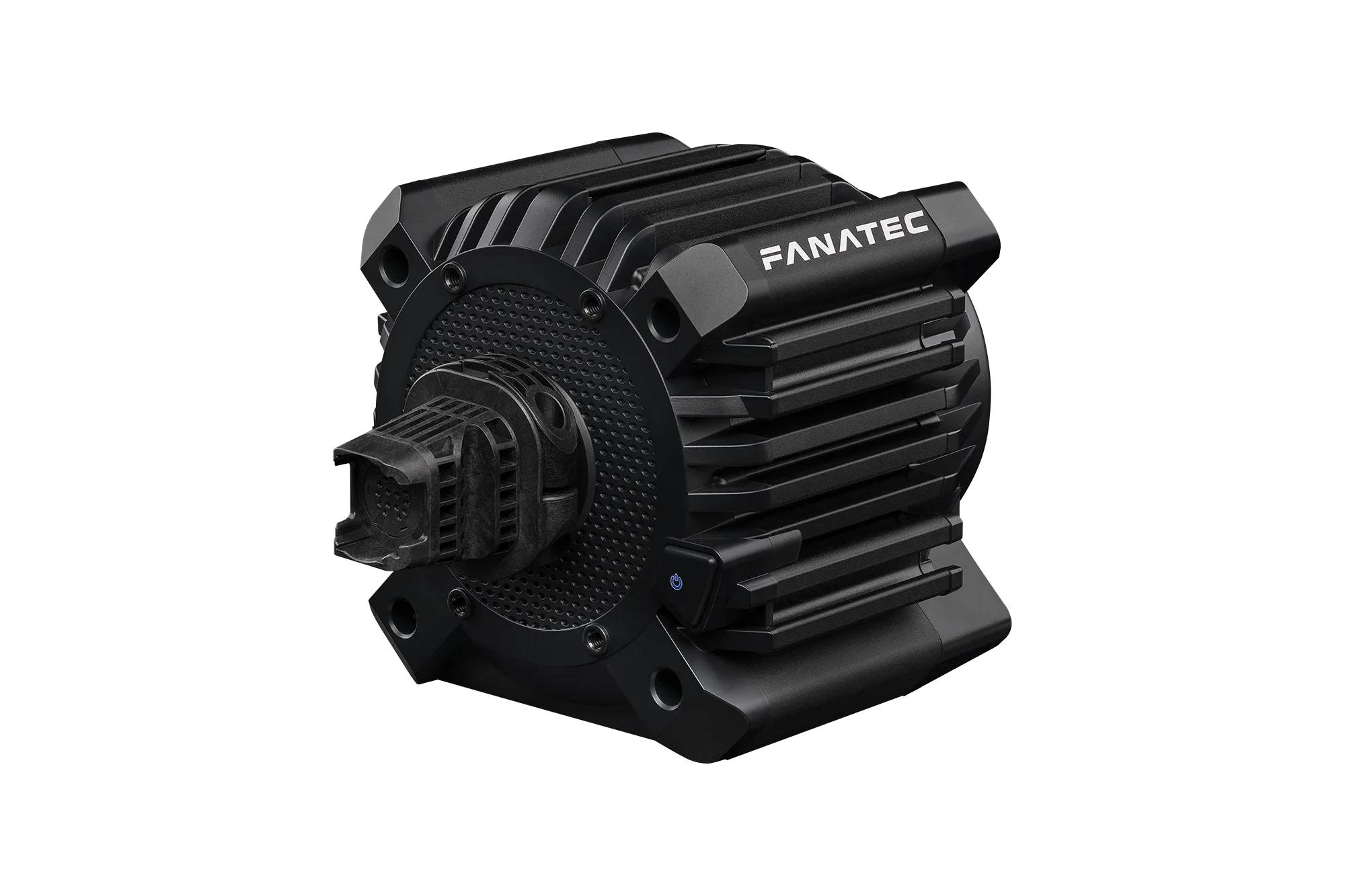

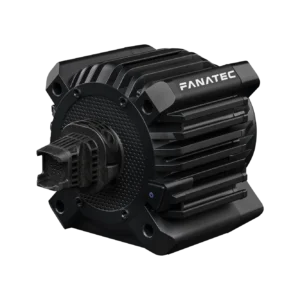

Gran Turismo DD Pro Wheel Base:
- The official Direct Drive Wheel Base for Gran Turismo®
- Boost Kit 180 (included) unlocks maximum strength (8 Nm peak torque)
- Officially licensed for PS5® and PS4® consoles
- Direct-Drive system delivers instant, detailed force feedback
- Linear, consistent performance
- Patented, exclusive FluxBarrier technology optimises motor efficiency and smoothness
- Full Fanatec SDK support ensures compatibility out of the box for all major racing games
- Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
- Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
- High-resolution (contactless) Hall-position-sensor, same as Podium DD1
- Steering axis made from carbon fibre-enhanced composite
- Fanless: wheel base housing is made from aluminium (passive heat sink, core structural component) with composite end caps
- Rotation: 2520 degrees (electronically limited, adjustable)
- Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data between steering wheel and wheel base
- QR2 quick release system
- Motorsport-derived quick release
- Tapered shape naturally ensures a tight fit
- Carbon fiber-reinforced polyamide construction
- Exchangeable
- Compatible with entire Fanatec ecosystem (see Compatibility section for details)
- T-nut rail system on sides and bottom for easily adjustable hard-mounting
- Optional table clamp (sold separately), supports 5 to 60 mm table thickness
- Ports:
- Power supply
- USB-C to console / PC
- Shifter 1
- Shifter 2 (Sequential only)
- Pedals
- Handbrake
- Front-mounted threaded inserts for Fanatec accessories (e.g. ClubSport Static Shifter Paddles, available separately). Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.

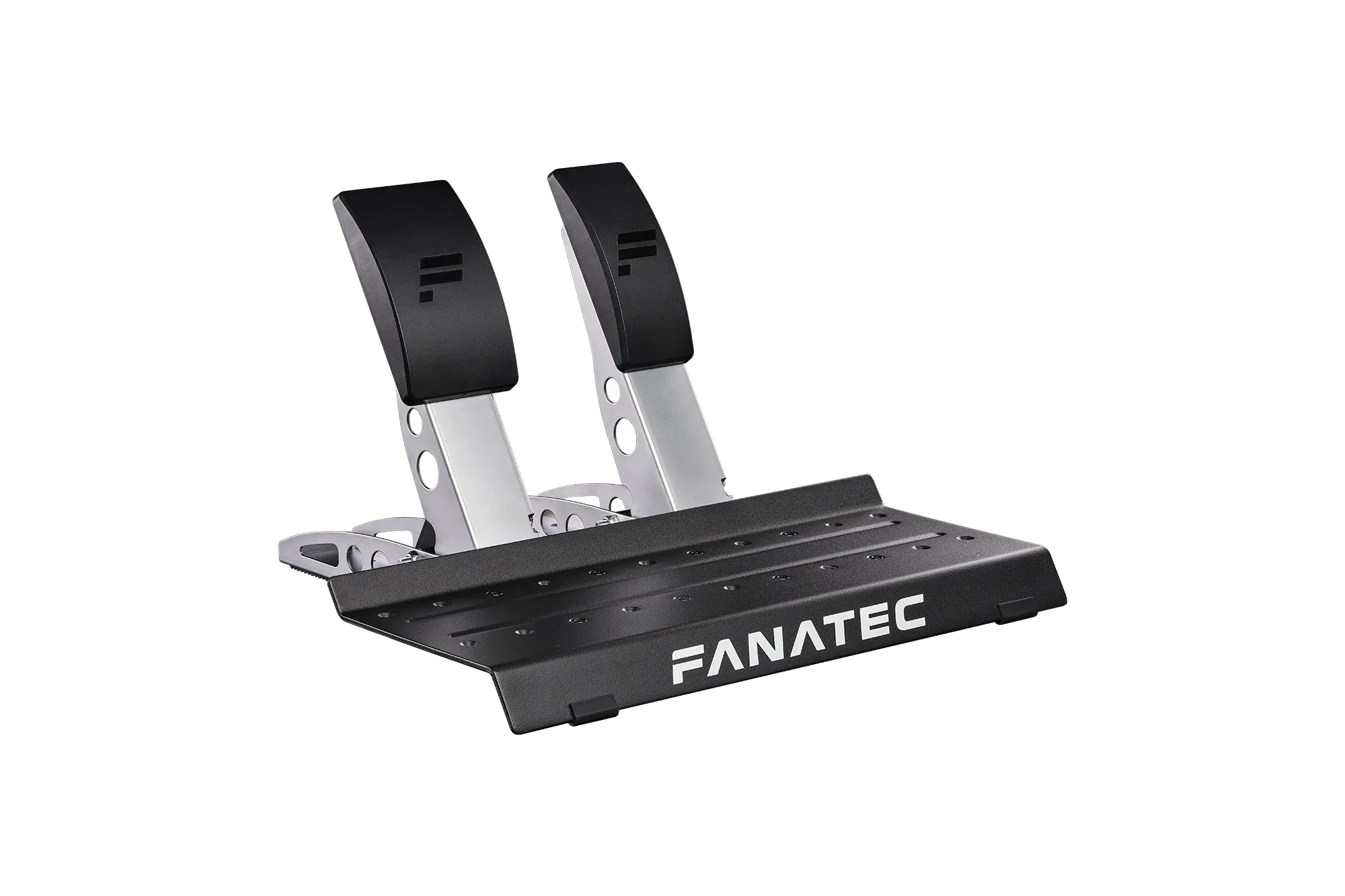

CSL Pedals:
- Two-pedal set (throttle and brake), upgradeable to three pedals (upgrade kits sold separately)
- All-metal construction (excluding pedal faces). Pedals are made from heavy steel, which helps to prevent the set from sliding on the floor (if not hard-mounted to a rig)
- Optional anodised aluminium pedal plates (CSL Pedals Tuning Kit, sold separately)
- Contactless Hall sensors (12-bit) on both brake and throttle for high precision and durability
- Brake pedal spring is stiffer than throttle pedal spring, PU foam damper adds additional resistance for progressive braking feel
- Upgrade to a three-pedal configuration with Clutch Kit or Load Cell Kit (sold separately)
- CSL Pedals Clutch Kit provides a third pedal for the lowest price
- CSL Pedals Load Cell Kit also provides a third pedal, and upgrades the brake and electronics
- Pedal position can be adjusted sideways along heel rest
- Height-adjustable pedal faces
- Modular design means inverted mounting to a rig is possible
- Vertical rear plates allow pedals to be easily braced against a wall or other vertical surface
- Pearl chrome plating on pedal bases and arms
- Black powder coating on heel rest
Compatibility
Peripherals
The ClubSport DD+ Wheel Base is compatible with:
- All Fanatec Steering Wheels (with QR2)
- All Fanatec Pedals (adapter cables might be required on pedals without RJ12 connection)
- ClubSport Shifter (all versions)
- ClubSport Handbrake
- All Fanatec Cockpits
- ClubSport DD Table Clamp
- ClubSport Table Clamp V2
- Podium Mounting Brackets (the ClubSport DD+ Wheel Base includes M6 T-nuts for side-mounting; the Podium Mounting Brackets require the use of M6 bolts and washers)
Note: ClubSport Static Shifter Paddles are not supported.
Platforms
- This product is compatible with all PlayStation®4 consoles and PlayStation®5 consoles.
- This product is compatible with PC on all major racing games.
- Other platforms: Compatibility with other platforms depends on the used steering wheel. For more information, please check the product page of the steering wheel you plan to use.
Please note: PC and other platform compatibility is tested by Fanatec, but not tested nor endorsed by Sony Interactive Entertainment Inc.
What’s Included
CSL Elite Steering Wheel Porsche Vision GT
- CSL Elite Steering Wheel Porsche Vision GT
- QR2 Lite Wheel-Side preinstalled
- Quick Guide
Gran Turismo DD Pro Wheel Base
- Gran Turismo DD Pro direct drive wheel base
- QR2 Lite Base-Side (Type-C) (preinstalled)
- Boost Kit 180 power supply (regional, packaged separately)
- 4x T-nuts for rail mount system
- PlayStation® button caps
- USB cable (Type-C to Type-A)
- Quick Guide
CSL Pedals
- Throttle pedal unit
- Brake pedal unit with PU foam damper
- Heel rest
- 1x Wheel Base connection cable RJ12/RJ12 (~2m)
- 1x Torx key
- M4x12 mounting bolts (only to mount pedals to heel rest)
- Hard-mounting spacers
- Replacement rubber feet (floor protection)
- 1x Quick Guide
Special Notes
- Not suitable for children. A Direct Drive Wheel Base is not a toy! The fast movements of the steering wheel and strong torque can be dangerous. Please read the safety instructions.
