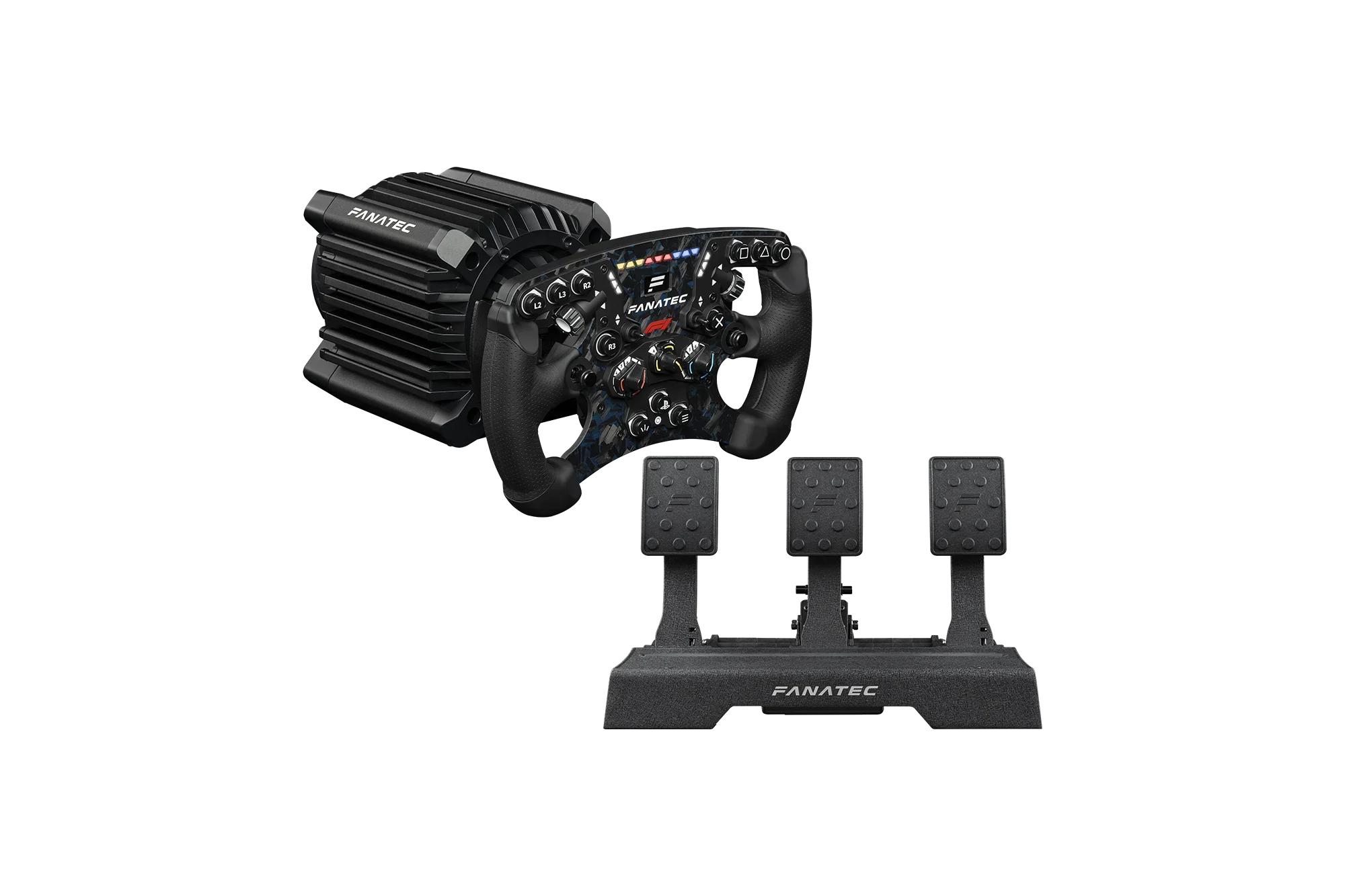

ClubSport Racing Wheel F1® + CSL Elite V2 Ready2Race Bundle (15 Nm)
$2,394.00
The ClubSport Racing Wheel F1® combines an advanced Formula Steering Wheel with a unique blue forged carbon finish and the 15 Nm ClubSport DD+ Wheel Base to deliver consistent torque performance and detailed force feedback. Our partnership with Sony Interactive Entertainment means that the ClubSport Racing Wheel F1® works seamlessly with all PlayStation®4 and PlayStation®5 systems.
3-Year Warranty
BUNDLE CONTENTS:
-
1x ClubSport Racing Wheel F1® (15 Nm) -
1x CSL Elite Pedals V2
ClubSport Racing Wheel F1® + CSL Elite V2 Ready2Race Bundle (15 Nm)
FEEL THE PRECISION OF FORMULA 1® WITH EVERY LAP YOU TAKE.
The ClubSport Racing Wheel F1® combines an advanced Formula Steering Wheel with a unique blue forged carbon finish and the 15 Nm ClubSport DD+ Wheel Base to deliver consistent torque performance and detailed force feedback. Our partnership with Sony Interactive Entertainment means that the ClubSport Racing Wheel F1® works seamlessly with all PlayStation®4 and PlayStation®5 systems.
DESIGNED FOR F1® SIM RACING.
Officially licensed by Formula 1®, the iconic 270 mm ClubSport Formula wheel features a stunning blue forged carbon finish with perforated leather grips. Programmable RGB RevLEDs can show motor RPM and optimal shifting point, and the two RGB FlagLEDs that can be triggered by telemetry, such as tyre slip, fuel level, or warning flags.
INTUITIVE INPUTS.
The CNC-machined aluminium magnetic shifters have an authentic feel, with a positive and satisfying click. The wheel is packed with 11 buttons, 12-way multi-position switches, thumb encoders, toggle switches – all laid out ergonomically so you can quickly train your muscle memory. Fine-tune the force feedback while you drive using the OLED display and Tuning Menu.
THE MOST ADVANCED DIRECT DRIVE SYSTEM OFFICIALLY LICENSED FOR PLAYSTATION®5.
The combination of PlayStation®5 console performance with FANATEC® Direct Drive technology delivers responsive and incredibly dynamic force feedback. Of course, the ClubSport DD+ Wheel Base works on PC too.
SMOOTH OPERATOR.
By splitting the rotor into offset segments, cogging torque is naturally reduced. Combined with our patented FluxBarrier technology which increases efficiency and smoothness, the result is crystal-clear force feedback information in every driving situation.
CONSISTENT TORQUE, LAP AFTER LAP.
Engineered to meet strict cooling requirements, the ClubSport DD+ is the most thermally stable Wheel Base in its class, so you can have absolute confidence that the torque output and force feedback will remain consistent, no matter how long you drive.
Magnetic sensors.
Both the throttle and brake axes use precision Hall-effect sensors. By measuring pedal position with magnets, the system is contactless, meaning no wear on the sensors and consistent performance.
Solid, full-metal design.
The pedal arms, faces, and heel rest are made from cast and machined aluminium, with a durable powder-coated finish. Additional bracing towards the rear of the assembly provides extra stiffness and stability under heavy load.
Brake with confidence.
The brake pedal has been completely reworked, with an all-new custom load cell sensor.
Muscle memory.
The load cell sensor measures pressure rather than position. Tuned to a genuine 90 kg (adjustable) at the pedal plate, this realistic level of resistance trains your muscle memory and you’ll brake with confidence and precision every time.

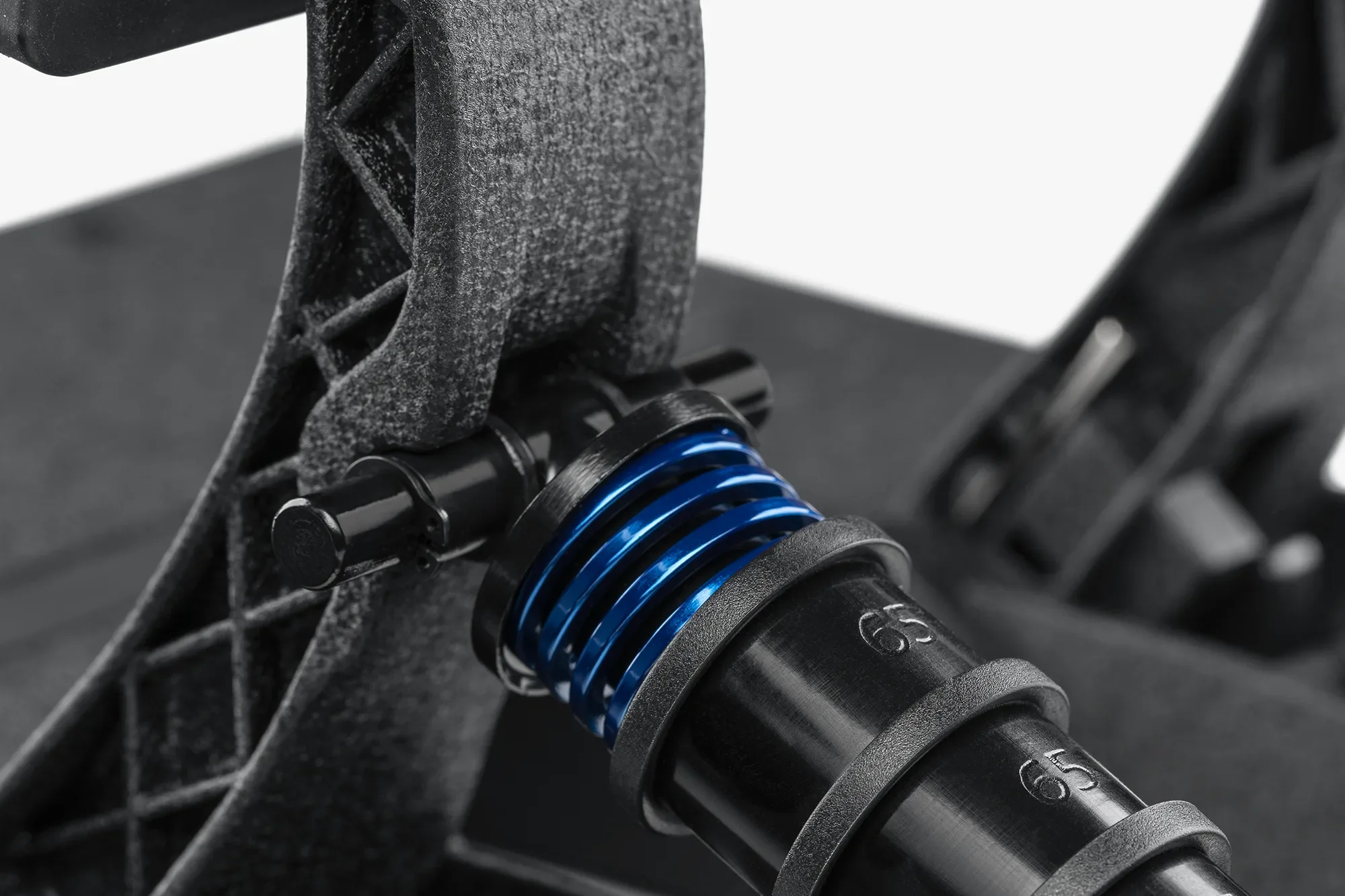

Dual-stage brake action.
The adjustable, tool-free elastomer stack incorporates a coil spring to simulate the initial movement of the brake pad to the disc. You can easily adjust the firmness of the pedal travel by selecting between elastomer springs (included).
Features

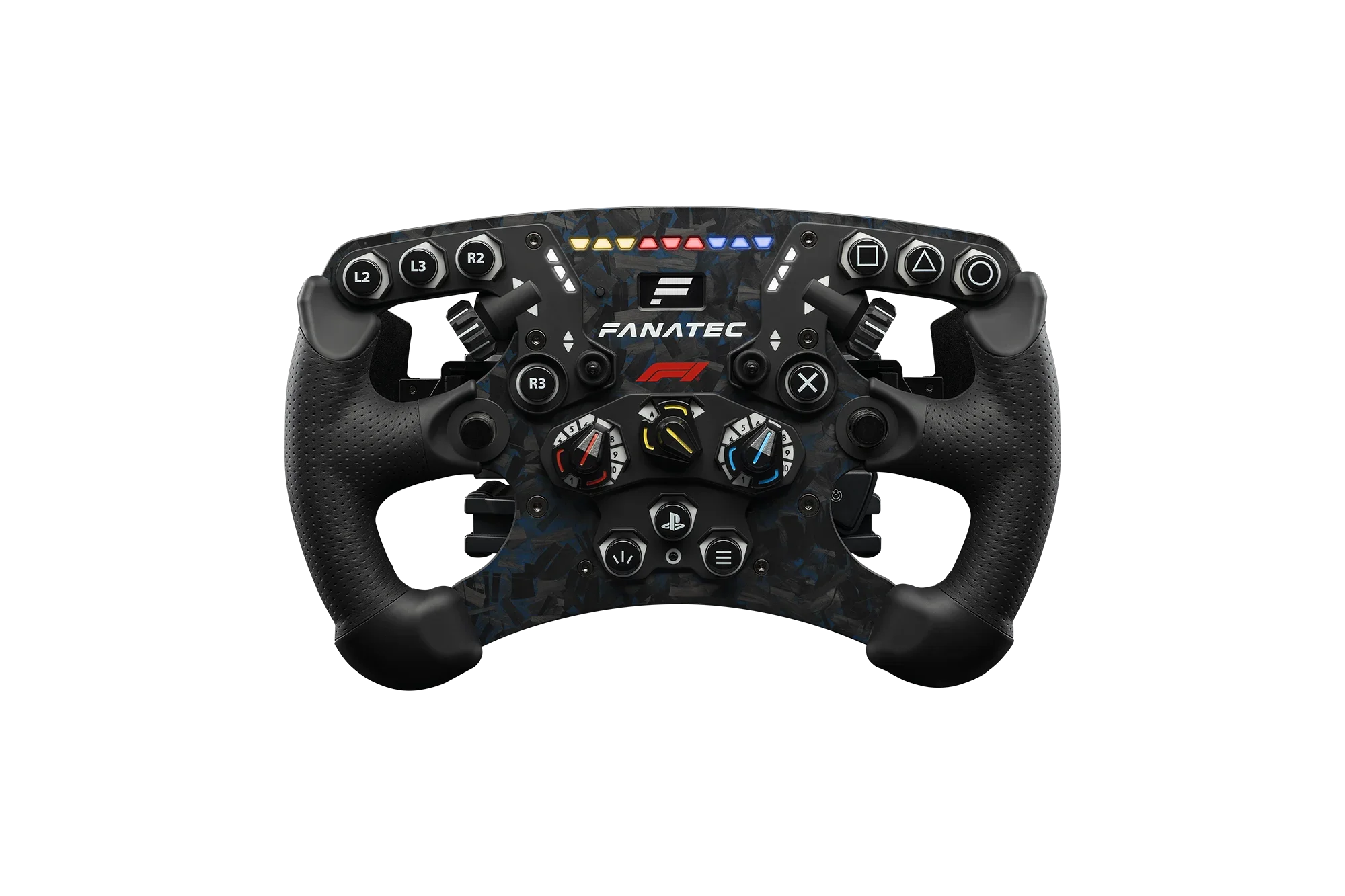

ClubSport Steering Wheel F1® PS5:
- Officially licensed by Formula 1®
- Officially licensed for PlayStation®5 (compatibility is achieved via the Wheel Base)
- Unique to ClubSport Racing Wheel F1® package, not sold separately
- F1®-style steering wheel with a compact 270 mm diameter for fast movements and reactions
- Strong, 5 mm-thick blue carbon fibre front plate; unique finish to each wheel
- Genuine leather grips (perforated for breathability)
- ClubSport Magnetic Paddle Module preinstalled
- 3 mm-thick, black anodised aluminium paddle plates
- Paddle module cage made of diecast and CNC machined aluminium
- Neodymium magnets

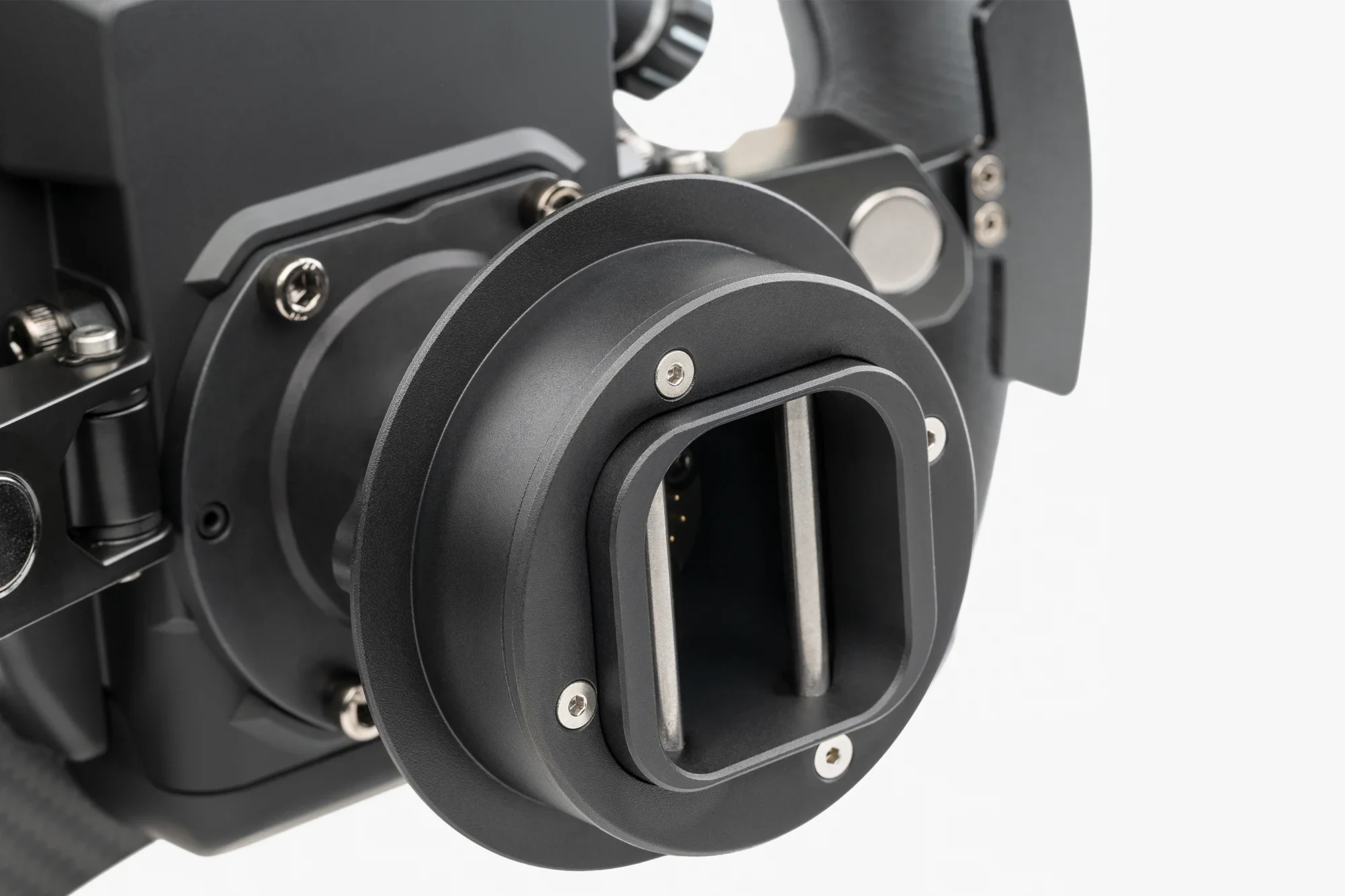

- QR2 Wheel-Side preinstalled
- Diecast aluminium with CNC-machined and black anodised finish
- Precision fit means you feel all the detail of FullForce technology
- 11 buttons plus four paddles with ultra-reliable switches
- Two 2-way toggle switches
- Two 12-way multi-position switches with encoder functionality
- 7-way FunkySwitch™: left, right, up, and down directional inputs, push button, and rotary encoder functionality
- Analogue joystick
- Two thumb encoders easily reachable while driving without releasing the grips
- RevLEDs with nine multi-colour LEDs to show motor RPM and optimal shifting point as games program through the Fanatec SDK
- Two FlagLEDs with three multi-colour LEDs each to indicate tyre slip, flag warnings, pit limiter, and more, as games program through the Fanatec SDK
- 1″ 128×64 white OLED display to show telemetry data like speed or gear as games program through the Fanatec SDK
- Tuning functions with OLED display to adjust settings independent from the game and during gameplay
ClubSport DD+ Wheel Base:
- Officially licensed for PlayStation®5 consoles and PlayStation®4 consoles
- Direct Drive servo motor
- Custom-designed in Germany for the ClubSport DD+ specifically for sim racing
- 15 Nm consistent torque
- Optimised skew angle on rotor magnets reduces cogging torque
- Patented, exclusive FluxBarrier technology improves motor efficiency and smoothness
- FullForce technology
- New force feedback protocol developed for Fanatec Direct Drive
- Super low-latency detail effects through fine motor frequency control
- Passively cooled Wheel Base
- Most thermally stable Wheel Base in its class
- Consistent performance under the most extreme conditions
- QR2
- Wheel Base optimised for QR2 from the ground-up
- Electronics module integrated with shaft
- Diecast aluminium with CNC-machined finish
- Motorsport-derived quick release system
- QR1 downgrade possible (sold separately, coming soon)
- Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
- Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
- High-resolution (contactless) Hall-position-sensor
- Rotation: 2520 degrees (electronically limited, adjustable)
- Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data between Steering Wheel and Wheel Base without the need for a mechanical limiter (allows for high steering angle settings)
- Compatible with entire Fanatec ecosystem (see Compatibility section for details)
- T-nut rail system on sides and bottom for easily adjustable hard-mounting
- Ports:
- Power supply
- USB-C to PC / console
- Shifter 1
- Shifter 2 (Sequential only)
- Pedals
- Handbrake
- CAN (for future Fanatec peripherals)
- Front-mounted threaded inserts for future Fanatec accessories. Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.

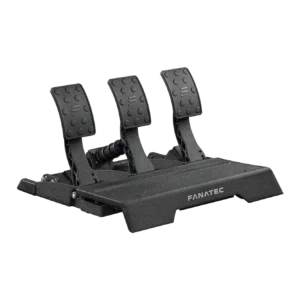

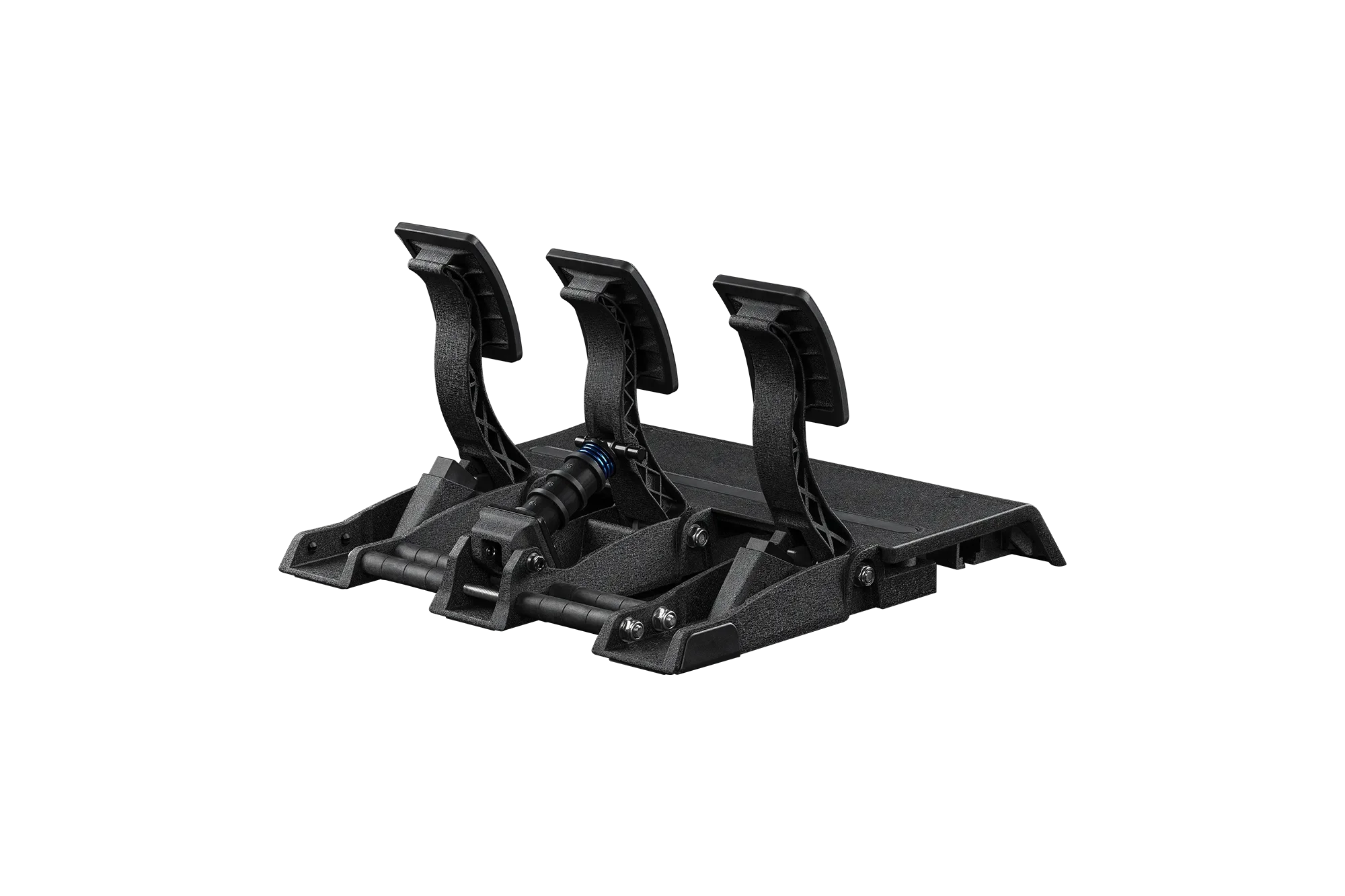

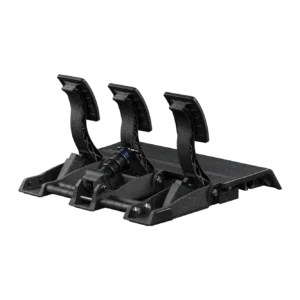

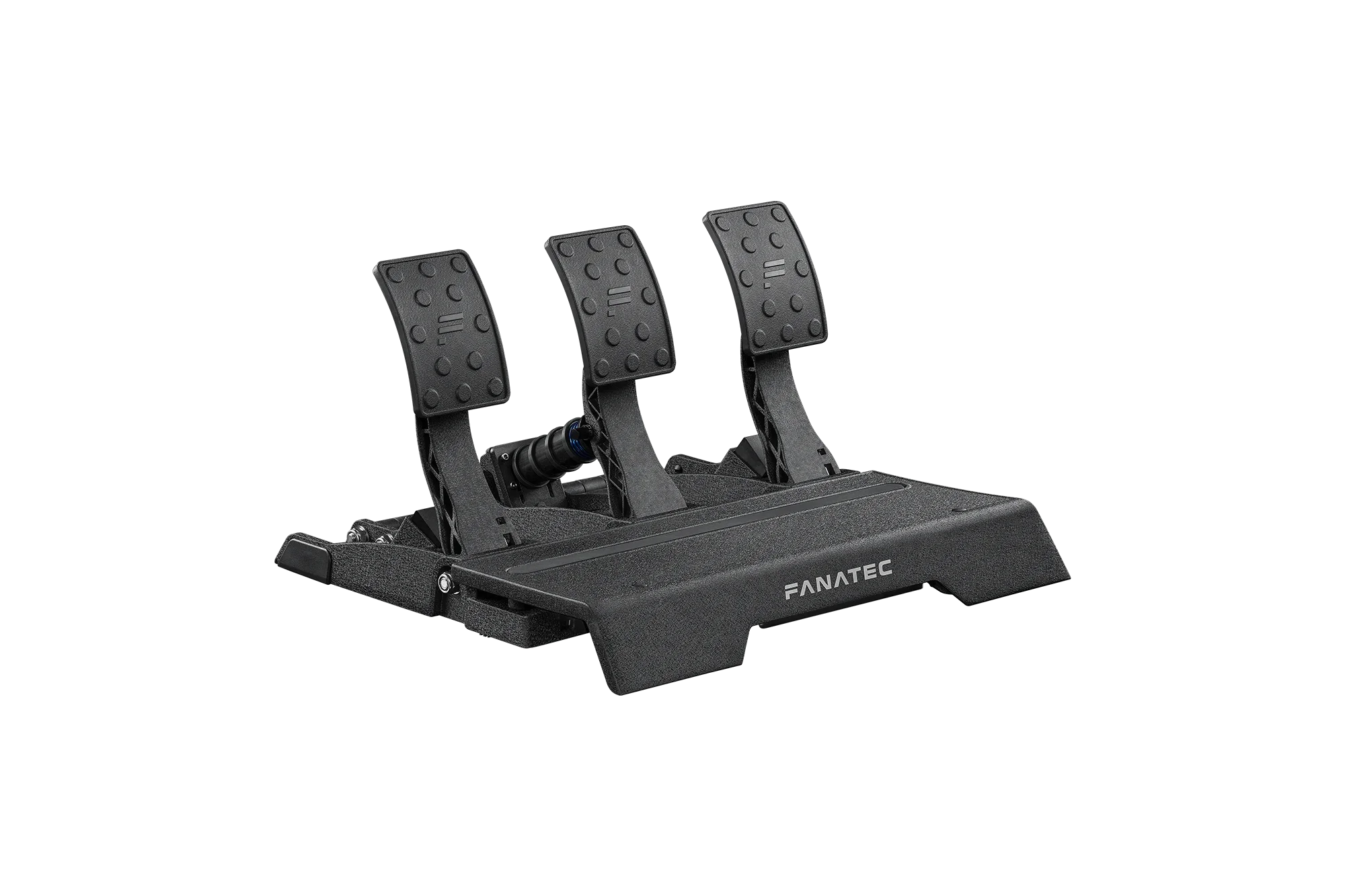

CSL Elite Pedals V2
- High-performance three-pedal set (clutch, brake, throttle)
- Contactless Hall sensors on both clutch and throttle for high precision and durability
- All-new load cell brake system
- Up to 90 kg measured foot force on pedal plate (load cell sensor rated >200 kg)
- Load cell sensitivity (approx. 10 kg minimum) adjustable via Tuning Menu (or Fanatec Control Panel on PC)*
- Elastomer stack combined with load cell sensor creates a realistic braking feel
- Elastomer springs with 65, 75, and 85 Shore hardness included (tool-free adjustment)
- ‘Dual-stage’ preload feeling with metal spring and elastomer
- Alternative metal spring also included for stiffer preload
- Pedal arms, faces, and heel rest made from cast and machined aluminium with durable power-coated finish
- Fully assembled out of the box, plug and play
- Easily configurable as a two-pedal set
- Pedal position can be adjusted sideways along heel rest
- Pedals can be individually mounted without heel rest, inverted mounting possible (hardware not included)
- Detachable rubber pedal covers
- Revised structure on all pedals for greater durability
- Improved access to hard-mounting points
- Dedicated handbrake port
- RJ12 or USB connection
- Connect directly to all compatible Fanatec Wheel Bases via RJ12 (recommended)
- Use as a standalone USB input device (PC only)
Compatibility
The ClubSport DD+ Wheel Base is compatible with:
- All Fanatec Steering Wheels (with QR2)
- All Fanatec Pedals (adapter cables might be required on pedals without RJ12 connection)
- ClubSport Shifter (all versions)
- ClubSport Handbrake
- All Fanatec Cockpits
- ClubSport DD Table Clamp
- ClubSport Table Clamp V2
- Podium Mounting Brackets (the ClubSport DD+ Wheel Base includes M6 T-nuts for side-mounting; the Podium Mounting Brackets require the use of M6 bolts and washers)
Note: ClubSport Static Shifter Paddles are not supported.
Platforms
- This product is compatible with all PlayStation®4 consoles and PlayStation®5 consoles.
- This product is compatible with PC on all major racing games.
- Other platforms: Compatibility with other platforms depends on the used steering wheel. For more information, please check the product page of the steering wheel you plan to use.
Please note: PC and other platform compatibility is tested by Fanatec, but not tested nor endorsed by Sony Interactive Entertainment.
What’s Included
ClubSport Racing Wheel F1®
- ClubSport Steering Wheel F1® PS5
- QR2 Wheel-Side (preinstalled)
- ClubSport DD+ Wheel Base
- QR2 Base-Side (Type-F) (preinstalled)
- Power Supply (regional)
- 4x T-nuts for rail mount system
- USB cable (Type-C to Type-A)
- Quick Guide
CSL Elite Pedals V2
- CSL Elite Pedals V2 (three-pedal set, fully assembled)
- Alternative elastomers and metal spring for brake tuning
- 2x Brake pedal assembly helper
- 1x Wheel Base connection cable RJ12/RJ12 (~3 m)
- 1x USB cable (~3 m)
- 2x Wrench (13 mm)
- 1x Allen key (6 mm)
- 1x Allen key (4 mm)
- 1x Quick Guide
- 1x Sticker Set
Special Notes
- Not suitable for children. The fast movements of the steering wheel and strong torque can be dangerous. Please read the safety instructions.
- Steering Wheels fitted with QR1 Lite Wheel-Side or QR2 Lite Wheel-Side will be limited to 8 Nm torque.
- *When connected via RJ12 directly to the wheel base, brake sensitivity is adjusted using the BRF setting in the Tuning Menu, accessed by supported Fanatec steering wheels.
- Bolts for hard-mounting the pedals are not included, because the required bolt length differs depending on the thickness of the mounting plate or type of mounting solution. See product manual and drilling template for more information.
