ClubSport Racing Wheel F1® (15 Nm)
$1,892.00
The ClubSport Racing Wheel F1® combines an advanced Formula Steering Wheel with a unique blue forged carbon finish and the 15 Nm ClubSport DD+ to deliver consistent torque. FullForce technology fuses high-fidelity vibration cues with the core force feedback signal to deliver a more immersive driving experience. Officially licensed for PS5® and PS4® consoles.
ClubSport Racing Wheel F1® (15 NM)
EEL THE PRECISION OF FORMULA 1® WITH EVERY LAP YOU TAKE.
DESIGNED FOR F1® SIM RACING.
INTUITIVE INPUTS.
THE MOST ADVANCED DIRECT DRIVE SYSTEM OFFICIALLY LICENSED FOR PLAYSTATION®5.
The combination of PlayStation®5 console performance with FANATEC® Direct Drive technology delivers responsive and incredibly dynamic force feedback. Of course, the ClubSport DD+ Wheel Base works on PC too.
SMOOTH OPERATOR.
By splitting the rotor into offset segments, cogging torque is naturally reduced. Combined with our patented FluxBarrier technology which increases efficiency and smoothness, the result is crystal-clear force feedback information in every driving situation.
CONSISTENT TORQUE, LAP AFTER LAP.
Engineered to meet strict cooling requirements, the ClubSport DD+ is the most thermally stable Wheel Base in its class, so you can have absolute confidence that the torque output and force feedback will remain consistent, no matter how long you drive.
LIGHTNING FAST ACCELERATION.
The speed of the ClubSport DD+ servo motor allows us to fine-tune its behaviour with more accuracy than any previous Fanatec Wheel Base. This means your steering wheel can feel very active, clearly communicating the smallest details, while also feeling perfectly stable, and resistant to unwanted oscillation.
FULLFORCE: FORCE FEEDBACK 2.0 FOR DIRECT DRIVE.
The existing force feedback protocol was designed for gear and belt-driven devices – the only hardware available at the time. FullForce is a new force feedback protocol tailored specifically for FANATEC® Direct Drive. Leveraging the instantaneous response and zero backlash of direct drive technology, FullForce generates high-frequency vibrations for a new level of immersive effects. Feel the engine revs, and details of the road surface like never before. Only FullForce gives you the full experience of driving a race car.
PRECISION RESPONSE.
Class-leading slew rate performance combined with the powerful processor makes every motor reaction incredibly fast and dynamic, while remaining perfectly stable. This behaviour lends itself to traditional force feedback signals as well as enhanced FullForce signals (in supported games).
Features

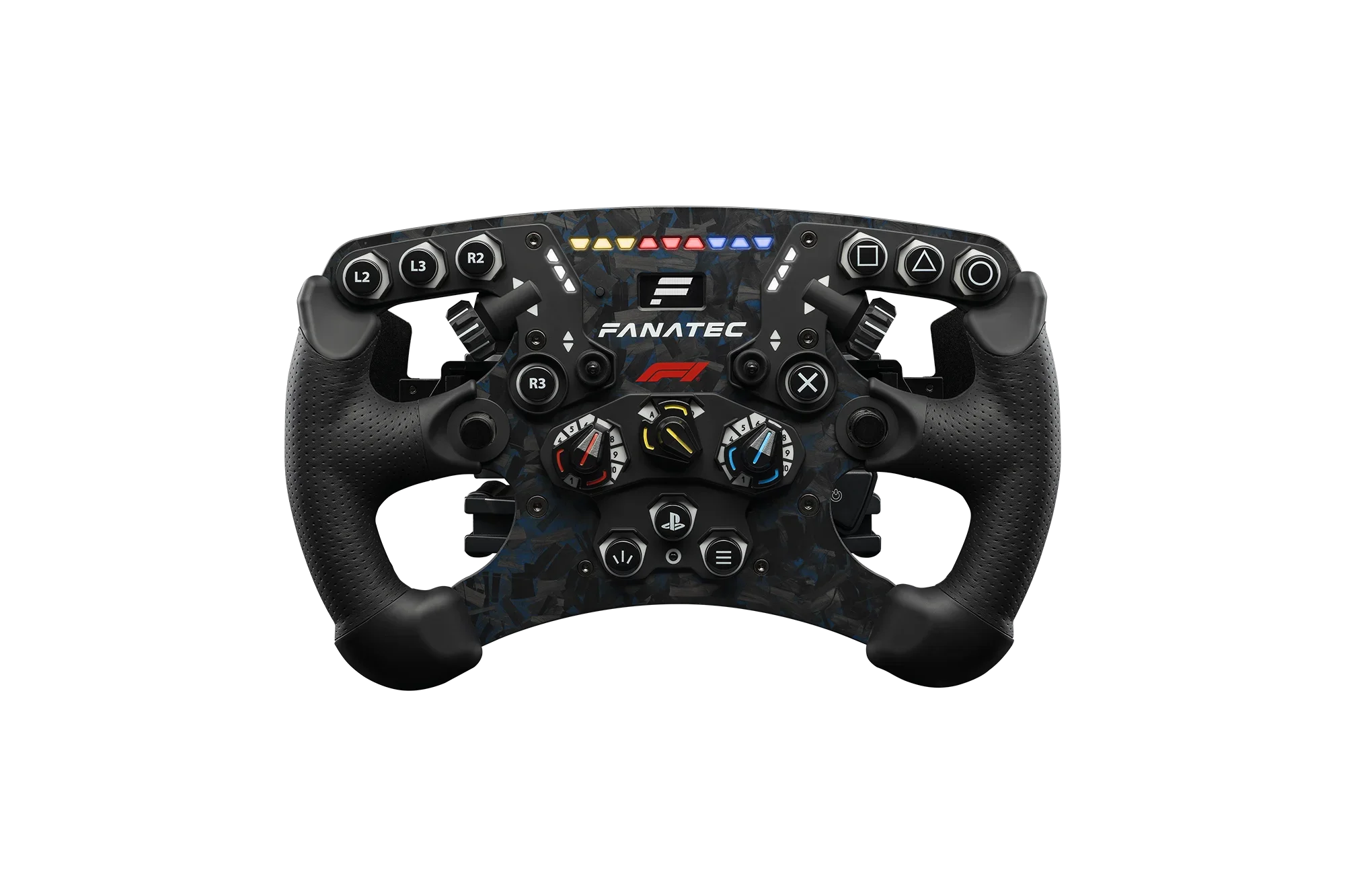

ClubSport Steering Wheel F1® PS5:
- Officially licensed by Formula 1®
- Officially licensed for PlayStation®5 (compatibility is achieved via the Wheel Base)
- Unique to ClubSport Racing Wheel F1® package, not sold separately
- F1®-style steering wheel with a compact 270 mm diameter for fast movements and reactions
- Strong, 5 mm-thick blue carbon fibre front plate; unique finish to each wheel
- Genuine leather grips (perforated for breathability)
- ClubSport Magnetic Paddle Module preinstalled
- 3 mm-thick, black anodised aluminium paddle plates
- Paddle module cage made of diecast and CNC machined aluminium
- Neodymium magnets

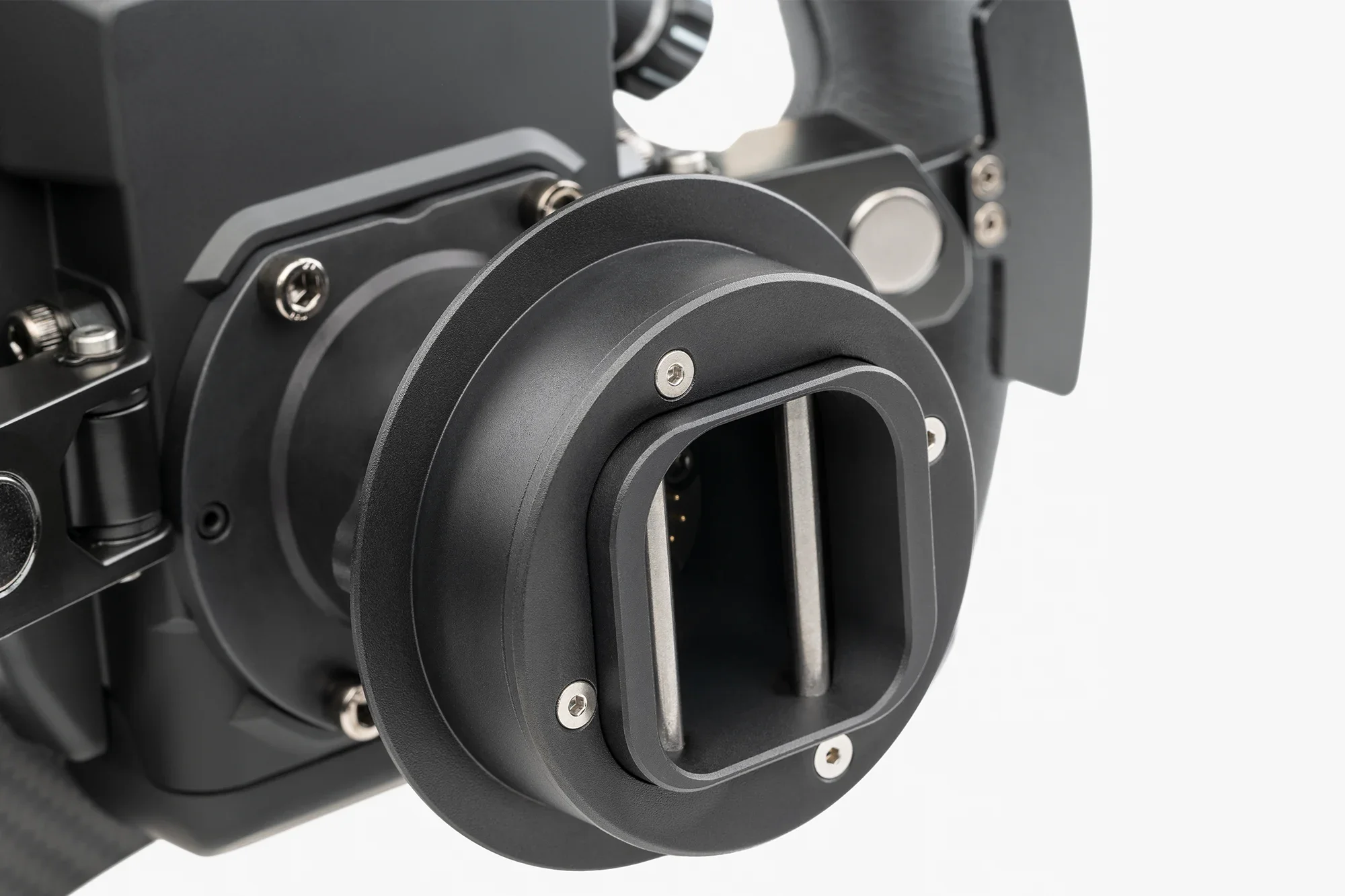

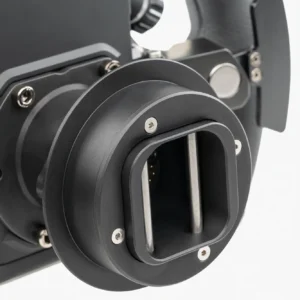

- QR2 Wheel-Side preinstalled
- Diecast aluminium with CNC-machined and black anodised finish
- Precision fit means you feel all the detail of FullForce technology
- 11 buttons plus four paddles with ultra-reliable switches
- Two 2-way toggle switches
- Two 12-way multi-position switches with encoder functionality
- 7-way FunkySwitch™: left, right, up, and down directional inputs, push button, and rotary encoder functionality
- Analogue joystick

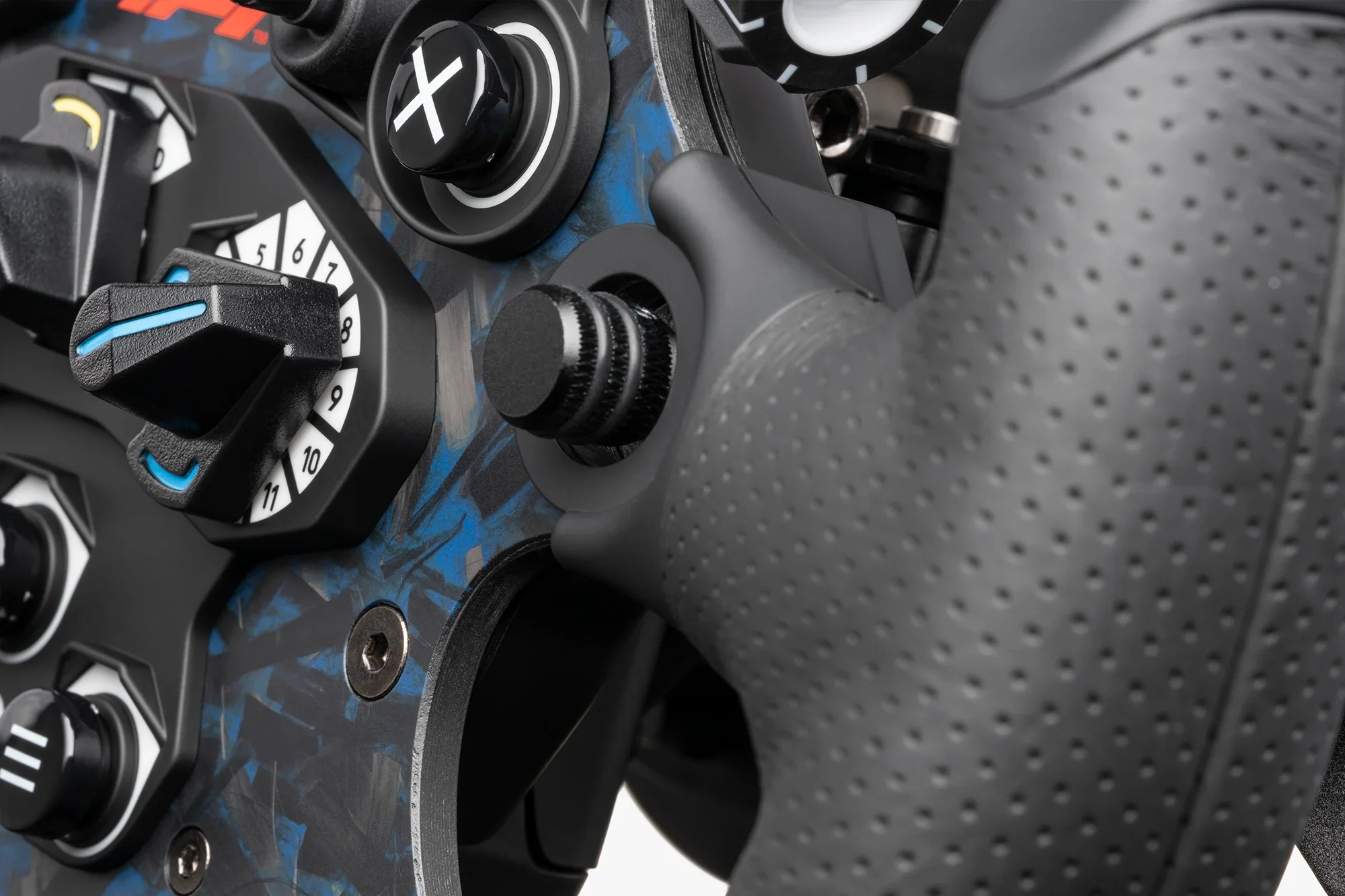

- Two thumb encoders easily reachable while driving without releasing the grips
- RevLEDs with nine multi-colour LEDs to show motor RPM and optimal shifting point as games program through the Fanatec SDK
- Two FlagLEDs with three multi-colour LEDs each to indicate tyre slip, flag warnings, pit limiter, and more, as games program through the Fanatec SDK
- 1″ 128×64 white OLED display to show telemetry data like speed or gear as games program through the Fanatec SDK
- Tuning functions with OLED display to adjust settings independent from the game and during gameplay
ClubSport DD+ Wheel Base:
- Officially licensed for PlayStation®5 consoles and PlayStation®4 consoles
- Direct Drive servo motor
- Custom-designed in Germany for the ClubSport DD+ specifically for sim racing
- 15 Nm consistent torque
- Optimised skew angle on rotor magnets reduces cogging torque
- Patented, exclusive FluxBarrier technology improves motor efficiency and smoothness
- FullForce technology
- New force feedback protocol developed for Fanatec Direct Drive
- Super low-latency detail effects through fine motor frequency control
- Passively cooled Wheel Base
- Most thermally stable Wheel Base in its class
- Consistent performance under the most extreme conditions
- QR2
- Wheel Base optimised for QR2 from the ground-up
- Electronics module integrated with shaft
- Diecast aluminium with CNC-machined finish
- Motorsport-derived quick release system
- QR1 downgrade possible (sold separately, coming soon)
- Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
- Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
- High-resolution (contactless) Hall-position-sensor
- Rotation: 2520 degrees (electronically limited, adjustable)
- Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data between Steering Wheel and Wheel Base without the need for a mechanical limiter (allows for high steering angle settings)
- Compatible with entire Fanatec ecosystem (see Compatibility section for details)
- T-nut rail system on sides and bottom for easily adjustable hard-mounting
- Ports:
- Power supply
- USB-C to PC / console
- Shifter 1
- Shifter 2 (Sequential only)
- Pedals
- Handbrake
- CAN (for future Fanatec peripherals)
- Front-mounted threaded inserts for future Fanatec accessories. Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.
Compatibility
The ClubSport DD+ Wheel Base is compatible with:
- All Fanatec Steering Wheels (with QR2)
- All Fanatec Pedals (adapter cables might be required on pedals without RJ12 connection)
- ClubSport Shifter (all versions)
- ClubSport Handbrake
- All Fanatec Cockpits
- ClubSport DD Table Clamp
- ClubSport Table Clamp V2
- Podium Mounting Brackets (the ClubSport DD+ Wheel Base includes M6 T-nuts for side-mounting; the Podium Mounting Brackets require the use of M6 bolts and washers)
Note: ClubSport Static Shifter Paddles are not supported.
Platforms
- This product is compatible with all PlayStation®4 consoles and PlayStation®5 consoles.
- This product is compatible with PC on all major racing games.
- Other platforms: Compatibility with other platforms depends on the used steering wheel. For more information, please check the product page of the steering wheel you plan to use.
Please note: PC and other platform compatibility is tested by Fanatec, but not tested nor endorsed by Sony Interactive Entertainment.
What’s Included
- ClubSport Steering Wheel F1® PS5
- QR2 Wheel-Side (preinstalled)
- ClubSport DD+ Wheel Base
- QR2 Base-Side (Type-F) (preinstalled)
- Power Supply (regional)
- 4x T-nuts for rail mount system
- USB cable (Type-C to Type-A)
- Quick Guide
