CSL DD QR2 Ready2Race Bundle (8 Nm)
$792.00
With the CSL Steering Wheel P1 V2, we’ve made a fully featured wheel at the lowest price that doesn’t compromise on performance. It is an ideal starter wheel for the CSL DD.
3-Year WarrantyBUNDLE CONTENTS:
-
1x Boost Kit 180 (8Nm) -
1x CSL DD QR2 (5 Nm) -
1x CSL Pedals -
1x CSL Steering Wheel P1 V2 (QR2 Lite)
CSL DD QR2 Ready2Race Bundle (8 Nm)
High performance. Low price.
With the CSL Steering Wheel P1 V2, we’ve made a fully featured wheel at the lowest price that doesn’t compromise on performance. It is an ideal starter wheel for the CSL DD.
Multi-purpose design
The 300 mm diameter is suitable for many vehicle types, and the lightweight construction retains fine force feedback detail even at low torque settings.
Tactile, durable
The internal structure of the polymer casing means that the wheel is strong and durable. The rubberised grip provides just the right amount of friction, and is comfortable to use for long sessions, even with sweaty hands.

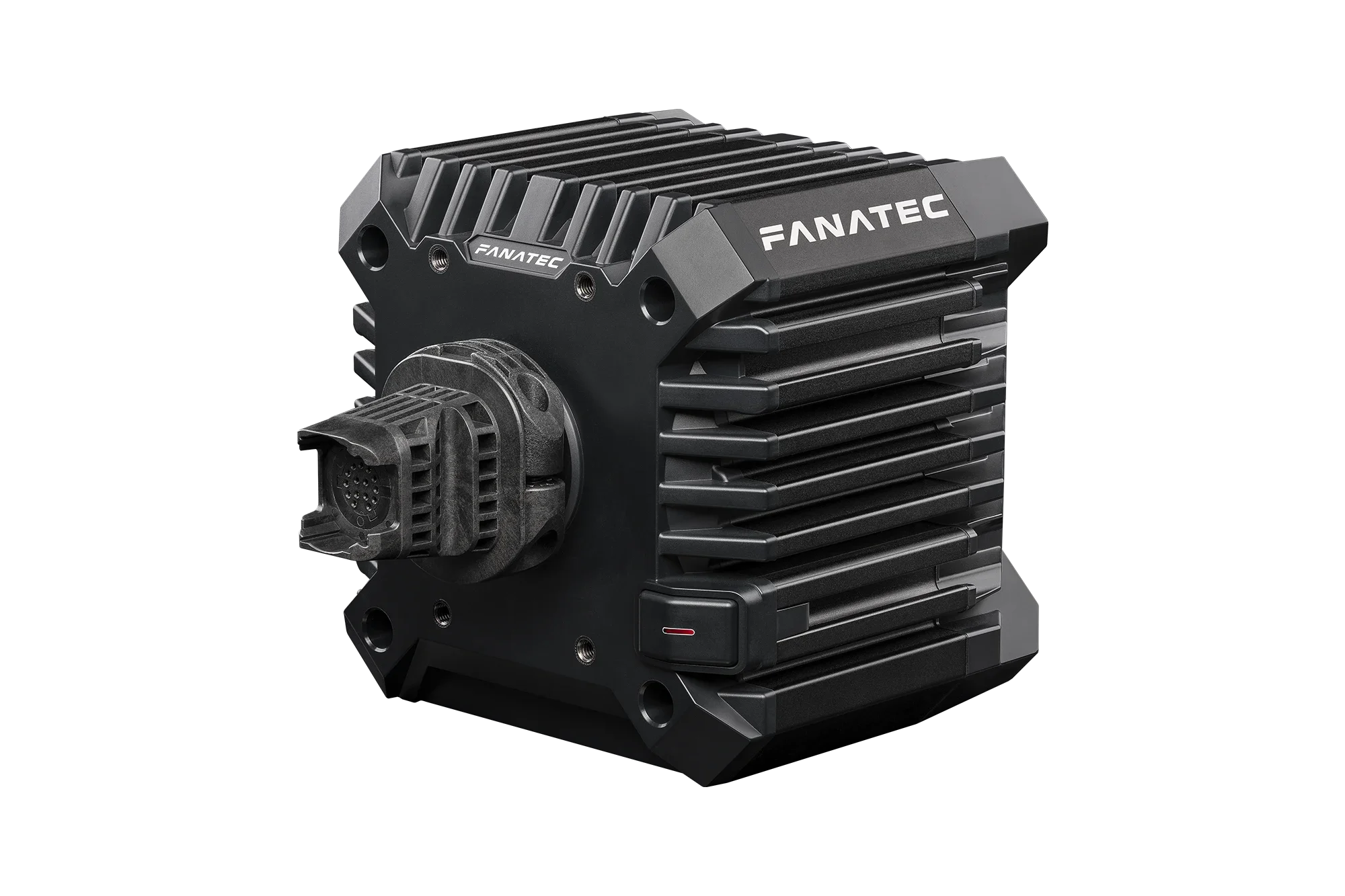

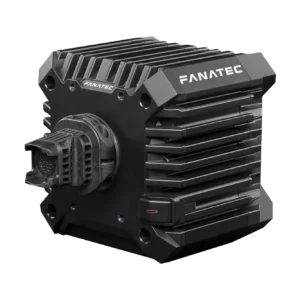

CSL DD. Now with QR2.
Bring the race track to your home with exceptional Direct Drive performance in a compact design. Now including QR2, you’ll experience even more precision and detail in the force feedback.
FANATEC® Direct-Drive technology.
When the steering wheel is directly mounted to the motor shaft, there’s no belt or gear drive to dilute the force feedback effects. Choose Direct Drive by Fanatec and experience your favourite racing simulations as the developers intended.
Plug and Play.
Our strong relationship with game developers means the CSL DD has broad compatibility and consistent behaviour across many popular titles. The Standard Tuning Menu has been simplified, allowing beginners to start quickly without having to worry about settings. The Advanced Tuning Menu remains for enthusiasts.
Maximum Strength
The CSL DD QR2 (8 Nm) package includes the Boost Kit 180, a powerful 180W power supply that unlocks the full performance of the direct drive motor.
Efficient and responsive
The efficiency of the CSL DD motor technology means dynamic force-feedback performance is contained in a small footprint. This is also the first industrial motor to feature a carbon fibre composite motor shaft, which increases responsiveness and acceleration significantly due to low rotational masses.
8 Nm peak torque
Using the included Boost Kit 180, the CSL DD operates in its 8 Nm mode. This provides much stronger feedback, and as a result, you’ll feel the subtle cues more clearly too. This high level of torque can be sustained without the need for active cooling, with the extruded and CNC-machined aluminium casing acting as the structural chassis as well as the heatsink.
Pedal to the metal.
The CSL Pedals are solidly built from steel. Precise and durable sensors allow you to stay in control with smooth throttle and brake inputs.
Heavy steel construction.
The stability of the all-metal design means it is built to last. The stiffer spring on the brake pedal combined with the PU foam damper provides a realistic, progressive feeling.
Magnetic sensors.
Both the throttle and brake axes use precision Hall-effect sensors. By measuring pedal position with magnets, the system is contactless, meaning no wear on the sensor and consistent performance.
Features

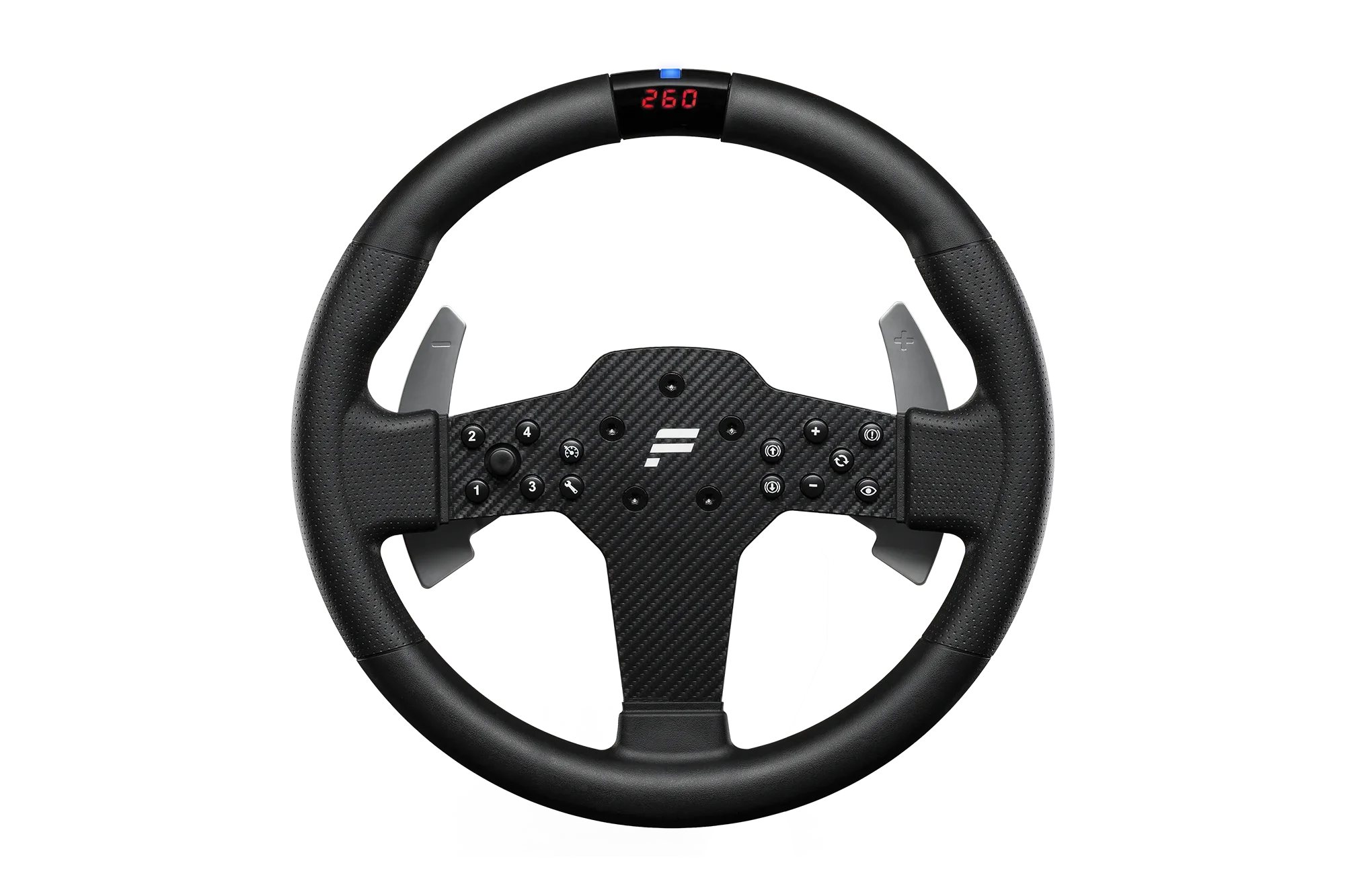

CSL Steering Wheel P1 V2:
- Realistic size, suitable for many driving styles (300 mm)
- Rubberised wheel rim with improved ergonomics
- Integrated RevStripe™, which is a combined centre stripe and an engine RPM indicator, using a multi-colour LED
- Three-digit LED display smoothly integrated into the wheel rim below the RevStripe™ allows telemetry data such as speed or gears to be displayed in compatible games or third-party software
- Metal shifter paddles, snap-dome-activated “click” feeling
- 4-way direction pad with push button
- Tuning functions with LED display to adjust settings independent from the game and during gameplay (see description of compatible wheel base/racing wheel for details)
- QR2 Lite Wheel-Side preinstalled
CSL DD QR2:
- Direct-Drive system delivers instant, detailed force feedback
- Boost Kit 180 included
- Linear, consistent performance (8 Nm peak torque)
- Patented, exclusive FluxBarrier technology optimises motor efficiency and smoothness
- Full Fanatec SDK support ensures game compatibility out of the box for all major racing games
- Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
- Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
- High-resolution (contactless) Hall-position-sensor, same as Podium Series
- Steering axis made from carbon fibre-enhanced composite
- Fanless: wheel base housing is made from aluminium (passive heat sink, core structural component) with composite end caps
- Rotation: 2520 degrees (electronically limited, adjustable)
- Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data to steering wheels
- QR2 quick release system
- Motorsport-derived quick release
- Tapered shape naturally ensures a tight fit
- Carbon fibre-reinforced polyamide construction
- Exchangeable
- T-nut rail system on sides and bottom for easily adjustable hard-mounting
- Optional table clamp (sold separately), supports 5 to 60 mm table thickness
- Ports:
- Power supply
- USB-C to PC / console
- Fanatec DataPort-C
- Shifter 1
- Shifter 2 (Sequential only)
- Pedal
- Handbrake
- Front-mounted threaded inserts for Fanatec accessories (e.g. ClubSport Static Shifter Paddles, available separately). Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.
CSL Pedals:
- Two-pedal set (throttle and brake), upgradeable to three pedals (upgrade kits sold separately)
- All-metal construction (excluding pedal faces). Pedals are made from heavy steel, which helps to prevent the set from sliding on the floor (if not hard-mounted to a rig)
- Optional anodised aluminium pedal plates (CSL Pedals Tuning Kit, sold separately)
- Contactless Hall sensors (12-bit) on both brake and throttle for high precision and durability
- Brake pedal spring is stiffer than throttle pedal spring, PU foam damper adds additional resistance for progressive braking feel
- Upgrade to a three-pedal configuration with Clutch Kit or Load Cell Kit (sold separately)
- CSL Pedals Clutch Kit provides a third pedal for the lowest price
- CSL Pedals Load Cell Kit also provides a third pedal, and upgrades the brake and electronics
- Pedal position can be adjusted sideways along heel rest
- Height-adjustable pedal faces
- Modular design means inverted mounting to a rig is possible
- Vertical rear plates allow pedals to be easily braced against a wall or other vertical surface
- Pearl chrome plating on pedal bases and arms
- Black powder coating on heel rest
Compatibility
Peripherals
The CSL DD QR2 Wheel Base is compatible with:
- All Fanatec Steering Wheels (with QR2 Lite Wheel-Side, QR2 Wheel-Side, or QR2 Pro Wheel-Side)
- All Fanatec Pedals (adapter cables might be required on pedals without RJ12 connection)
- Fanatec ClubSport Shifters (including ClubSport Static Shifter Paddles)
- Fanatec ClubSport Handbrakes
- Fanatec Cockpits
- ClubSport DD Table Clamp
- CSL DD Table Clamp
- ClubSport Table Clamp V2
- Boost Kit 180
- Podium Mounting Brackets (the CSL DD includes M6 T-nuts for side-mounting; the Podium Mounting Brackets require the use of M6 bolts and washers)
Platforms
- PC: The CSL DD QR2 Wheel Base is compatible with PC when combined with a Fanatec Steering Wheel. Check the individual Steering Wheel product pages for Wheel Base compatibility.
- Xbox®: The CSL DD QR2 Wheel Base becomes compatible with Xbox One® and Xbox Series X|S when used with any Fanatec Xbox-licensed Steering Wheel.
- PlayStation®: The CSL DD QR2 Wheel Base is not compatible with any PlayStation® console and cannot be upgraded to achieve compatibility.

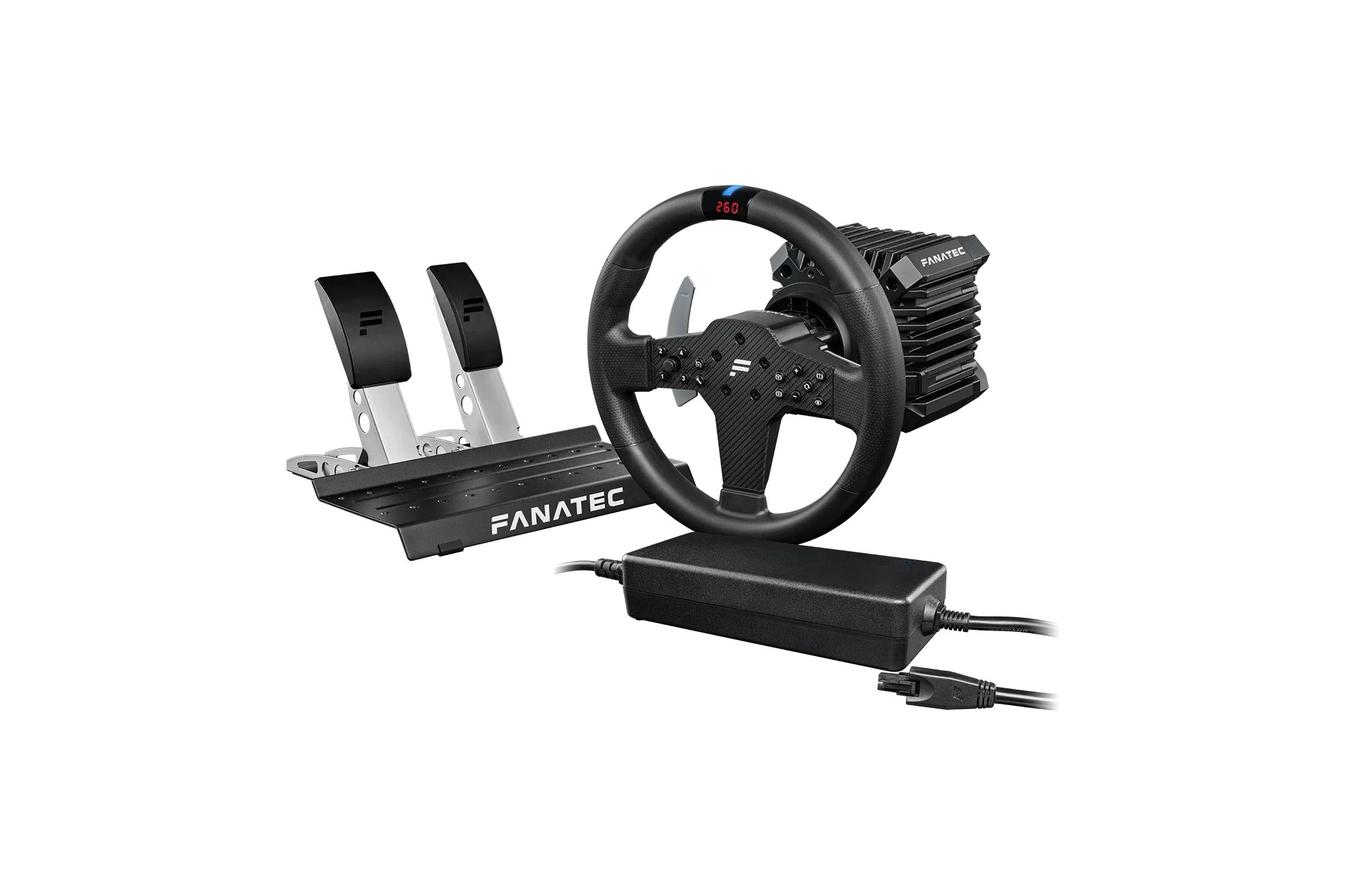

What’s Included
- CSL Steering Wheel P1 V2
- QR2 Lite Wheel-Side (preinstalled)
- CSL DD Wheel Base
- QR2 Lite Base-Side (preinstalled)
- Boost Kit 180
- CSL Pedals
Special Notes
- Not suitable for children. A Direct Drive Wheel Base is not a toy! The fast movements of the steering wheel and strong torque can be dangerous. Please read the safety instructions.
- Partial returns are not be possible for (limited time) deals, discounts or offers.
- The QR2 Lite Base-Side (Type-C) included with the CSL DD QR2 is compatible with all versions of the QR2 Wheel-Side (Lite, Regular, Pro) and does not cause any torque restriction, even with the Boost Kit 180. Click here for all the details about QR2.
- In order to enable features such as Steering Wheel LEDs in some titles, it may be necessary to switch the CSL DD to Compatibility Mode. This can also help with titles not working in standard PC mode. Check the Quick Guide for details.
- Only the standard 90W power supply or the Boost Kit 180 can be used with this Wheel Base. The use of any other power supply will void the Wheel Base warranty, is potentially dangerous and can lead to serious injury or death.
