Gran Turismo® DD Pro (8 Nm)

Heavy steel construction, magnetic sensors.

The all-metal design is built to last, and both the throttle and brake axes use contactless Hall sensors for precision and durability. The stiffer spring on the brake pedal combined with the PU foam damper provides a progressive feeling and more realism.

Adjustable and upgradeable.

Upgrade the pedals with Tuning Kit, Clutch Kit, or Load Cell Kit (upgrade kits sold separately). The Tuning Kit adds metal pedal faces, and the Clutch Kit adds a third pedal at the lowest possible price. The Load Cell Kit is an alternative to the Clutch Kit, also providing a third pedal, while upgrading the brake and main electronics.

Features

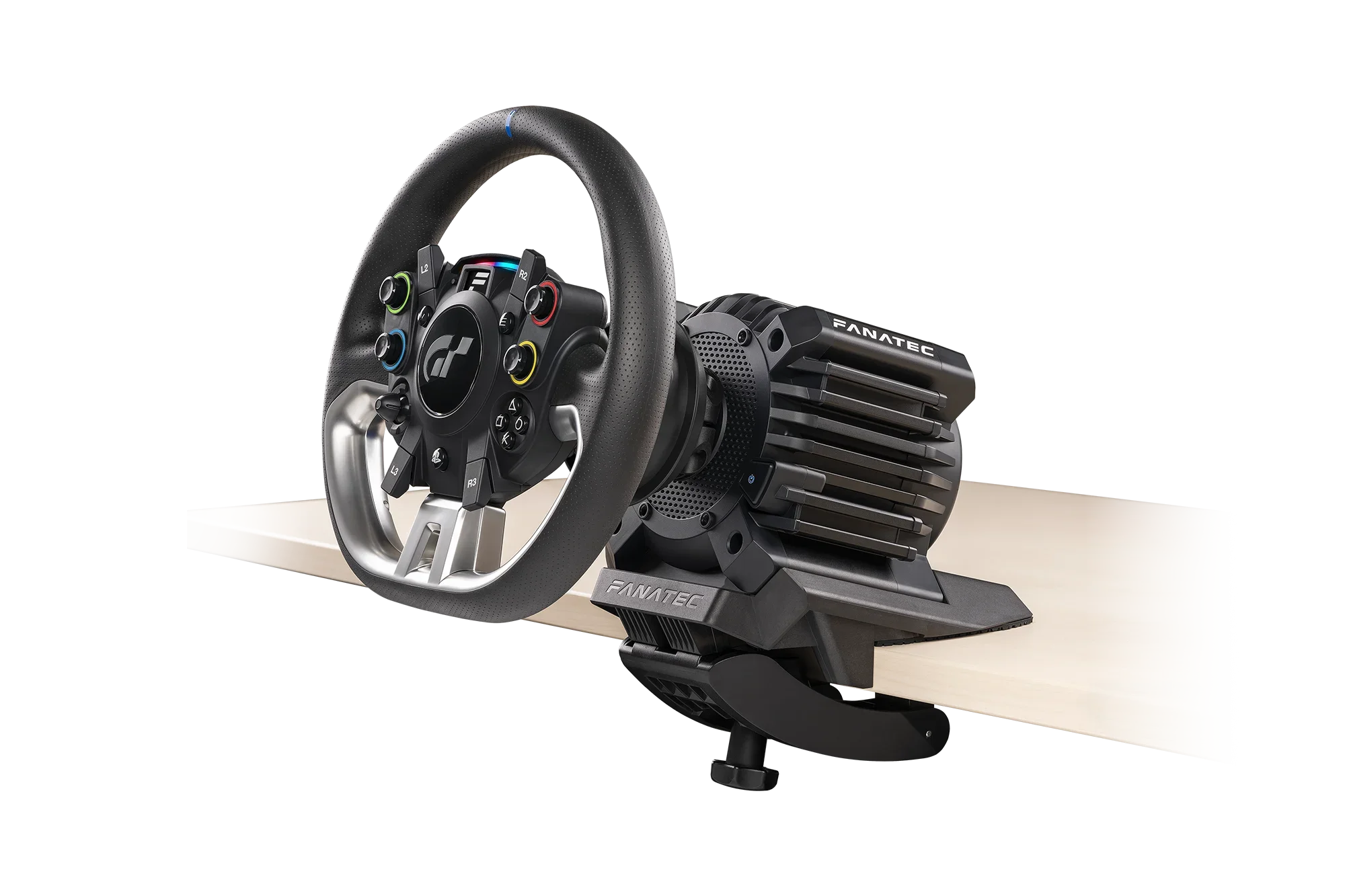

Gran Turismo DD Pro Wheel Base:
The official Direct Drive Wheel for Gran Turismo

Officially licensed for PS5® and PS4® consoles

Direct-Drive system delivers instant, detailed force feedback

Linear, consistent performance (5 Nm peak torque)

Boost Kit 180 (included) unlocks maximum strength (8 Nm peak torque)

Patented, exclusive FluxBarrier technology optimises motor efficiency and smoothness

Full Fanatec SDK support ensures compatibility out of the box for all major racing games

Standard Tuning Menu allows beginners to get started quickly without having to worry about settings

Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences

High-resolution (contactless) Hall-position-sensor, same as Podium Series

Steering axis made from carbon fibre-enhanced composite

Fanless: wheel base housing is made from aluminium (passive heat sink, core structural component) with composite end caps

Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data between steering wheel and wheel base

QR2 quick release system

Motorsport-derived quick release

Tapered shape naturally ensures a tight fit

Carbon fiber-reinforced polyamide construction

Exchangeable

T-nut rail system on sides and bottom for easily adjustable hard-mounting

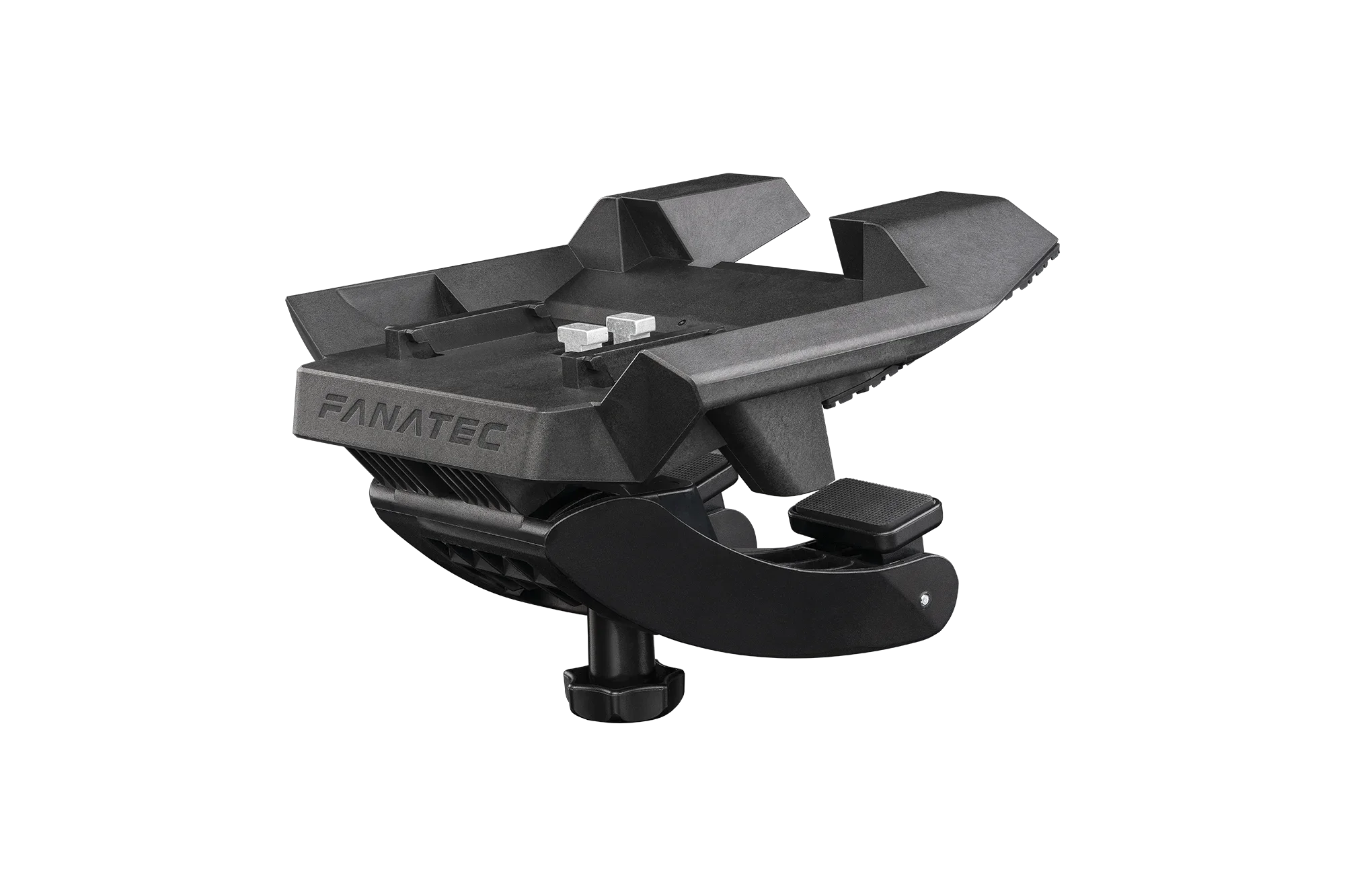

Table clamp included, supports 5 to 60 mm table thickness

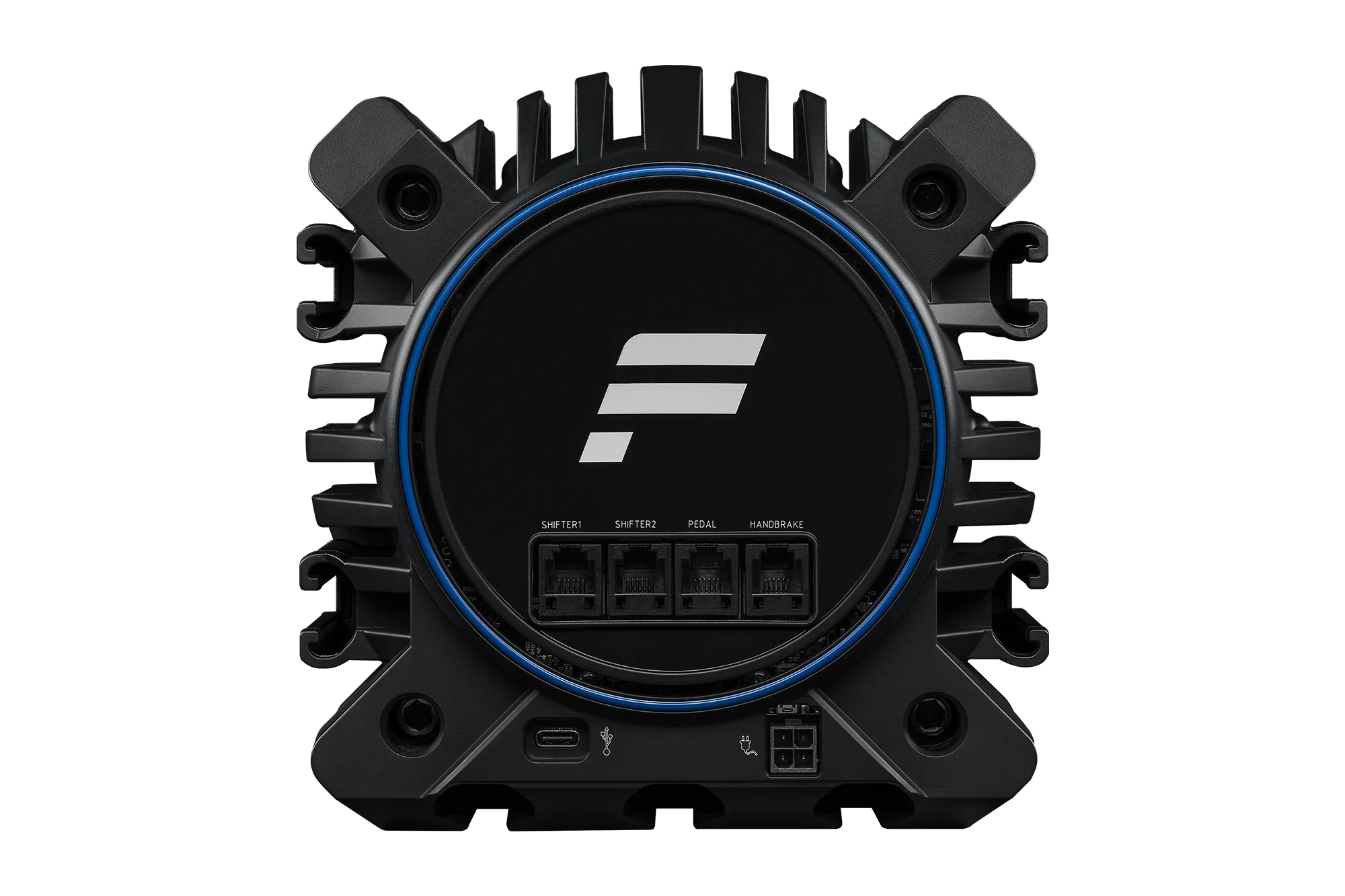

Ports:

Power supply

USB-C to console / PC

Shifter 1

Shifter 2 (Sequential only)

Pedals

Handbrake

Front-mounted threaded inserts for Fanatec accessories (e.g. ClubSport Static Shifter Paddles, available separately). Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.

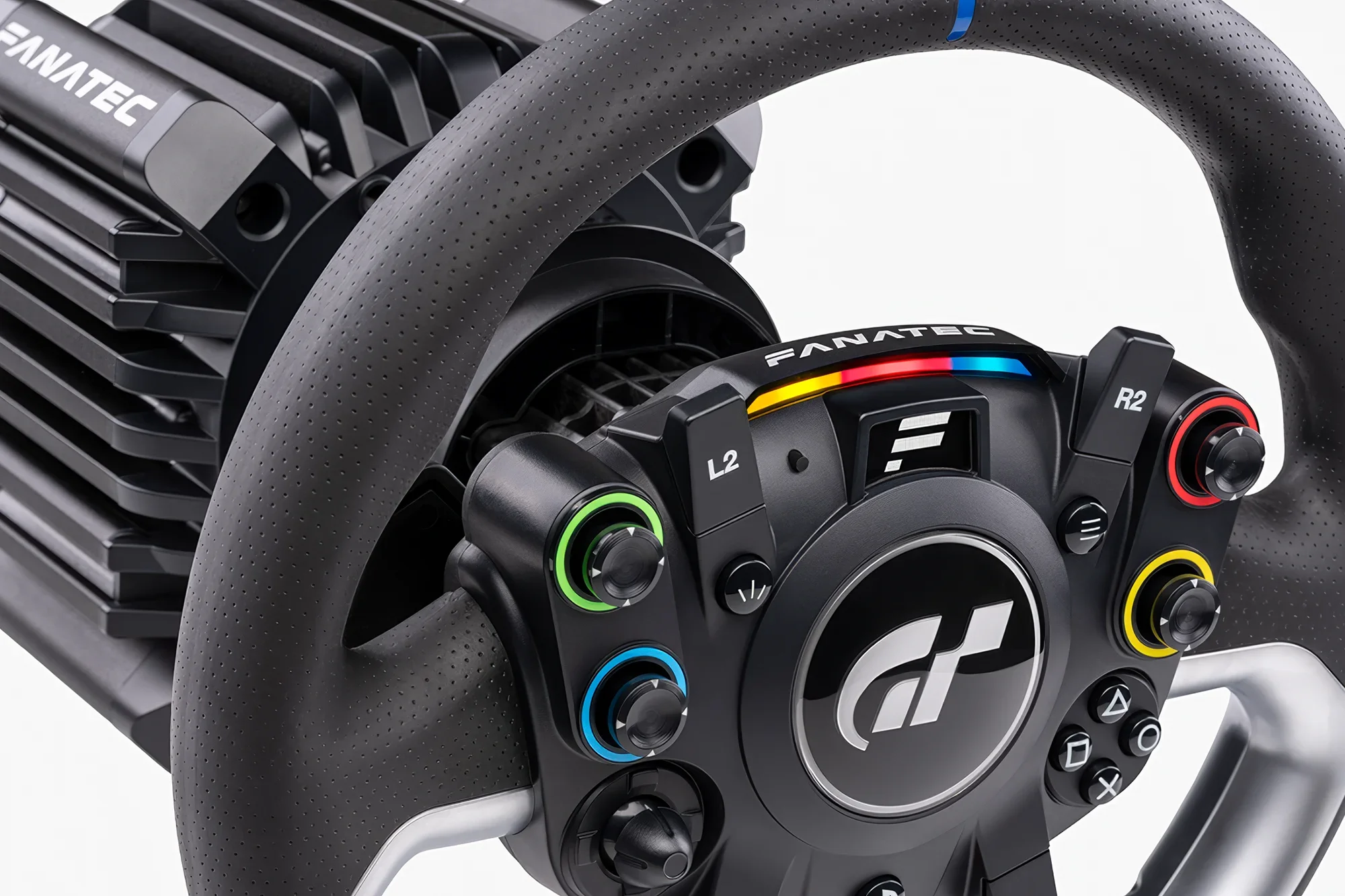

Steering wheel for Gran Turismo DD Pro:
Designed by Polyphony Digital

Tactile rubber grip with blue centre stripe

Compact 280 mm diameter and light weight for crisp response

Diffused RevLED strip (yellow, red, and blue LEDs)

White OLED display for Tuning Menu access and telemetry output (where supported)

5-way directional stick for menu navigation

Four additional 5-way directional sticks

Ergonomic shifter paddles

11 buttons optimised for the PlayStation® interface

Fiberglass-reinforced plastic construction

QR2 Lite Wheel-Side preinstalled

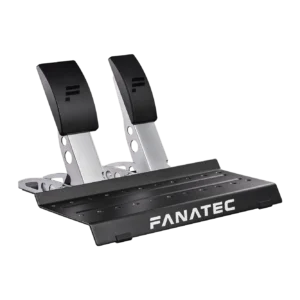

Pedals for Gran Turismo DD Pro:
Two-pedal set (throttle and brake), upgradeable to three pedals (upgrade kits sold separately)

All-metal construction (excluding pedal faces). Pedals are made from heavy steel, which helps to prevent the set from sliding on the floor (if not hard-mounted to a rig)

Optional anodised aluminium pedal plates (CSL Pedals Tuning Kit, sold separately)

Contactless Hall sensors (12-bit) on both brake and throttle for high precision and durability

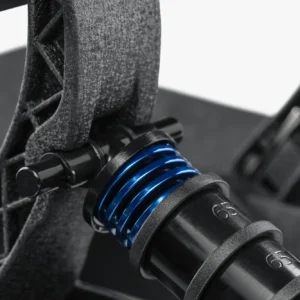

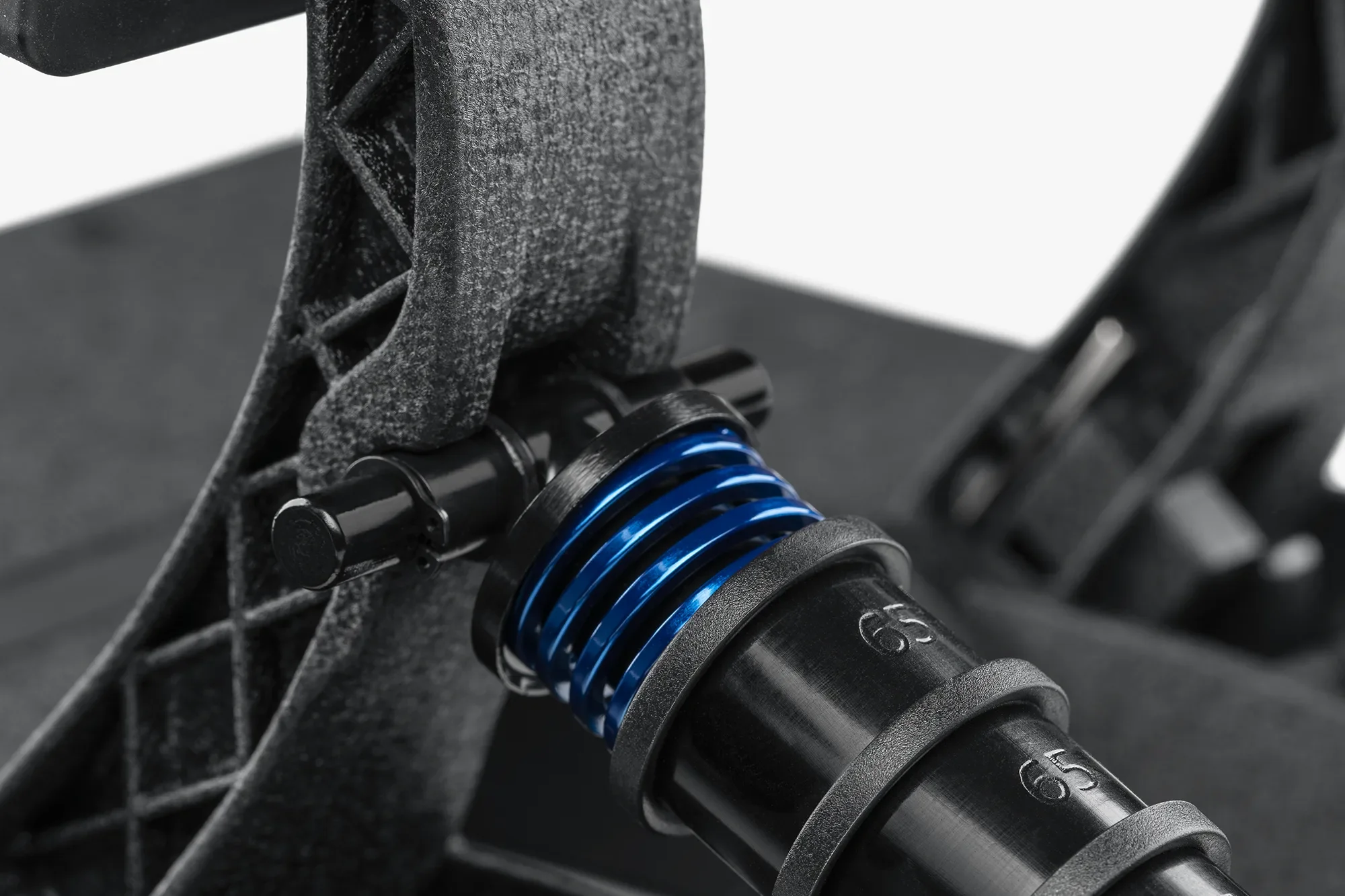

Brake pedal spring is stiffer than throttle pedal spring, PU foam damper adds additional resistance for progressive braking feel

Upgrade to a three-pedal configuration with Clutch Kit or Load Cell Kit (sold separately)

CSL Pedals Clutch Kit provides a third pedal for the lowest price

CSL Pedals Load Cell Kit also provides a third pedal, and upgrades the brake and electronics

Pedal position can be adjusted sideways along heel rest

Height-adjustable pedal faces

Modular design means inverted mounting to a rig is possible

Vertical rear plates allow pedals to be easily braced against a wall or other vertical surface

Pearl chrome plating on pedal bases and arms

Black powder coating on heel rest

Pedals connect directly to Gran Turismo DD Pro Wheel Base

Compatibility

Peripherals
The Gran Turismo DD Pro Wheel Base is compatible with:

All Fanatec Podium Steering Wheels (depending on the quick release)

All Fanatec ClubSport Steering Wheels (depending on the quick release)

All Fanatec CSL Steering Wheels (depending on the quick release)

All Fanatec Pedals (adapter cables might be required on pedals without RJ12 connection)

All Fanatec Shifters

All Fanatec Handbrakes

Boost Kit 180

All Fanatec Cockpits

CSL DD Table Clamp

ClubSport Table Clamp V2

Podium Mounting Brackets (the Gran Turismo DD Pro includes M6 T-nuts for side-mounting; the Podium Mounting Brackets require the use of M6 bolts and washers)

Please note: Compatibility with all peripherals is tested by Fanatec, but not tested nor endorsed by Sony Interactive Entertainment Inc.

Depending on the installed quick release, the steering wheel for Gran Turismo® DD Pro is compatible with:

PODIUM Wheel Base DD1 (QR1 Wheel-Side required*)

PODIUM Wheel Base DD2 (QR1 Wheel-Side required*)

PODIUM Wheel Base DD1 PS4™ (QR1 Wheel-Side required*)

ClubSport Wheel Base V2 (without four additional D-sticks)

ClubSport Wheel Base V2.5

CSL Elite Wheel Base (without four additional D-sticks)

CSL Elite Wheel Base V1.1 (without four additional D-sticks)

CSL Elite Wheel Base + – officially licensed for PS4™

CSL DD Wheel Base

Gran Turismo DD Pro Wheel Base

Note: The steering wheel for Gran Turismo DD Pro does NOT enable PlayStation® compatibility when used with a non-PlayStation-licensed wheel base. A PlayStation-licensed wheel base (such as the Gran Turismo DD Pro Wheel Base) is required for use on PS5® and PS4®.

The pedals for Gran Turismo DD Pro is compatible with:

CSR / CSR Elite Wheel Base

All CSL Elite Wheel Bases

All ClubSport Wheel Bases

All Podium Wheel Bases

GT DD Pro Wheel Base

CSL DD Wheel Base

Please refer to the Gran Turismo DD Pro manual for full pedal compatibility information.

Platforms
This product is compatible with all PS5® and PS4® consoles.

This product is compatible with PC on all major racing games.

Other platforms: Compatibility with other platforms depends on the used steering wheel. For more information, please check the product page of the steering wheel you plan to use.

Please note: PC and other platform compatibility is tested by Fanatec, but not tested nor endorsed by Sony Interactive Entertainment Inc.
