Bring Hydraulic or Load-Cell to Your Pedals
Want to take your racing experience even further?
Move to a hydraulic or load cell brake system, which both are optional upgrades for the Initium Pedal Set.
Upgrade when you’re ready – if you’re ready.
GENERAL INFORMATION
SPECIFICATIONS

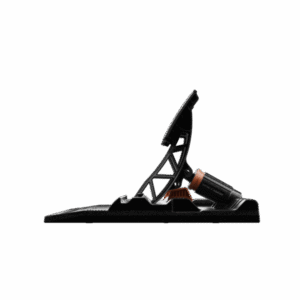

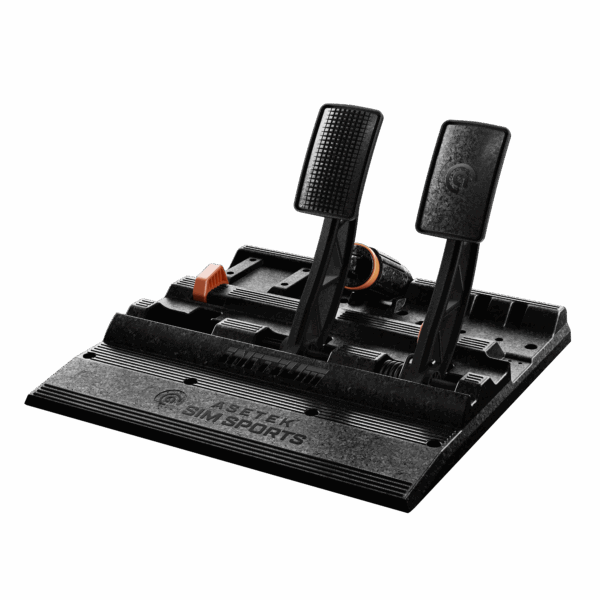

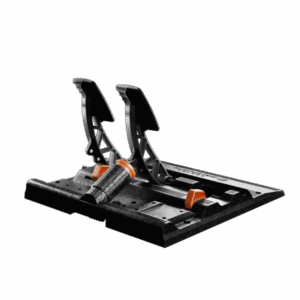

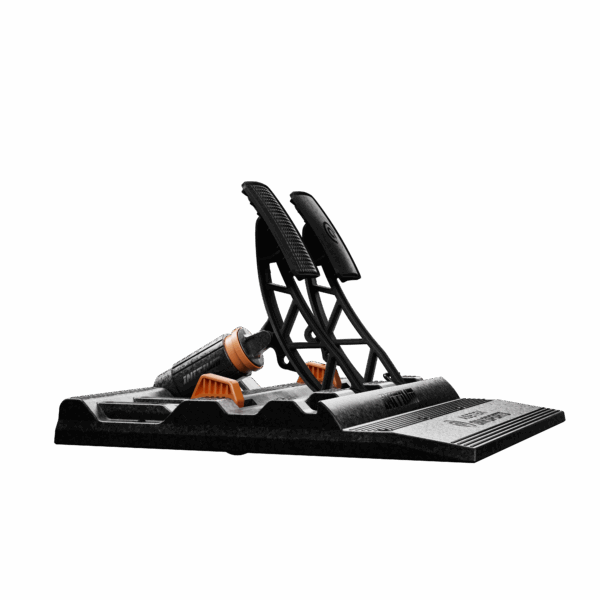

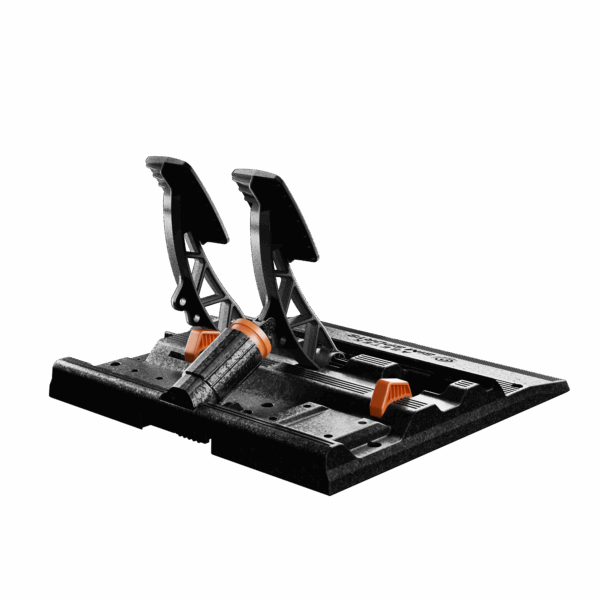

Key Features
- Brake and throttle
- Two mounting modes: Floor Mode & Cockpit Mode
- PC compatible
- Upgradeable to Hydraulic or Load Cell Brake system (Sold separately)
- Auto and manual calibration options via RaceHub
Materials & Build Quality
- Chassis Material: Glassfiber-reinforced composite
- Throttle: Hall effect sensor
- Brake: 2-stage spring-loaded, hall effect sensor (upgradeable)
- Pedal angle options: 2 positions (Floor Mode & Cockpit Mode)
- Dimensions: 370 × 363 × 253 mm
- Weight: 2.66 kg
Software & Adjustability
- Software: RaceHub
- Manual calibration via RaceHub
- Auto calibration supported
- Deadzone adjustment: Yes
- Custom pedal maps: Yes
Connectivity
- USB Type-C connection
- Supports USB or CAN bus communication
Mounting & Installation
- Mounting Schematics
Packaging
- Packaging Dimensions: 446 x 400 x 283 mm
- Weight with Packaging: 3.85 kg
BOX CONTENTS

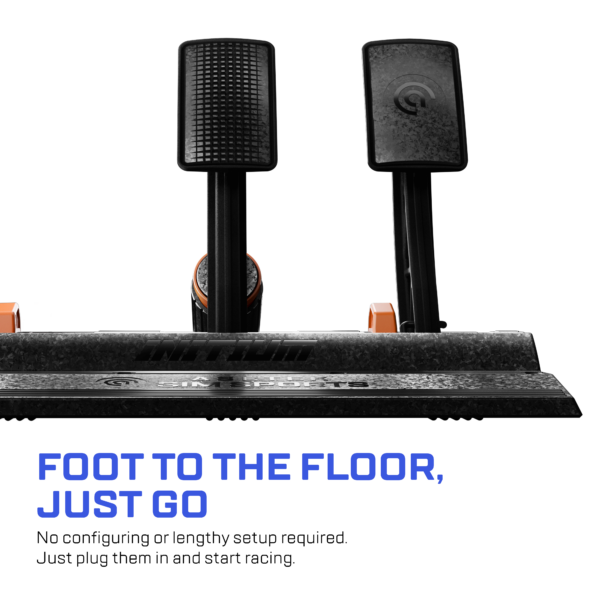

- 1 x Initium Pedal Set
- 1 x Hard Brake Spring
- 1 x 2,5 mm Allen Key
- 1 x USB-C to USB-C Cable
