The MOTION-LOCK Switch (QS-SBML-1) is a hardware switch that, when connected to the device’s MOTION-LOCK Sub-System, allows the user to instantly stop the operation of all connected devices. It is included as standard equipment with all motion platforms and is available as an optional accessory for cases where additional user control is desired.

Category: Accessories

Description
Reviews (0)

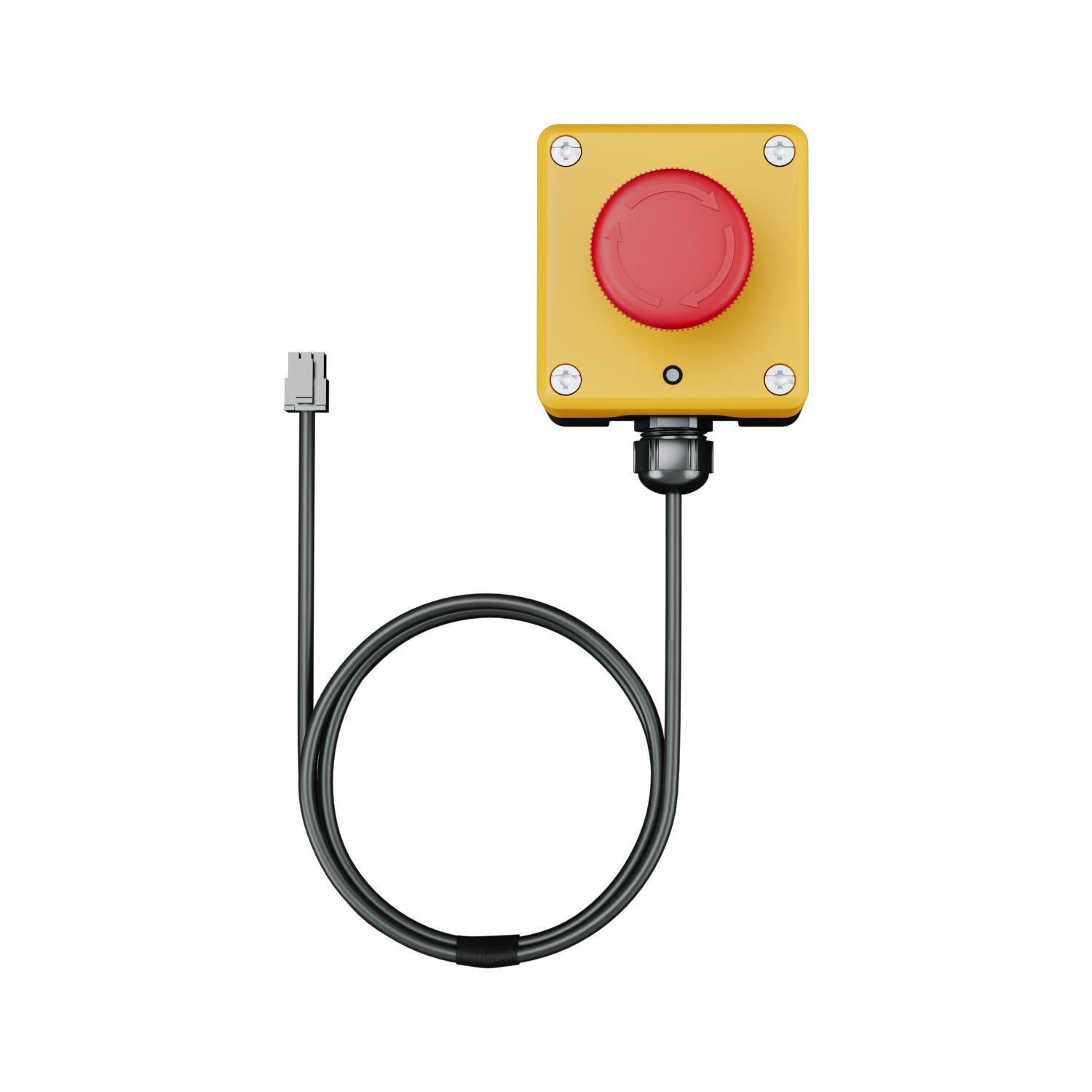

MOTION-LOCK Switch

The MOTION-LOCK Switch is a dual-state button that is easy to engage but difficult to release accidentally. It is built on professional-grade components (IEC 60947-5-1, VDE 0660) that ensure longevity, ease of operation, and reliability. The switch is the only component of the MOTION-LOCK Sub-System that the user interacts with.

The MOTION-LOCK Sub-System itself is an advanced dual-channel module that utilizes a combination of hardware and software, not only to cease device operation at the user’s request but also to constantly monitor the state of the MOTION-LOCK wiring to detect any unconnected, damaged, or incorrectly connected wires

Comprehensive Device Control

Depending on application-specific requirements, the MOTION-LOCK Sub-System allows multiple compatible devices to be connected together in a single chain and controlled by a single MOTION-LOCK Switch. The connection utilizes an up-link/down-link approach, which allows virtually unlimited devices to be connected without compromising the performance and reliability of the MOTION-LOCK Sub-System.

Alternatively, independent circuits can be created, enabling the motion platform, QS-DD-20, and QS-BT1 to be stopped fully independently. This approach allows a sim-racer to quickly control which components should be enabled during each racing session.

Quality craftsmanship: The MOTION-LOCK Switch uses professional grade components, that comply with the requirements of IEC 60947-5-1, VDE 0660, which ensures its long-term durability and reliable operation.
Reliability: The switch is equipped with two independent electric contacts. If one of them fails, the other immediately stops the controlled device. Failure of the contact is then detected and reported by the MOTION-LOCK Sub-System.
Responsiveness: The MOTION-LOCK Switch responds immediately when pressed, which is crucial in situations that require the device to stop quickly. An integrated LED indicates the current status: when the device is in motion, the LED flashes, and when stopped, it lights up with a steady light, allowing easy monitoring of the device’s status.
Full integration with Qubic System: The MOTION-LOCK Switch is fully compatible with all Qubic System devices equipped in MOTION-LOCK Sub-System, allowing for seamless integration and management of the entire system from one location.
Manual testing before shipping: Each unit of MOTION-LOCK Switch undergoes extensive testing by our team before shipment to ensure it is fully functional and ready for use.

HOW DOES THE MOTION-LOCK WORK?

MORE THAN JUST A SWITCH
The primary function of the MOTION-LOCK Sub-System is to stop the motion platform (and other devices) upon request. This is done immediately and independently from the software and cannot be overridden in any way. The switch can be used at any moment to instantly stop any motion, provided that the wires are not damaged.

If the wires are damaged (e.g., shorted), the switch will not be able to create an open circuit, and the system will not stop. To address this potentially unsafe condition, the MOTION-LOCK Sub-System includes industrial-grade diagnostic capabilities as a secondary function, offered in a compact and affordable form. Similar to safety relays, the MOTION-LOCK Sub-System continuously sends diagnostic test pulses through the circuit to detect faults and cease operation if an error is detected.

FAULTY WIRES DETECTION
How does it work? Well, two independent channels are monitored to check for any anomalies that may affect the MOTION-LOCK Sub-System performance. If a problem arises, the system will act by stopping the devices. There are the following typical cases:
1. Operating
2. One Wire Broken
3. Wires Swapped
4. Wires Shorted
Cases 2 and 4 are the most common issues that might occur even during normal operation if MOTION-LOCK cables are not secured correctly and in the results they get damaged by moving parts, e.g. cockpit or actuator’s foot.

UNLIMITED DEVICES

What happens when the MOTION-LOCK Switch is pressed? Well, it deactivates the first device directly, which then opens its virtual switch and deactivates the next device in a daisy chain. This is done purely by the hardware, without software involved.

Additionally, each device monitors its part of the MOTION-LOCK circuit and reports faults to the motion controller. If the circuit is compromised at any stage, the motion controller programmatically ceases the system operation. This creates a self-monitoring network of virtually unlimited number of devices, where the system can immediately detect any irregularities and take appropriate actions.

Conclusion

The MOTION-LOCK Sub-System is more than just a simple stop-on-press system. Besides offering instantaneous stopping of all connected devices, it also performs real-time wiring monitoring to ensure that the stop function will work correctly when it is truly needed.
